| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_012T01_9000006512_54139cztM0_level2.fits | modeM0/AS1A14_012T01_9000006512_54139cztM0_level2_quad_clean.evt |
| Size (bytes) | 716,446,080 | 83,292,480 |
| Size | 683.3 MB | 79.4 MB |
| Events in quadrant A | 3,523,052 | 634,770 |
| Events in quadrant B | 6,457,533 | 564,398 |
| Events in quadrant C | 3,184,721 | 603,393 |
| Events in quadrant D | 12,850,693 | 265,727 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14627 | 1 |
| B | 0 | 23577 | 1 |
| C | 0 | 14394 | 1 |
| D | 0 | 42664 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6500 | 154 | 2.369231% |
| B | 6500 | 1288 | 19.815385% |
| C | 6500 | 94 | 1.446154% |
| D | 6500 | 3848 | 59.200000% |

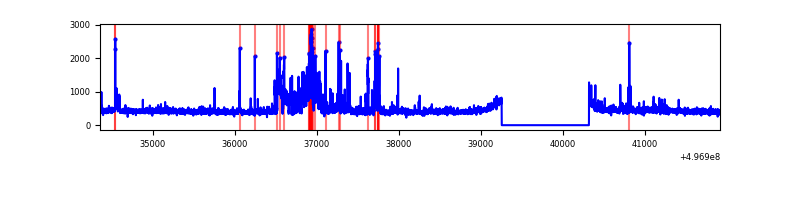

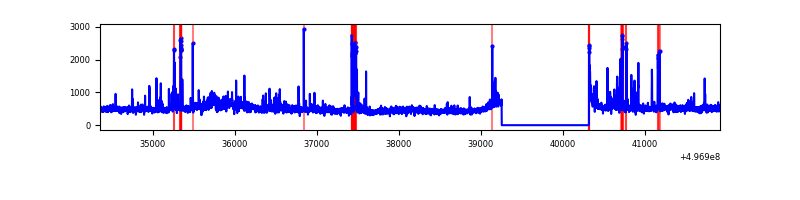

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7565 | 6500 | 54 | 54 | 0.71% | 0.83% |  |
| B | 7565 | 6500 | 1015 | 1015 | 13.42% | 15.62% |  |
| C | 7565 | 6500 | 39 | 39 | 0.52% | 0.60% |  |
| D | 7565 | 6500 | 3756 | 3756 | 49.65% | 57.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 294987 | 1709.22 | 693 | 674 | 172.2 |
| A | 15 | 174 | 209298 | 1211.58 | 693 | 674 | 172.2 |
| A | 4 | 3 | 169895 | 982.75 | 693 | 674 | 172.2 |
| B | 5 | 236 | 1883796 | 13787.42 | 643 | 618 | 136.6 |
| B | 5 | 185 | 1209637 | 8851.66 | 643 | 618 | 136.6 |
| B | 15 | 20 | 248784 | 1816.91 | 643 | 618 | 136.6 |
| C | 3 | 242 | 226820 | 1217.63 | 677 | 669 | 185.7 |
| C | 13 | 3 | 153891 | 824.97 | 677 | 669 | 185.7 |
| C | 12 | 250 | 37849 | 200.18 | 677 | 669 | 185.7 |
| D | 8 | 176 | 7621203 | 55807.46 | 482 | 460 | 136.6 |
| D | 2 | 172 | 1211027 | 8865.1 | 482 | 460 | 136.6 |
| D | 2 | 62 | 1164341 | 8523.22 | 482 | 460 | 136.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

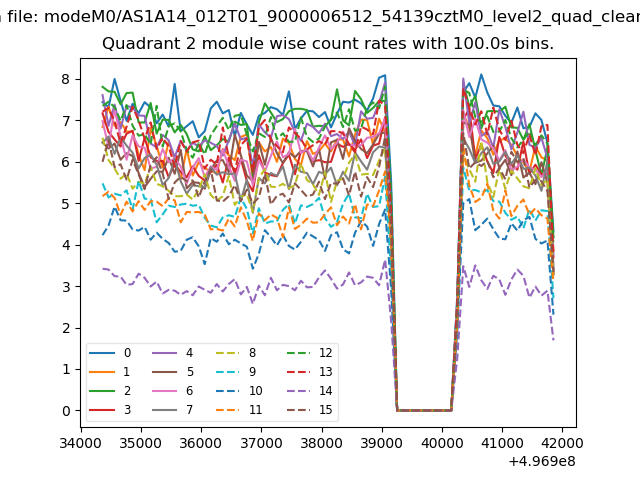

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

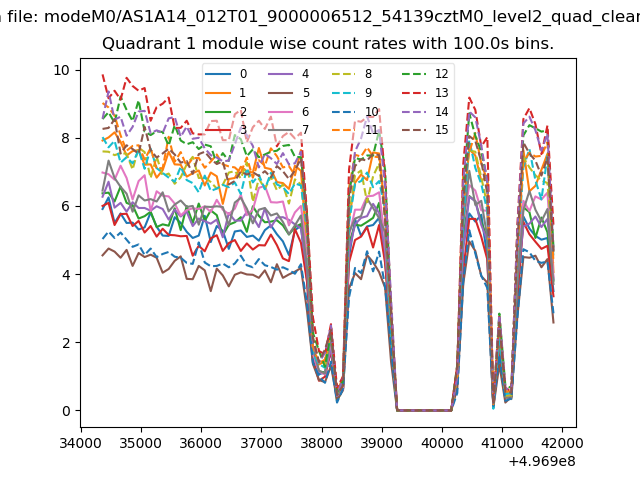

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

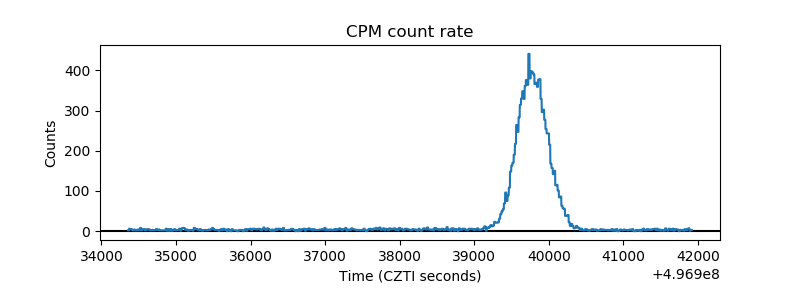

| _CPM_Rate |  |

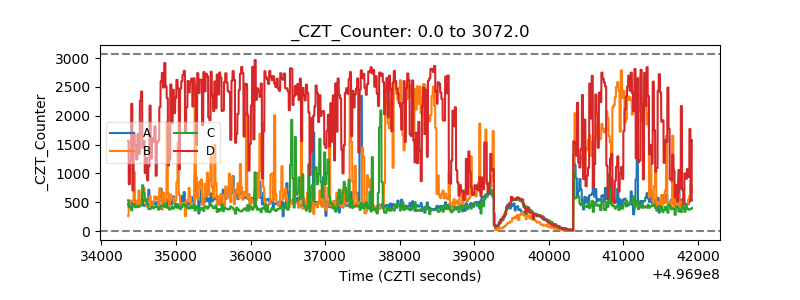

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

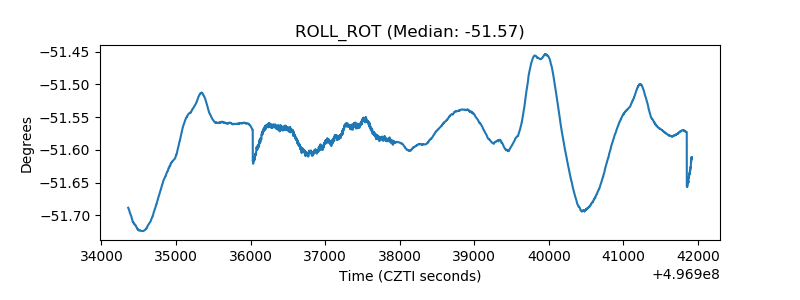

| _ROLL_ROT |  |
| _Roll_DEC |  |

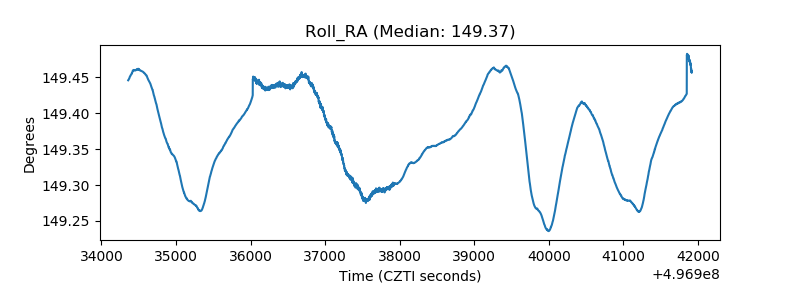

| _Roll_RA |  |
| Veto Counter |  |
