| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_012T01_9000006512_54148cztM0_level2.fits | modeM0/AS1A14_012T01_9000006512_54148cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,270,720 | 91,480,320 |
| Size | 498.1 MB | 87.2 MB |
| Events in quadrant A | 3,900,316 | 607,639 |
| Events in quadrant B | 4,559,398 | 625,575 |
| Events in quadrant C | 2,873,506 | 603,641 |
| Events in quadrant D | 7,478,108 | 465,352 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16514 | 1 |
| B | 0 | 18363 | 1 |
| C | 0 | 14036 | 1 |
| D | 0 | 26987 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6706 | 235 | 3.504324% |
| B | 6706 | 499 | 7.441098% |
| C | 6706 | 52 | 0.775425% |
| D | 6706 | 1320 | 19.683865% |

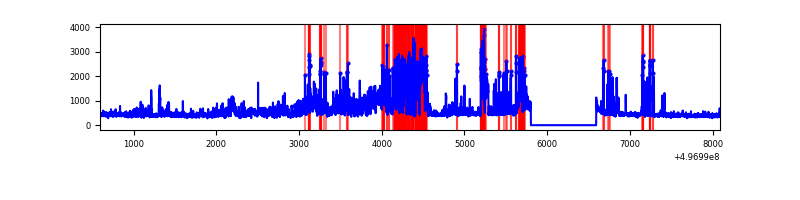

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7496 | 6706 | 182 | 182 | 2.43% | 2.71% |  |
| B | 7496 | 6706 | 326 | 326 | 4.35% | 4.86% |  |
| C | 7496 | 6706 | 34 | 34 | 0.45% | 0.51% |  |
| D | 7496 | 6706 | 1314 | 1314 | 17.53% | 19.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 738925 | 4302.43 | 687 | 669 | 171.6 |
| A | 0 | 8 | 213803 | 1242.11 | 687 | 669 | 171.6 |
| A | 3 | 130 | 120321 | 697.31 | 687 | 669 | 171.6 |
| B | 5 | 236 | 1068317 | 7487.41 | 665 | 642 | 142.6 |
| B | 15 | 20 | 492267 | 3447.68 | 665 | 642 | 142.6 |
| B | 5 | 185 | 93541 | 651.48 | 665 | 642 | 142.6 |
| C | 1 | 241 | 121542 | 651.91 | 671 | 666 | 185.4 |
| C | 12 | 252 | 45901 | 243.96 | 671 | 666 | 185.4 |
| C | 12 | 250 | 16717 | 86.57 | 671 | 666 | 185.4 |
| D | 8 | 176 | 2481265 | 14382.5 | 606 | 578 | 172.5 |
| D | 7 | 70 | 970702 | 5624.57 | 606 | 578 | 172.5 |
| D | 10 | 181 | 890958 | 5162.24 | 606 | 578 | 172.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

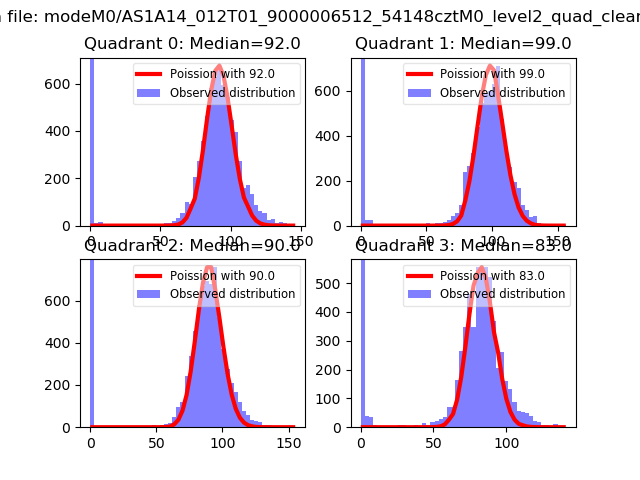

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

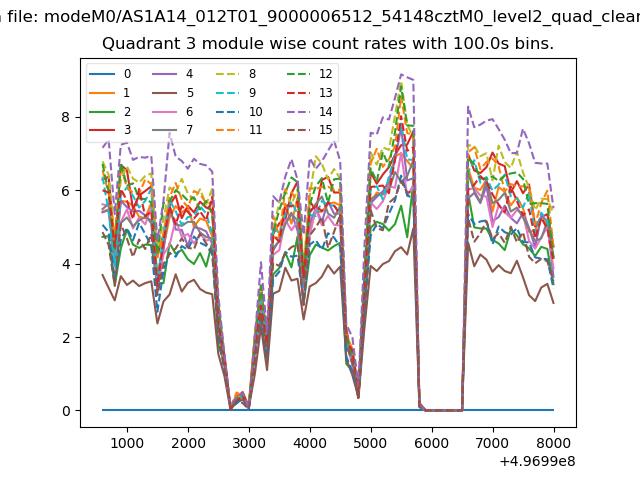

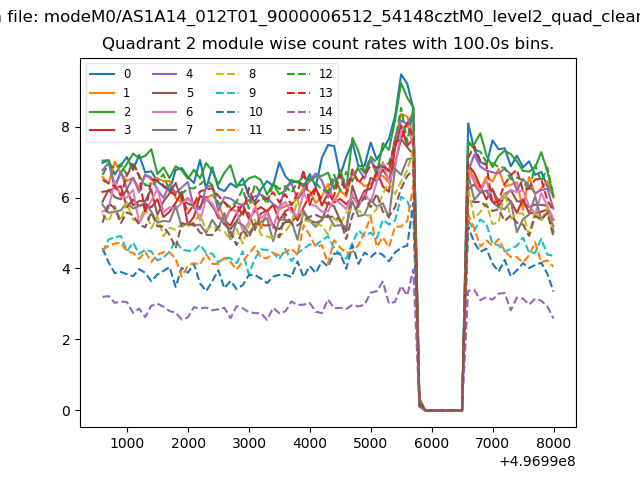

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

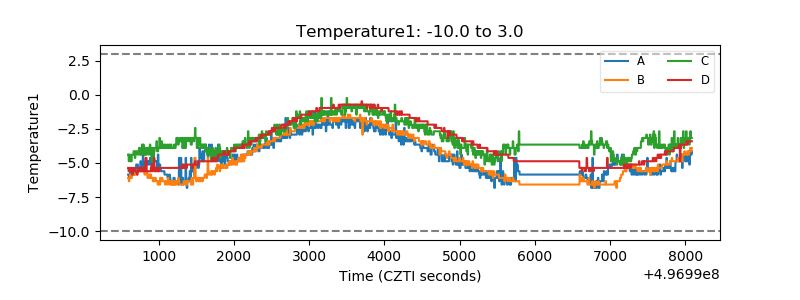

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

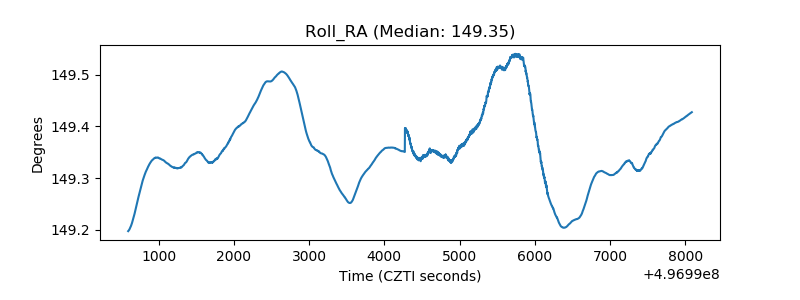

| _Roll_RA |  |
| Veto Counter |  |
