| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_012T01_9000006512_54151cztM0_level2.fits | modeM0/AS1A14_012T01_9000006512_54151cztM0_level2_quad_clean.evt |
| Size (bytes) | 411,258,240 | 88,868,160 |
| Size | 392.2 MB | 84.8 MB |
| Events in quadrant A | 3,186,710 | 591,014 |
| Events in quadrant B | 3,130,637 | 631,266 |
| Events in quadrant C | 4,014,138 | 525,593 |
| Events in quadrant D | 4,407,544 | 509,201 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14025 | 1 |
| B | 0 | 13719 | 1 |
| C | 0 | 16776 | 1 |
| D | 0 | 17454 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6220 | 156 | 2.508039% |
| B | 6220 | 174 | 2.797428% |
| C | 6221 | 536 | 8.615978% |
| D | 6221 | 354 | 5.690403% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

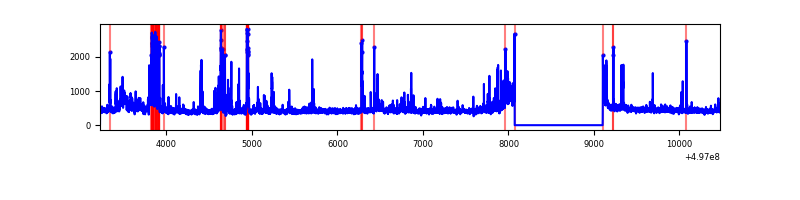

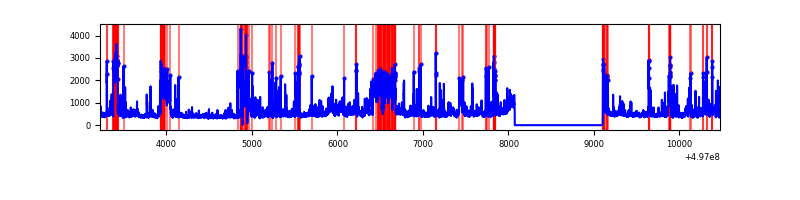

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7250 | 6221 | 76 | 76 | 1.05% | 1.22% |  |
| B | 7250 | 6221 | 74 | 74 | 1.02% | 1.19% |  |
| C | 7251 | 6222 | 515 | 515 | 7.10% | 8.28% |  |
| D | 7251 | 6222 | 246 | 246 | 3.39% | 3.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 355260 | 2188.61 | 653 | 636 | 162.0 |
| A | 4 | 249 | 127181 | 780.99 | 653 | 636 | 162.0 |
| A | 0 | 8 | 34410 | 208.44 | 653 | 636 | 162.0 |
| B | 10 | 245 | 153462 | 1122.77 | 637 | 615 | 136.1 |
| B | 5 | 236 | 102021 | 744.9 | 637 | 615 | 136.1 |
| B | 5 | 185 | 80172 | 584.4 | 637 | 615 | 136.1 |
| C | 1 | 241 | 1441159 | 8700.49 | 604 | 600 | 165.6 |
| C | 3 | 248 | 91346 | 548.08 | 604 | 600 | 165.6 |
| C | 12 | 252 | 32821 | 194.6 | 604 | 600 | 165.6 |
| D | 7 | 70 | 681247 | 3920.9 | 614 | 587 | 173.6 |
| D | 10 | 181 | 679545 | 3911.1 | 614 | 587 | 173.6 |
| D | 6 | 62 | 234074 | 1344.99 | 614 | 587 | 173.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

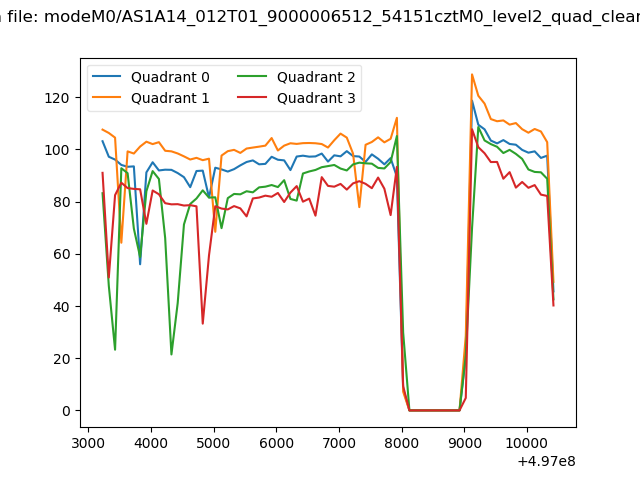

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

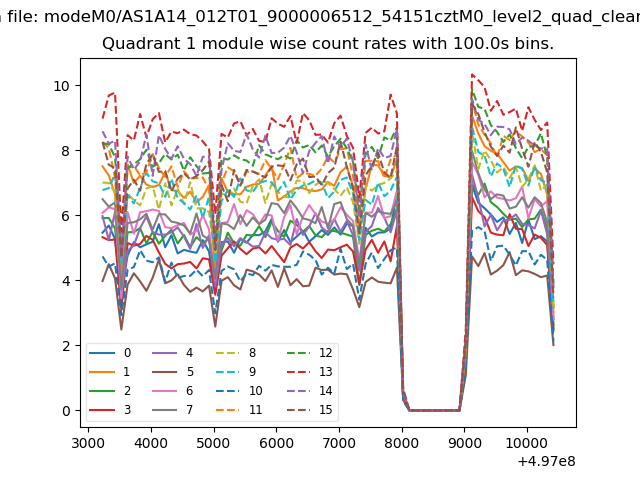

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

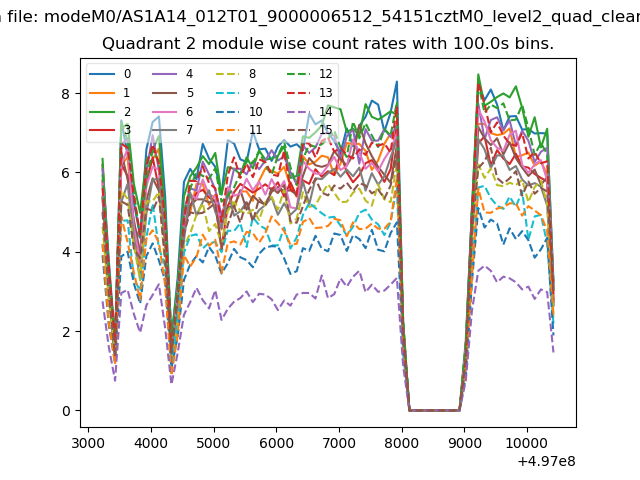

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

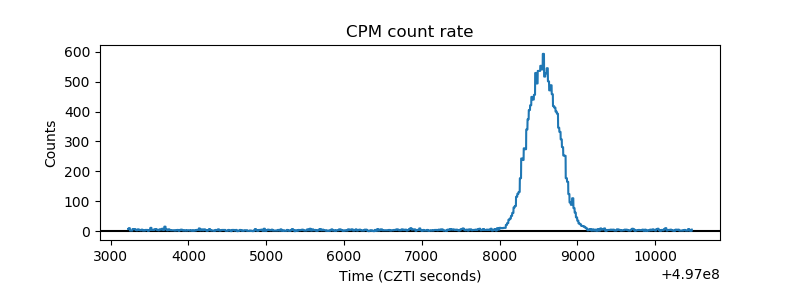

| _CPM_Rate |  |

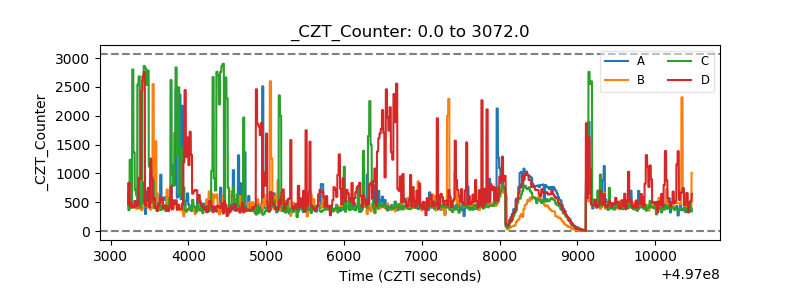

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

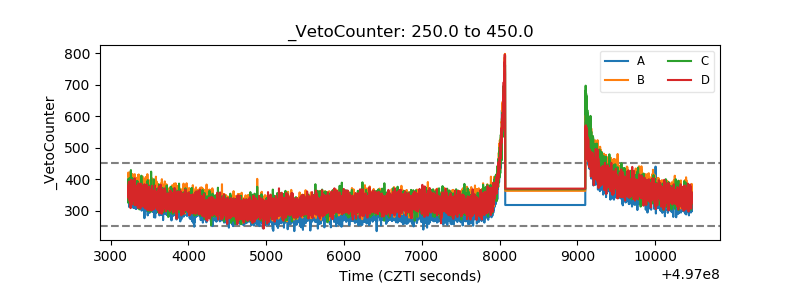

| Veto Counter |  |
