| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_012T01_9000006512_54165cztM0_level2.fits | modeM0/AS1A14_012T01_9000006512_54165cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,626,880 | 82,195,200 |
| Size | 547.1 MB | 78.4 MB |
| Events in quadrant A | 3,325,226 | 605,803 |
| Events in quadrant B | 9,003,469 | 396,243 |
| Events in quadrant C | 3,184,124 | 584,017 |
| Events in quadrant D | 5,244,686 | 475,638 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14210 | 0 |
| B | 0 | 30962 | 0 |
| C | 0 | 13820 | 0 |
| D | 0 | 19957 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6122 | 166 | 2.711532% |
| B | 6122 | 2667 | 43.564195% |
| C | 6122 | 44 | 0.718719% |
| D | 6122 | 956 | 15.615812% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

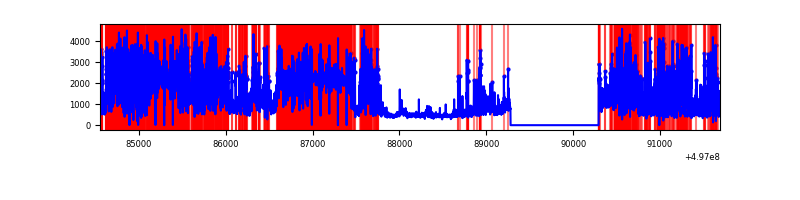

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7137 | 6123 | 121 | 121 | 1.70% | 1.98% |  |
| B | 7137 | 6121 | 1944 | 1944 | 27.24% | 31.76% |  |
| C | 7137 | 6123 | 31 | 31 | 0.43% | 0.51% |  |
| D | 7137 | 6123 | 788 | 788 | 11.04% | 12.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 29 | 307495 | 1875.38 | 644 | 626 | 163.6 |
| A | 15 | 174 | 232384 | 1416.35 | 644 | 626 | 163.6 |
| A | 3 | 14 | 134900 | 820.59 | 644 | 626 | 163.6 |
| B | 6 | 255 | 3355907 | 31669.3 | 485 | 468 | 106.0 |
| B | 5 | 172 | 2921398 | 27568.31 | 485 | 468 | 106.0 |
| B | 7 | 0 | 276604 | 2606.23 | 485 | 468 | 106.0 |
| C | 9 | 38 | 555669 | 3167.8 | 621 | 615 | 175.2 |
| C | 14 | 254 | 106974 | 607.01 | 621 | 615 | 175.2 |
| C | 15 | 177 | 33924 | 190.1 | 621 | 615 | 175.2 |
| D | 8 | 176 | 2490313 | 15131.75 | 571 | 546 | 164.5 |
| D | 13 | 84 | 271657 | 1647.7 | 571 | 546 | 164.5 |
| D | 3 | 12 | 54431 | 327.49 | 571 | 546 | 164.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

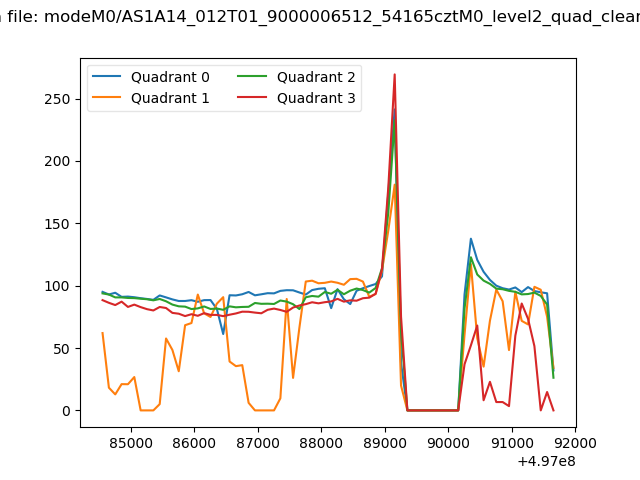

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

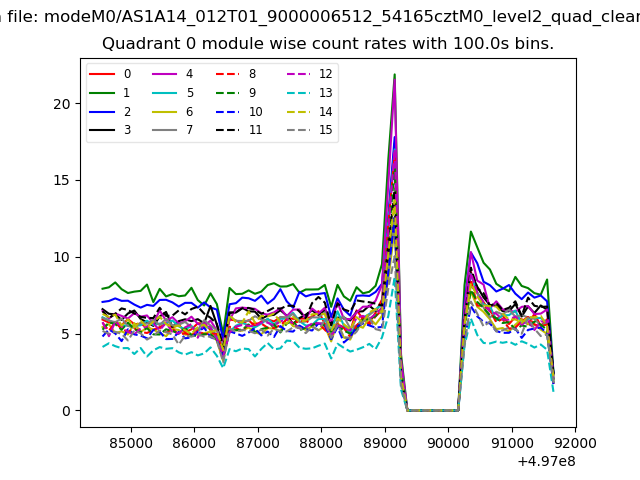

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

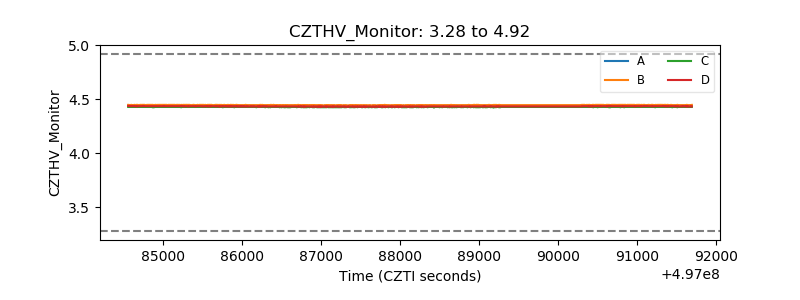

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

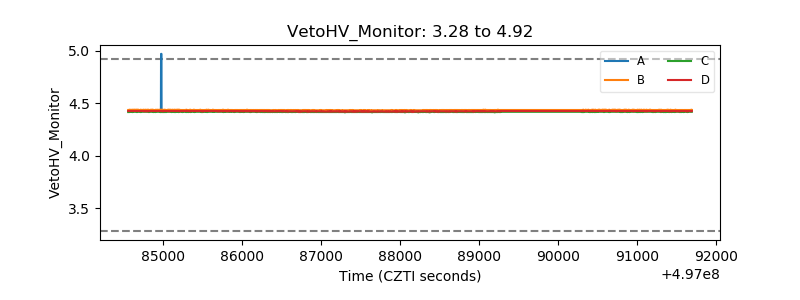

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

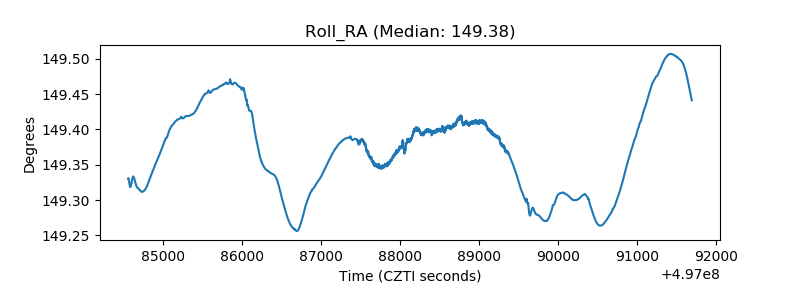

| _Roll_RA |  |

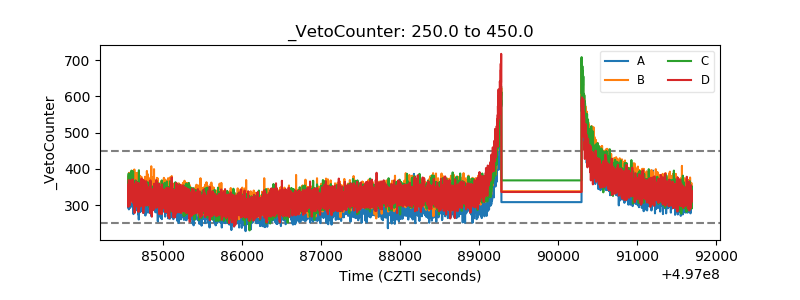

| Veto Counter |  |
