| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_012T01_9000006512_54180cztM0_level2.fits | modeM0/AS1A14_012T01_9000006512_54180cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,963,840 | 86,990,400 |
| Size | 556.0 MB | 83.0 MB |
| Events in quadrant A | 3,320,638 | 603,407 |
| Events in quadrant B | 5,365,618 | 632,094 |
| Events in quadrant C | 3,874,577 | 562,000 |
| Events in quadrant D | 8,532,640 | 399,107 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14519 | 1 |
| B | 0 | 20349 | 1 |
| C | 0 | 15876 | 1 |
| D | 0 | 29729 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6261 | 191 | 3.050631% |
| B | 6261 | 372 | 5.941543% |
| C | 6262 | 311 | 4.966464% |
| D | 6262 | 1970 | 31.459598% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7261 | 6262 | 103 | 103 | 1.42% | 1.64% |  |
| B | 7261 | 6262 | 188 | 188 | 2.59% | 3.00% |  |
| C | 7262 | 6263 | 262 | 262 | 3.61% | 4.18% |  |
| D | 7261 | 6262 | 1868 | 1868 | 25.73% | 29.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 436883 | 2621.68 | 663 | 645 | 166.4 |
| A | 7 | 29 | 203865 | 1221.3 | 663 | 645 | 166.4 |
| A | 5 | 241 | 41829 | 247.51 | 663 | 645 | 166.4 |
| B | 14 | 167 | 877762 | 6332.54 | 641 | 619 | 138.5 |
| B | 5 | 236 | 708189 | 5108.31 | 641 | 619 | 138.5 |
| B | 15 | 20 | 668239 | 4819.89 | 641 | 619 | 138.5 |
| C | 15 | 177 | 790820 | 4563.82 | 621 | 614 | 173.1 |
| C | 10 | 171 | 207868 | 1196.99 | 621 | 614 | 173.1 |
| C | 15 | 254 | 94109 | 539.98 | 621 | 614 | 173.1 |
| D | 8 | 176 | 6205134 | 40234.66 | 538 | 515 | 154.2 |
| D | 3 | 12 | 49793 | 319.55 | 538 | 515 | 154.2 |
| D | 7 | 70 | 39993 | 256.0 | 538 | 515 | 154.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

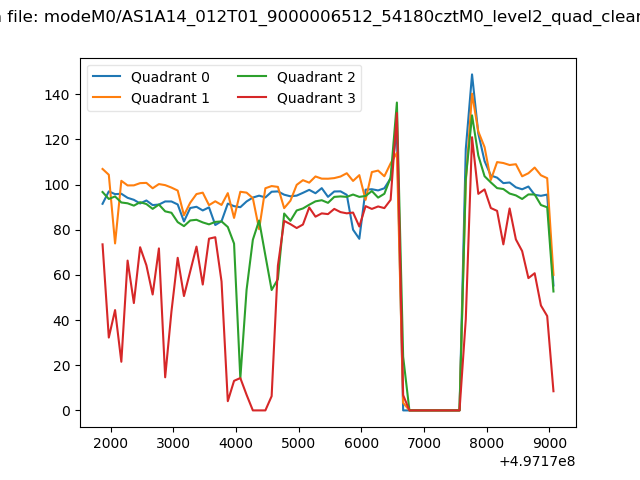

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

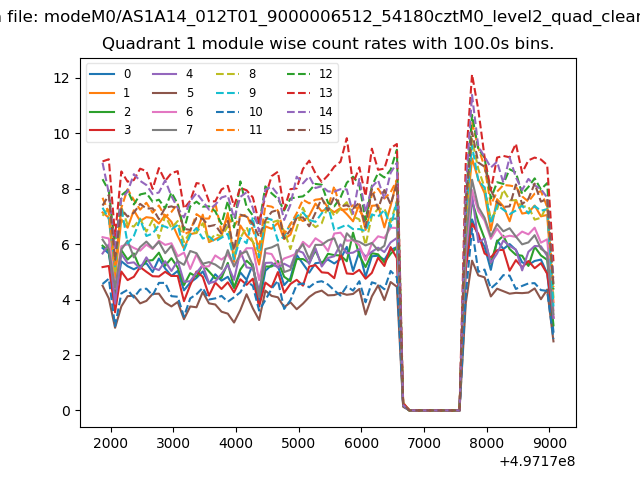

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

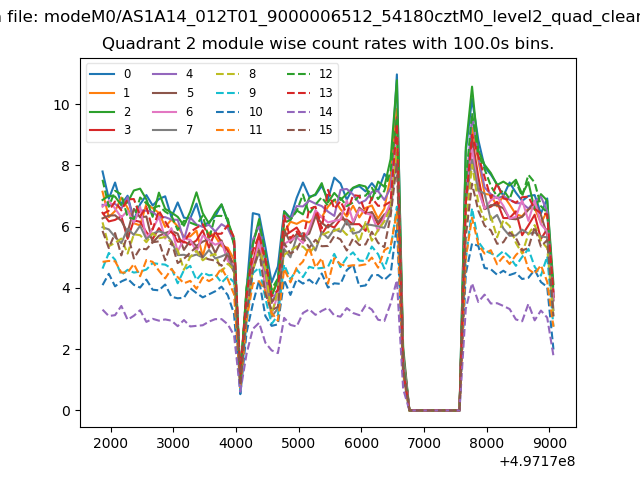

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
