| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_012T01_9000006512_54182cztM0_level2.fits | modeM0/AS1A14_012T01_9000006512_54182cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,666,880 | 88,289,280 |
| Size | 466.0 MB | 84.2 MB |
| Events in quadrant A | 3,842,158 | 558,257 |
| Events in quadrant B | 4,564,226 | 621,122 |
| Events in quadrant C | 5,648,389 | 514,042 |
| Events in quadrant D | 3,527,333 | 524,893 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15934 | 2 |
| B | 0 | 17993 | 2 |
| C | 0 | 21275 | 2 |
| D | 0 | 15323 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6522 | 269 | 4.124502% |
| B | 6522 | 392 | 6.010426% |
| C | 6522 | 813 | 12.465501% |
| D | 6522 | 247 | 3.787182% |

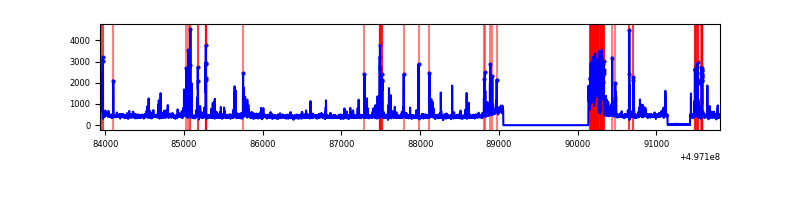

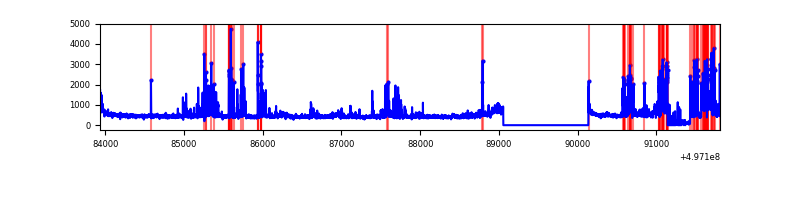

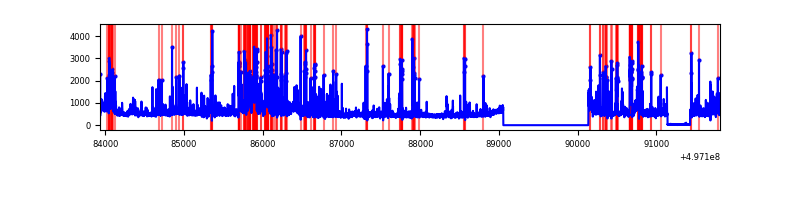

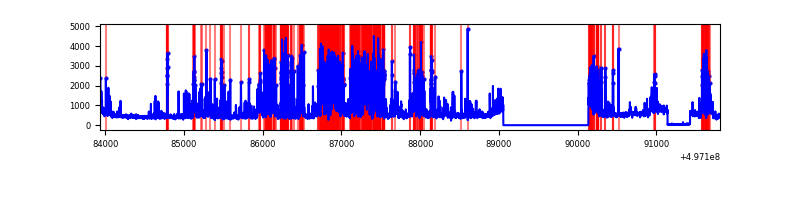

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7871 | 6678 | 117 | 117 | 1.49% | 1.75% |  |
| B | 7871 | 6791 | 236 | 236 | 3.00% | 3.48% |  |
| C | 7871 | 6792 | 631 | 631 | 8.02% | 9.29% |  |
| D | 7871 | 6792 | 150 | 150 | 1.91% | 2.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 644585 | 3697.8 | 701 | 683 | 174.1 |
| A | 7 | 29 | 200500 | 1147.51 | 701 | 683 | 174.1 |
| A | 3 | 14 | 62789 | 356.66 | 701 | 683 | 174.1 |
| B | 5 | 236 | 1029966 | 7050.75 | 684 | 659 | 146.0 |
| B | 15 | 20 | 234811 | 1603.94 | 684 | 659 | 146.0 |
| B | 14 | 167 | 150370 | 1025.52 | 684 | 659 | 146.0 |
| C | 15 | 177 | 2154043 | 12108.37 | 644 | 634 | 177.8 |
| C | 9 | 38 | 239539 | 1343.34 | 644 | 634 | 177.8 |
| C | 10 | 171 | 137478 | 769.46 | 644 | 634 | 177.8 |
| D | 8 | 176 | 435622 | 2284.8 | 676 | 646 | 190.4 |
| D | 3 | 12 | 195856 | 1025.38 | 676 | 646 | 190.4 |
| D | 5 | 173 | 44933 | 232.63 | 676 | 646 | 190.4 |

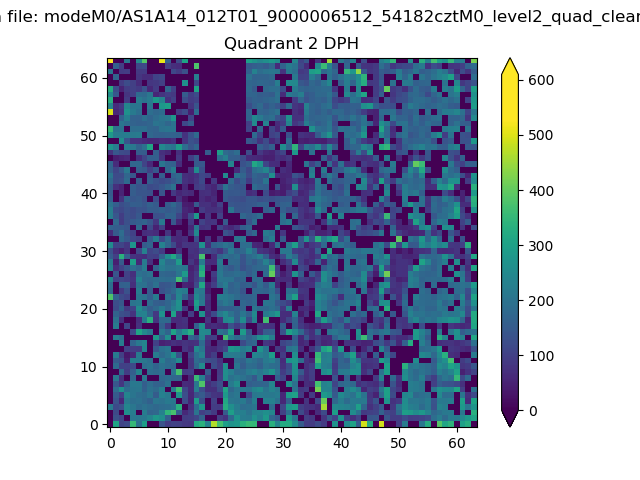

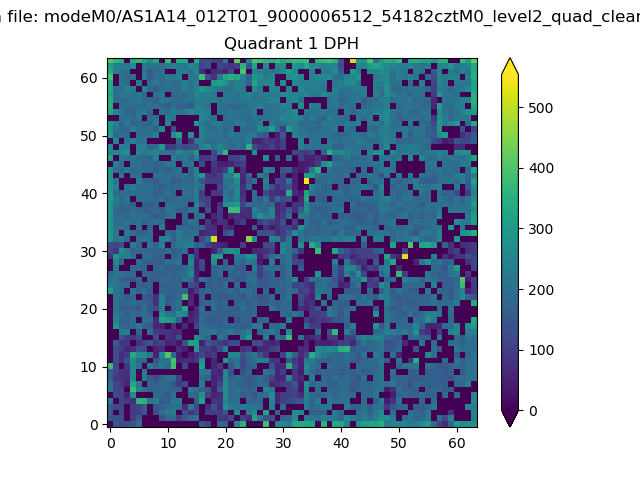

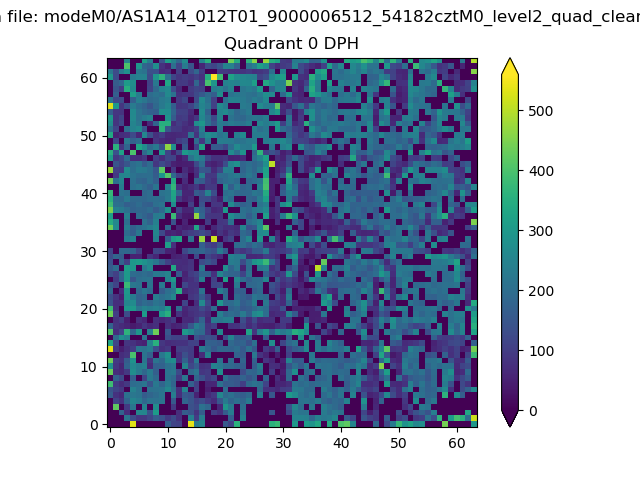

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

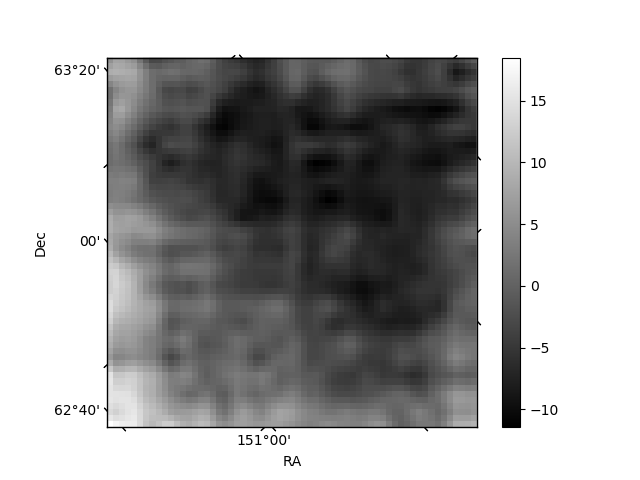

Quadrant C |

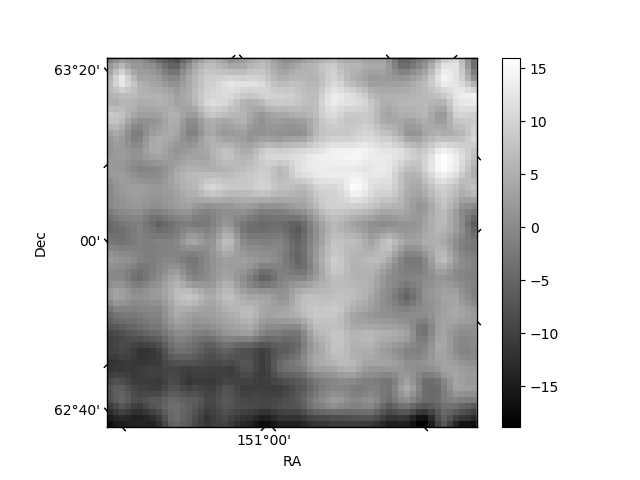

| Plot type | Count rate plots | Images |
|---|---|---|

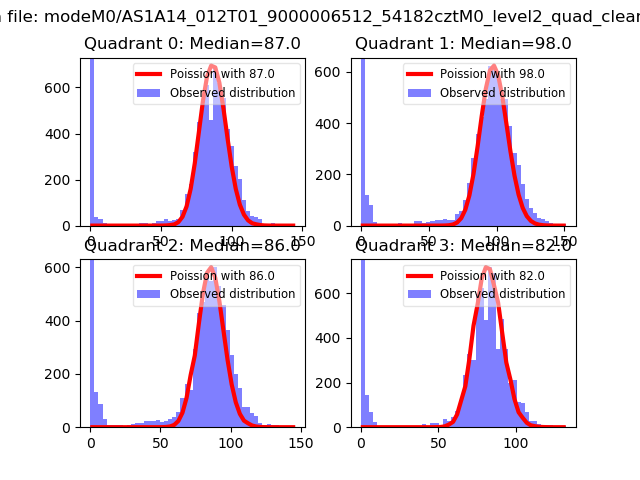

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

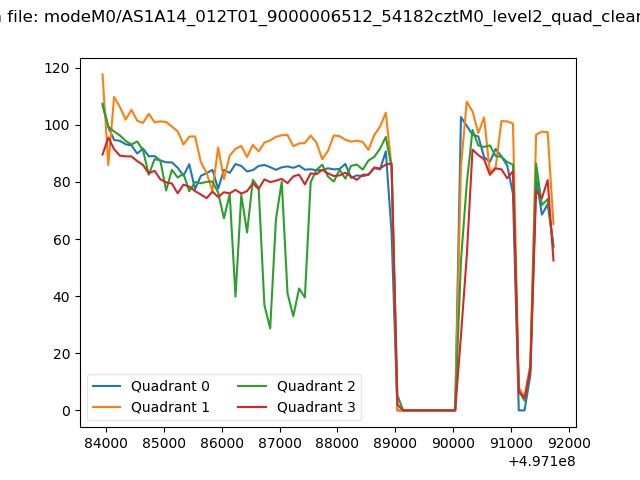

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

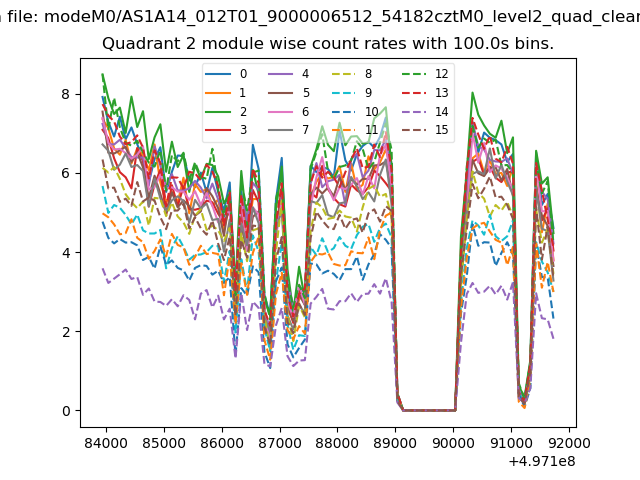

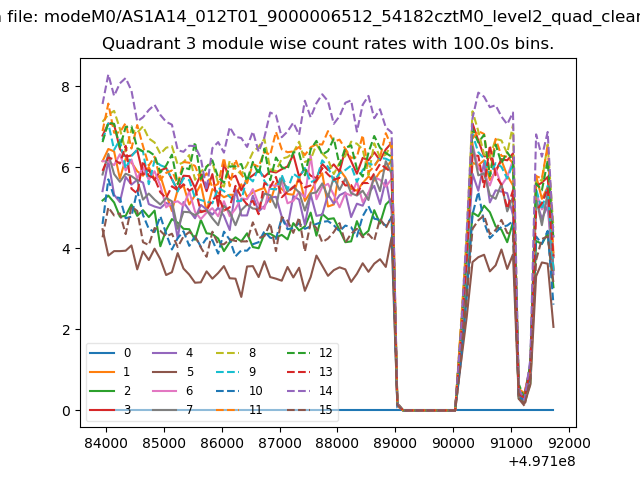

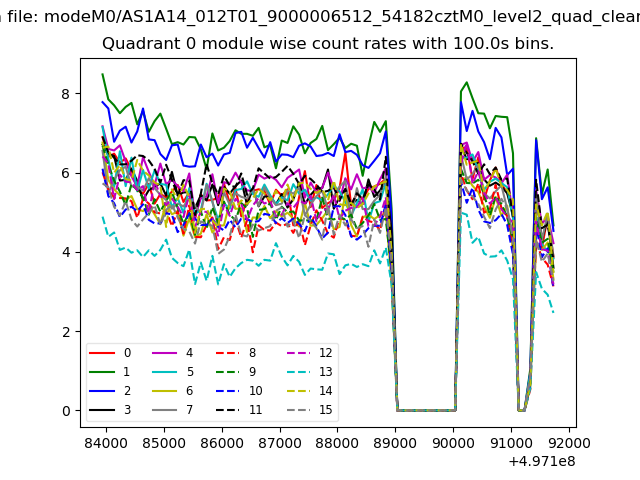

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

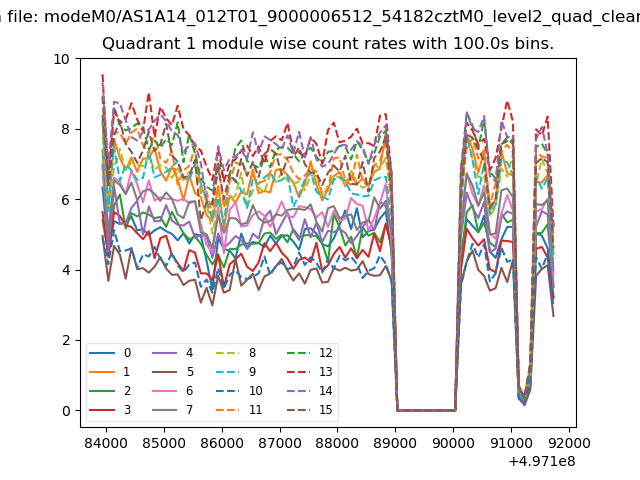

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

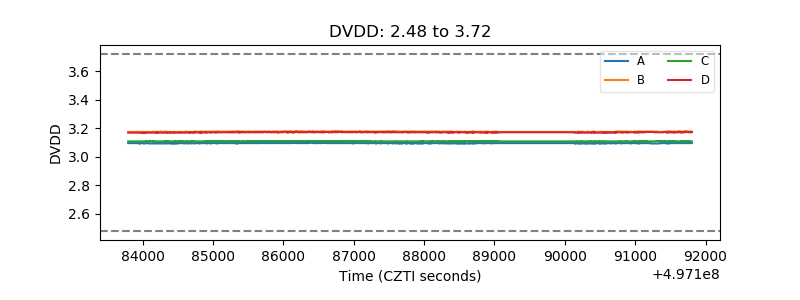

| D_VDD |  |

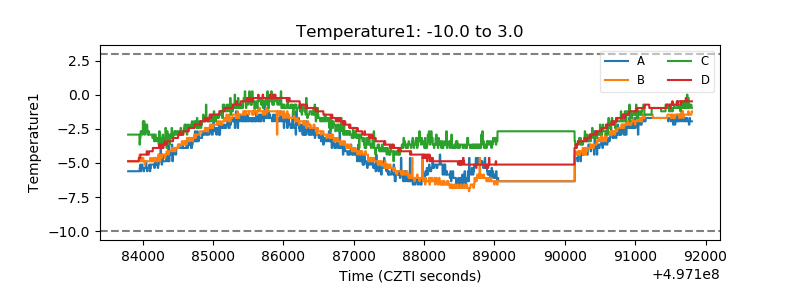

| Temperature 1 |  |

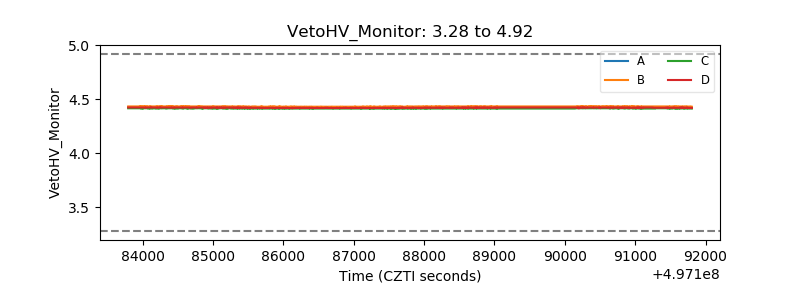

| Veto HV Monitor |  |
| Veto LLD |  |

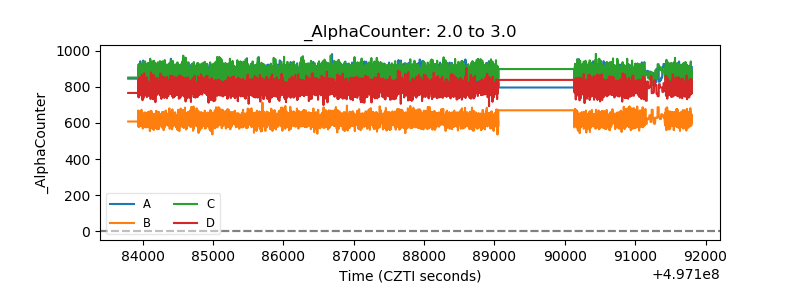

| Alpha Counter |  |

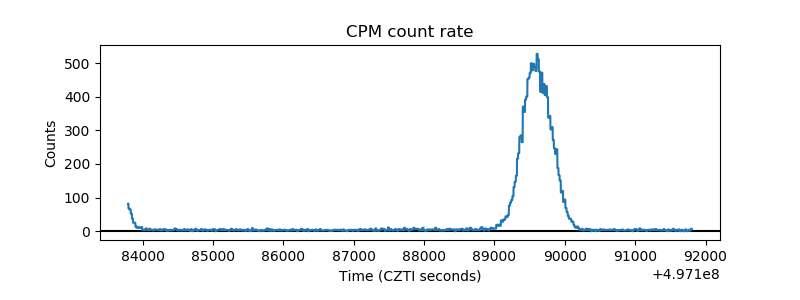

| _CPM_Rate |  |

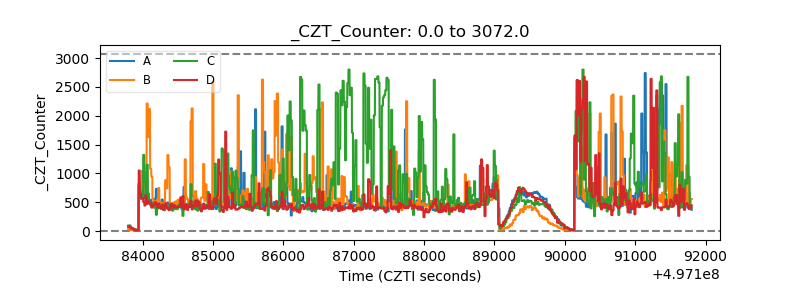

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

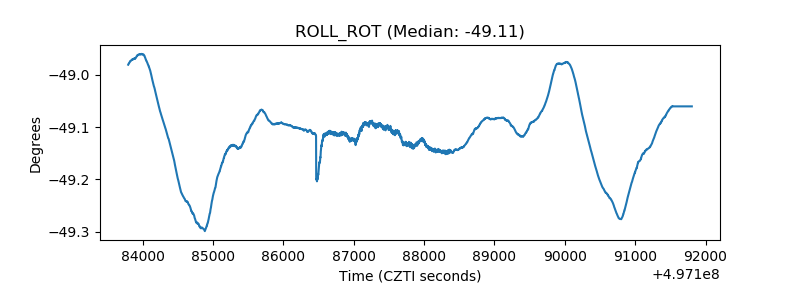

| _ROLL_ROT |  |

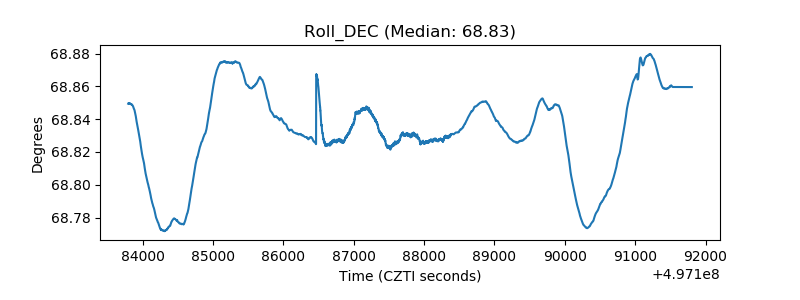

| _Roll_DEC |  |

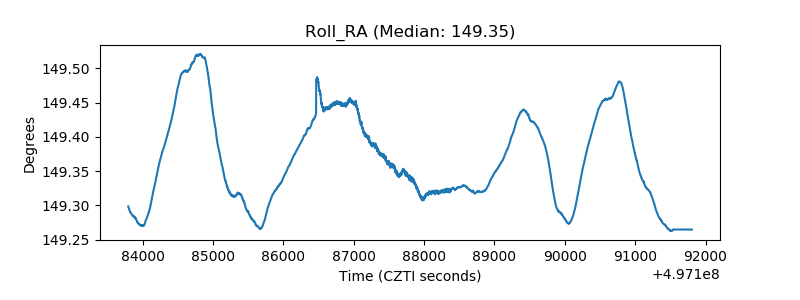

| _Roll_RA |  |

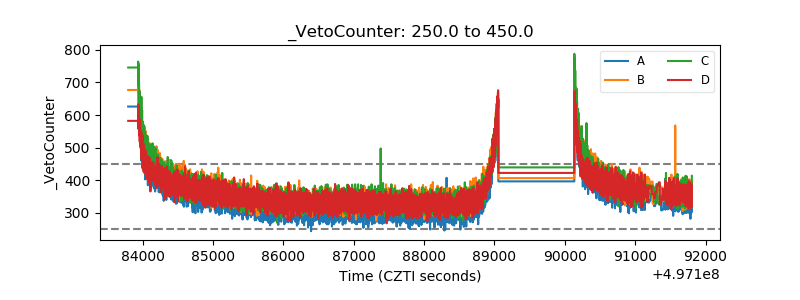

| Veto Counter |  |
