| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T08_9000006514_54196cztM0_level2.fits | modeM0/AS1C09_004T08_9000006514_54196cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,480,960 | 90,665,280 |
| Size | 472.5 MB | 86.5 MB |
| Events in quadrant A | 3,792,073 | 618,228 |
| Events in quadrant B | 3,717,494 | 677,030 |
| Events in quadrant C | 4,607,241 | 517,141 |
| Events in quadrant D | 5,738,588 | 496,341 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15339 | 1 |
| B | 0 | 15154 | 1 |
| C | 0 | 18251 | 1 |
| D | 0 | 21368 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6252 | 196 | 3.134997% |
| B | 6252 | 104 | 1.663468% |
| C | 6253 | 781 | 12.490005% |
| D | 6252 | 799 | 12.779910% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7367 | 6252 | 125 | 125 | 1.70% | 2.00% |  |
| B | 7367 | 6252 | 37 | 37 | 0.50% | 0.59% |  |
| C | 7368 | 6253 | 733 | 733 | 9.95% | 11.72% |  |
| D | 7366 | 6252 | 751 | 751 | 10.20% | 12.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 430541 | 2618.01 | 672 | 658 | 164.2 |
| A | 11 | 3 | 330666 | 2009.77 | 672 | 658 | 164.2 |
| A | 0 | 8 | 102139 | 618.02 | 672 | 658 | 164.2 |
| B | 15 | 20 | 543285 | 3858.14 | 664 | 643 | 140.6 |
| B | 4 | 171 | 201135 | 1425.48 | 664 | 643 | 140.6 |
| B | 5 | 185 | 108289 | 765.35 | 664 | 643 | 140.6 |
| C | 15 | 215 | 1240616 | 7389.54 | 612 | 606 | 167.8 |
| C | 15 | 216 | 481239 | 2864.22 | 612 | 606 | 167.8 |
| C | 14 | 254 | 135570 | 804.29 | 612 | 606 | 167.8 |
| D | 8 | 176 | 2971224 | 16991.54 | 617 | 588 | 174.8 |
| D | 3 | 12 | 119040 | 677.53 | 617 | 588 | 174.8 |
| D | 3 | 144 | 47865 | 270.42 | 617 | 588 | 174.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

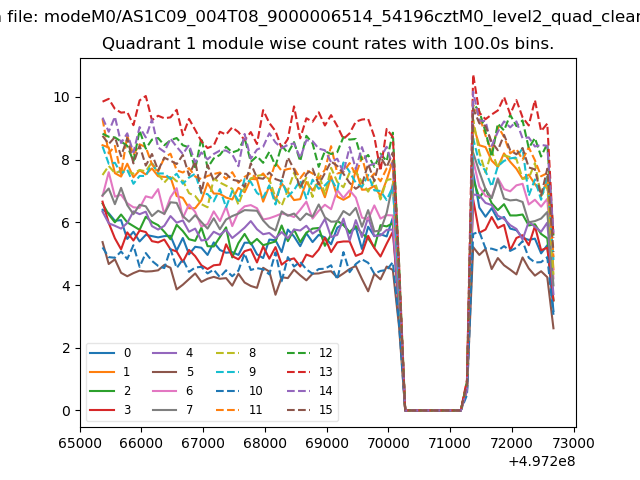

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

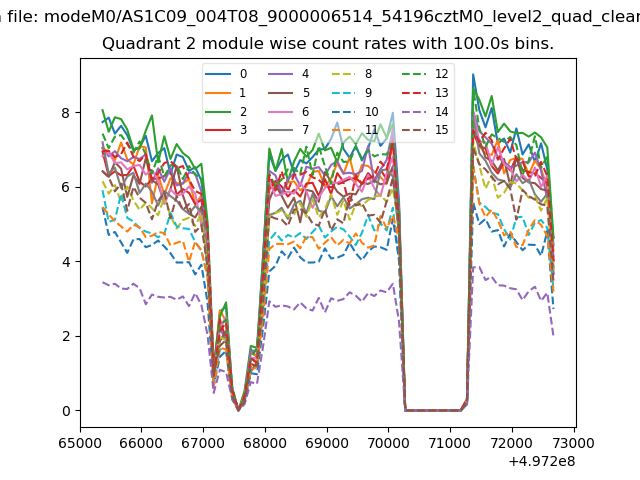

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
