| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T08_9000006514_54206cztM0_level2.fits | modeM0/AS1C09_004T08_9000006514_54206cztM0_level2_quad_clean.evt |
| Size (bytes) | 390,870,720 | 100,008,000 |
| Size | 372.8 MB | 95.4 MB |
| Events in quadrant A | 3,099,761 | 650,992 |
| Events in quadrant B | 3,275,497 | 700,239 |
| Events in quadrant C | 3,202,993 | 617,514 |
| Events in quadrant D | 4,347,490 | 573,957 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14553 | 1 |
| B | 0 | 14810 | 1 |
| C | 0 | 14972 | 1 |
| D | 0 | 17733 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6974 | 43 | 0.616576% |
| B | 6974 | 97 | 1.390880% |
| C | 6974 | 73 | 1.046745% |
| D | 6975 | 172 | 2.465950% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7774 | 6974 | 8 | 8 | 0.10% | 0.11% |  |
| B | 7774 | 6975 | 31 | 31 | 0.40% | 0.44% |  |
| C | 7774 | 6975 | 54 | 54 | 0.69% | 0.77% |  |
| D | 7775 | 6976 | 163 | 163 | 2.10% | 2.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 130 | 51547 | 281.85 | 734 | 715 | 180.4 |
| A | 4 | 3 | 42537 | 231.89 | 734 | 715 | 180.4 |
| A | 15 | 174 | 39708 | 216.2 | 734 | 715 | 180.4 |
| B | 0 | 213 | 77955 | 496.94 | 727 | 700 | 155.5 |
| B | 5 | 185 | 64409 | 409.81 | 727 | 700 | 155.5 |
| B | 5 | 172 | 58535 | 372.02 | 727 | 700 | 155.5 |
| C | 15 | 215 | 94267 | 479.39 | 708 | 701 | 195.2 |
| C | 12 | 252 | 85929 | 436.67 | 708 | 701 | 195.2 |
| C | 9 | 38 | 72877 | 369.8 | 708 | 701 | 195.2 |
| D | 8 | 176 | 1131304 | 5696.12 | 699 | 666 | 198.5 |
| D | 3 | 144 | 129067 | 646.88 | 699 | 666 | 198.5 |
| D | 3 | 12 | 108881 | 545.18 | 699 | 666 | 198.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

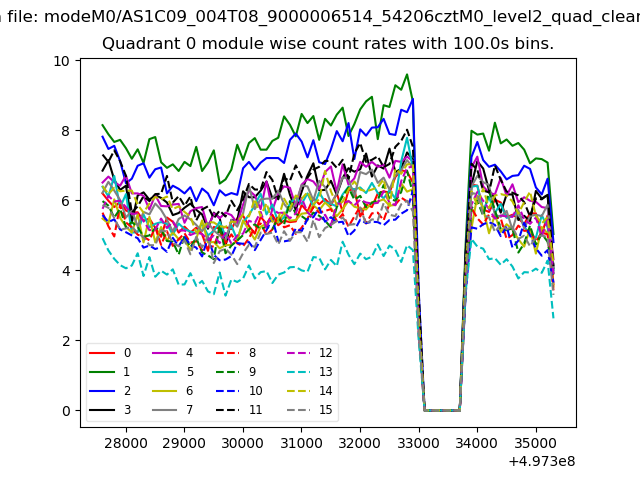

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

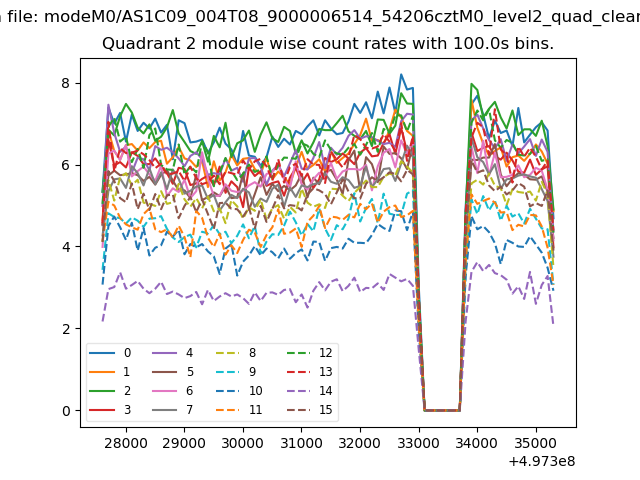

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

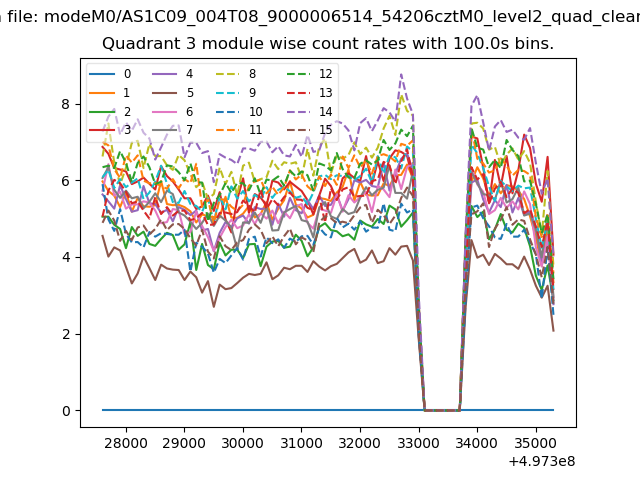

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

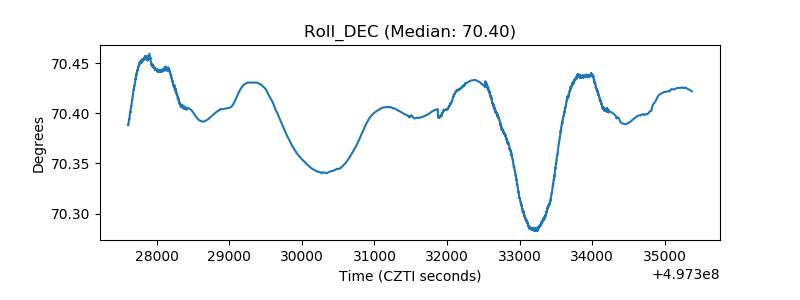

| _Roll_DEC |  |

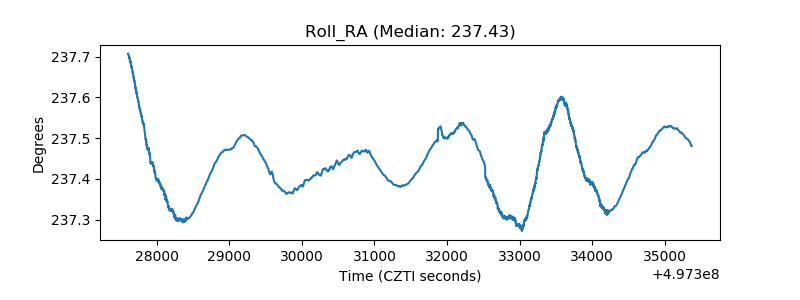

| _Roll_RA |  |
| Veto Counter |  |
