| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T08_9000006514_54228cztM0_level2.fits | modeM0/AS1C09_004T08_9000006514_54228cztM0_level2_quad_clean.evt |
| Size (bytes) | 848,675,520 | 77,647,680 |
| Size | 809.4 MB | 74.1 MB |
| Events in quadrant A | 6,040,852 | 569,768 |
| Events in quadrant B | 3,916,827 | 692,206 |
| Events in quadrant C | 5,430,154 | 547,618 |
| Events in quadrant D | 15,499,801 | 67,646 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22806 | 1 |
| B | 0 | 16432 | 1 |
| C | 0 | 21023 | 1 |
| D | 0 | 50664 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6796 | 1055 | 15.523838% |
| B | 6797 | 193 | 2.839488% |
| C | 6796 | 811 | 11.933490% |
| D | 6796 | 6034 | 88.787522% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7561 | 6797 | 761 | 761 | 10.06% | 11.20% |  |
| B | 7562 | 6798 | 95 | 95 | 1.26% | 1.40% |  |
| C | 7561 | 6797 | 621 | 621 | 8.21% | 9.14% |  |
| D | 7560 | 6796 | 4996 | 4996 | 66.08% | 73.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 17 | 2029537 | 12296.52 | 664 | 648 | 165.0 |
| A | 7 | 29 | 625914 | 3789.56 | 664 | 648 | 165.0 |
| A | 12 | 194 | 261697 | 1582.14 | 664 | 648 | 165.0 |
| B | 4 | 171 | 304643 | 2046.3 | 699 | 676 | 148.5 |
| B | 5 | 236 | 275492 | 1850.06 | 699 | 676 | 148.5 |
| B | 8 | 234 | 222315 | 1492.07 | 699 | 676 | 148.5 |
| C | 1 | 241 | 826024 | 4591.79 | 652 | 644 | 179.8 |
| C | 15 | 215 | 789543 | 4388.83 | 652 | 644 | 179.8 |
| C | 15 | 216 | 359004 | 1993.64 | 652 | 644 | 179.8 |
| D | 8 | 176 | 14372487 | 284768.04 | 172 | 165 | 50.5 |
| D | 3 | 12 | 218891 | 4333.76 | 172 | 165 | 50.5 |
| D | 2 | 153 | 38469 | 758.94 | 172 | 165 | 50.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

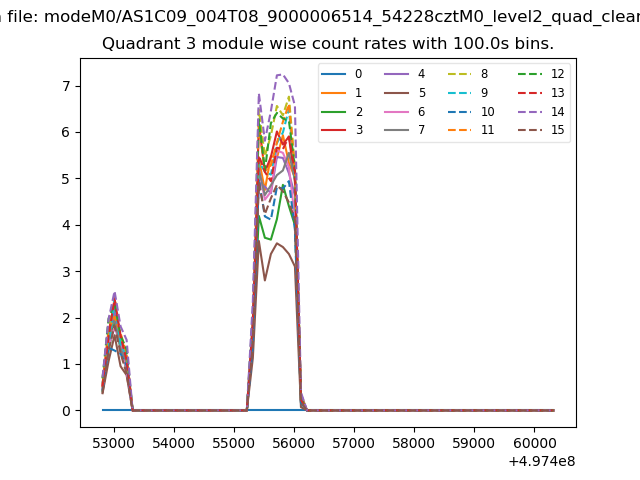

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

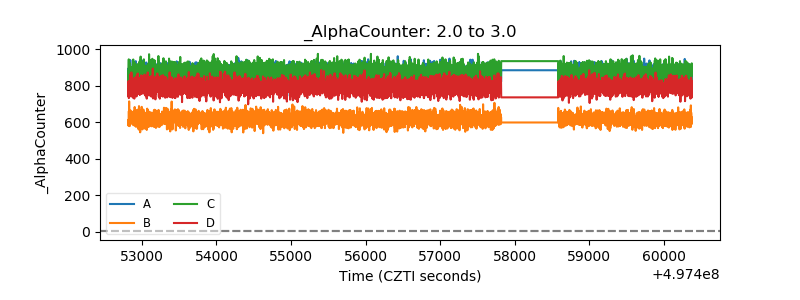

| Alpha Counter |  |
| _CPM_Rate |  |

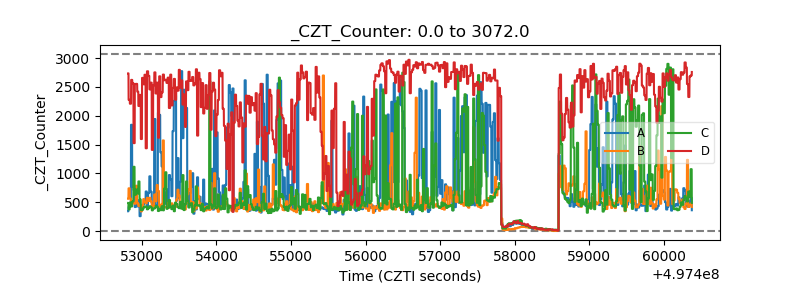

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

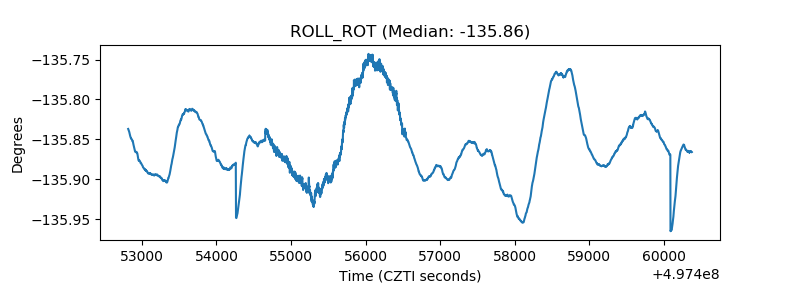

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
