| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T15_9000006516_54294cztM0_level2.fits | modeM0/AS1A14_126T15_9000006516_54294cztM0_level2_quad_clean.evt |
| Size (bytes) | 669,372,480 | 92,626,560 |
| Size | 638.4 MB | 88.3 MB |
| Events in quadrant A | 3,138,522 | 671,988 |
| Events in quadrant B | 3,417,851 | 721,506 |
| Events in quadrant C | 3,826,275 | 641,782 |
| Events in quadrant D | 13,842,221 | 274,124 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14836 | 1 |
| B | 0 | 15333 | 2 |
| C | 0 | 16582 | 1 |
| D | 0 | 46028 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7116 | 65 | 0.913435% |
| B | 7116 | 81 | 1.138280% |
| C | 7116 | 102 | 1.433390% |
| D | 7116 | 4243 | 59.626194% |

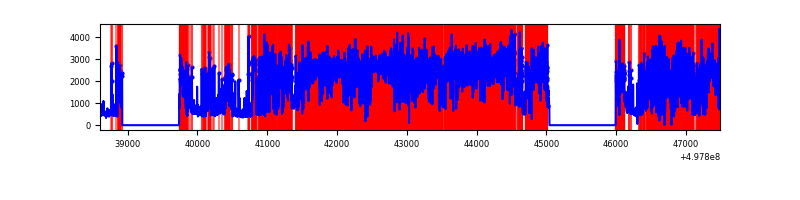

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

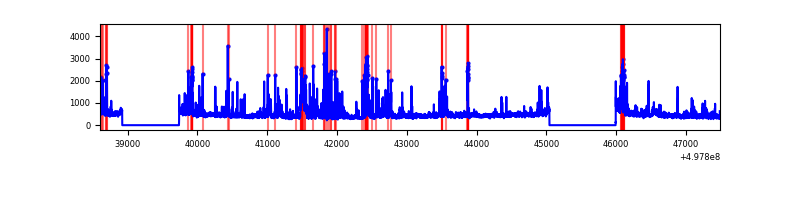

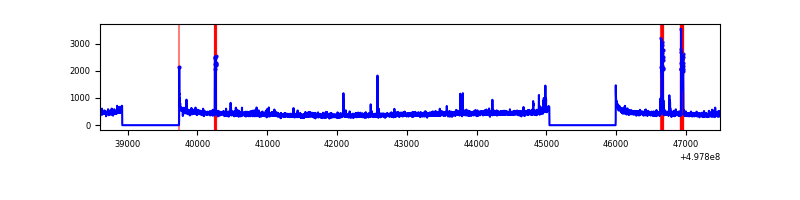

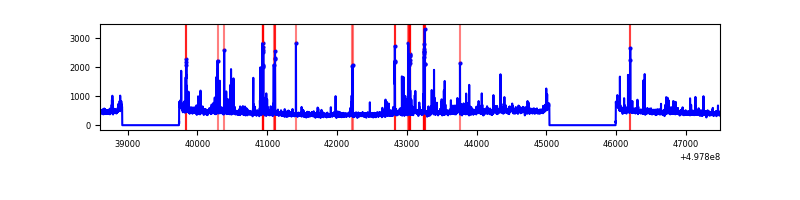

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8881 | 7118 | 48 | 48 | 0.54% | 0.67% |  |
| B | 8881 | 7118 | 43 | 43 | 0.48% | 0.60% |  |
| C | 8881 | 7118 | 96 | 96 | 1.08% | 1.35% |  |
| D | 8881 | 7118 | 3983 | 3983 | 44.85% | 55.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 29 | 69868 | 375.08 | 747 | 728 | 184.3 |
| A | 12 | 17 | 62820 | 336.84 | 747 | 728 | 184.3 |
| A | 6 | 161 | 17379 | 90.33 | 747 | 728 | 184.3 |
| B | 10 | 247 | 167619 | 1045.85 | 742 | 714 | 159.6 |
| B | 0 | 213 | 76573 | 475.34 | 742 | 714 | 159.6 |
| B | 7 | 0 | 67223 | 416.76 | 742 | 714 | 159.6 |
| C | 14 | 254 | 462525 | 2295.68 | 729 | 722 | 201.2 |
| C | 12 | 249 | 289059 | 1433.36 | 729 | 722 | 201.2 |
| C | 12 | 252 | 97771 | 482.44 | 729 | 722 | 201.2 |
| D | 8 | 176 | 10614908 | 74860.05 | 490 | 466 | 141.8 |
| D | 2 | 153 | 802758 | 5658.29 | 490 | 466 | 141.8 |
| D | 2 | 172 | 184236 | 1296.07 | 490 | 466 | 141.8 |

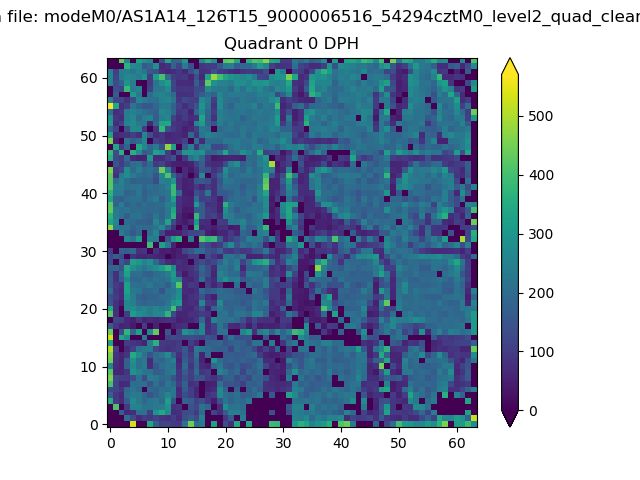

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

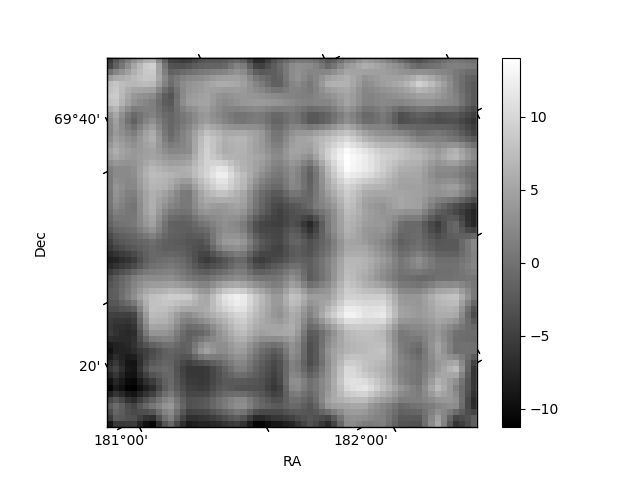

| Plot type | Count rate plots | Images |
|---|---|---|

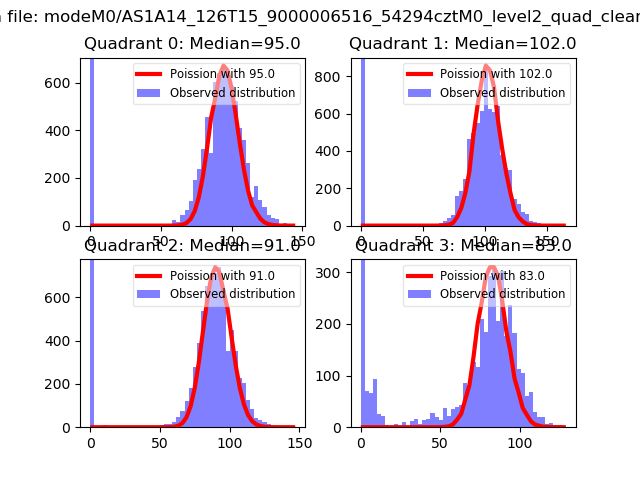

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

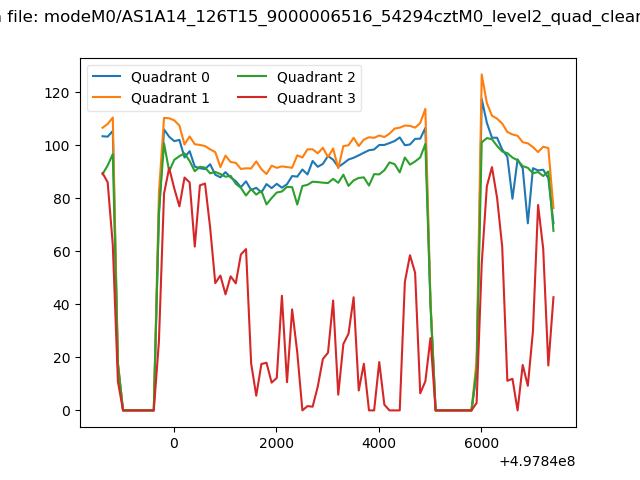

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

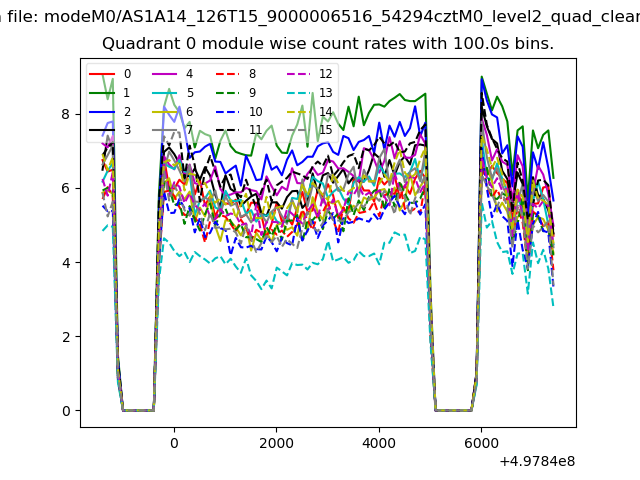

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

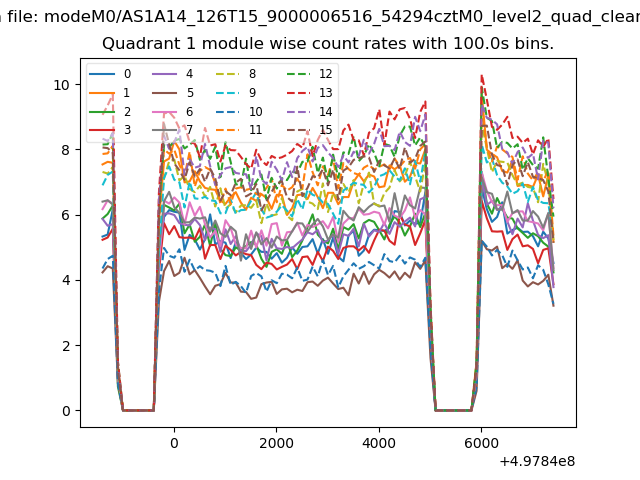

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

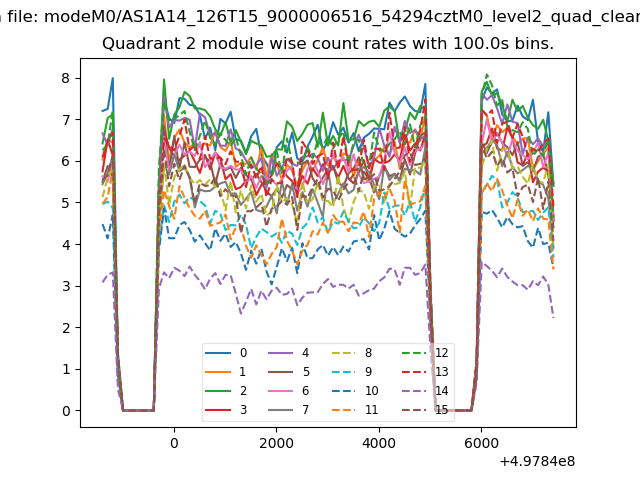

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

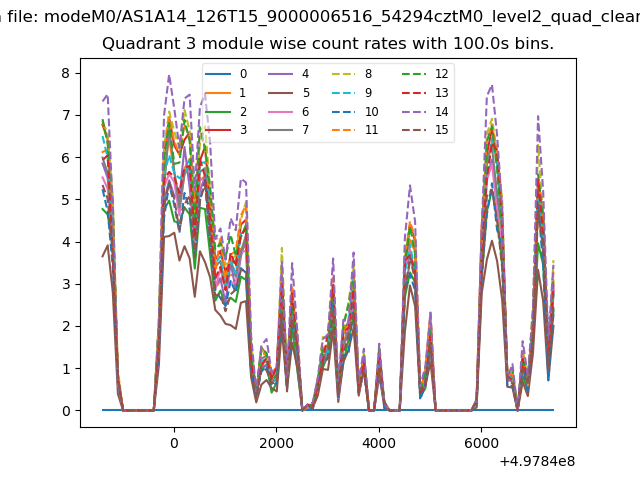

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

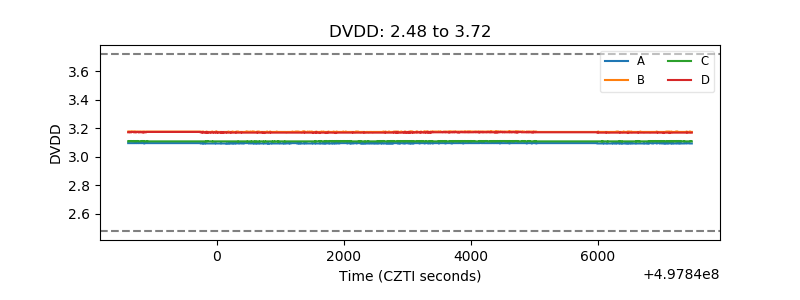

| D_VDD |  |

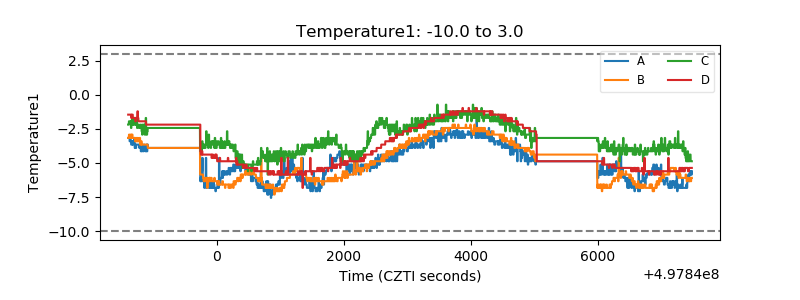

| Temperature 1 |  |

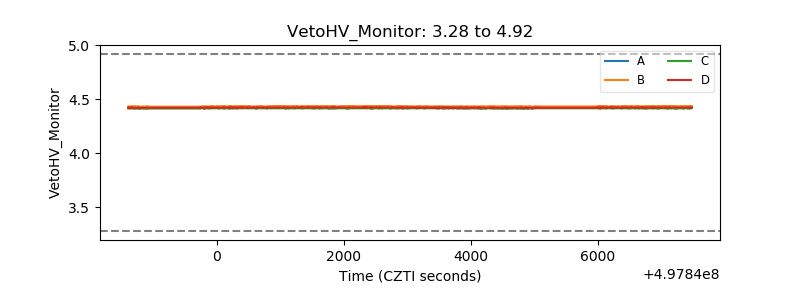

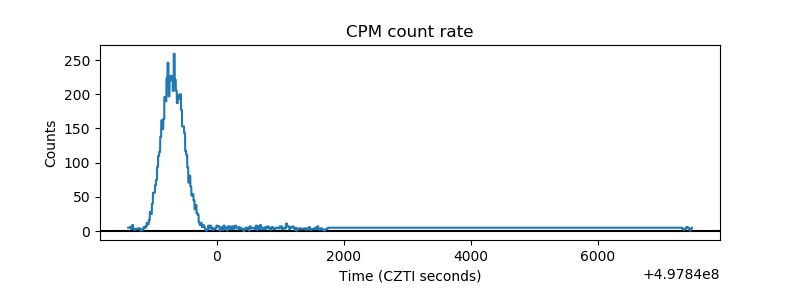

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

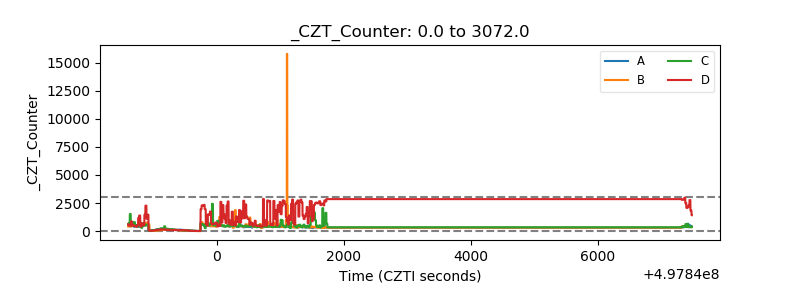

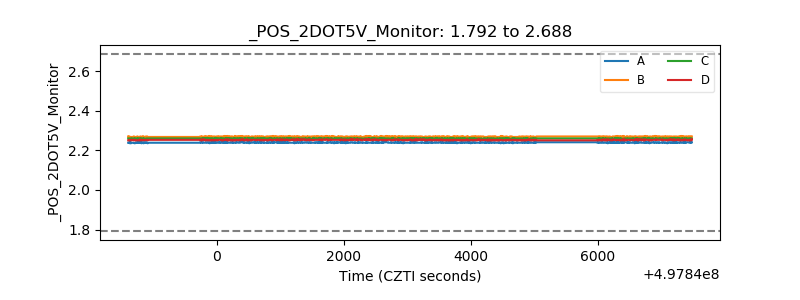

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

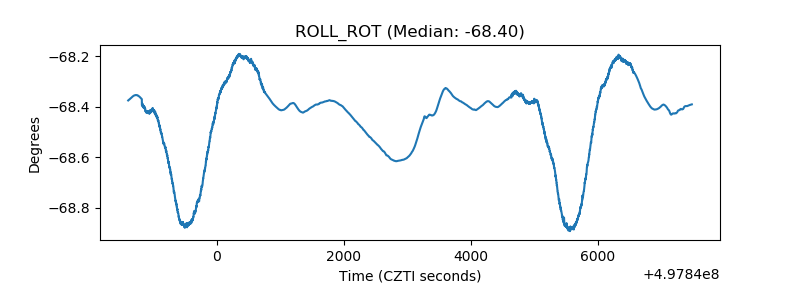

| _ROLL_ROT |  |

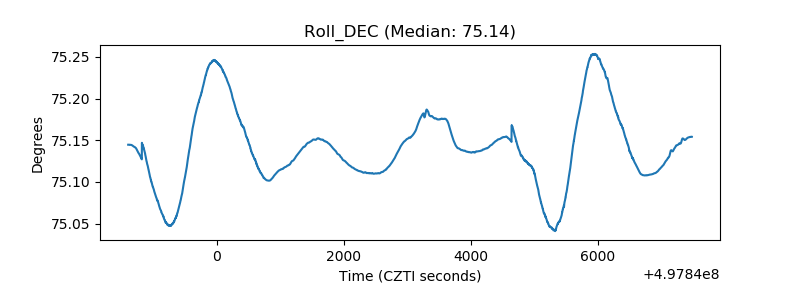

| _Roll_DEC |  |

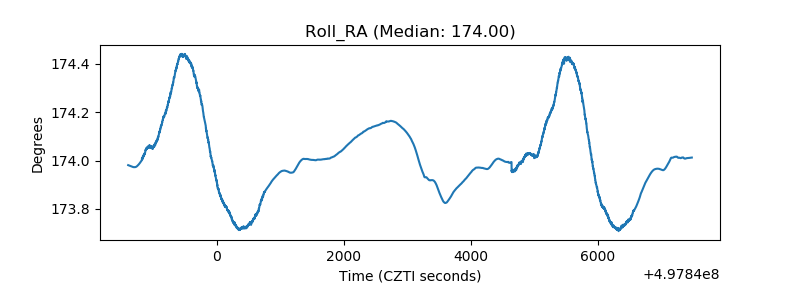

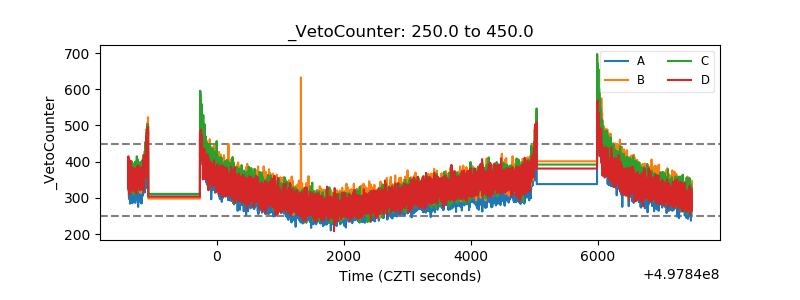

| _Roll_RA |  |
| Veto Counter |  |
