| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T15_9000006516_54299cztM0_level2.fits | modeM0/AS1A14_126T15_9000006516_54299cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,180,160 | 86,852,160 |
| Size | 525.6 MB | 82.8 MB |
| Events in quadrant A | 2,780,009 | 622,422 |
| Events in quadrant B | 3,503,180 | 663,605 |
| Events in quadrant C | 4,720,382 | 529,702 |
| Events in quadrant D | 8,918,430 | 382,099 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12810 | 1 |
| B | 0 | 14582 | 1 |
| C | 0 | 18610 | 1 |
| D | 0 | 30751 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6187 | 57 | 0.921287% |
| B | 6188 | 58 | 0.937298% |
| C | 6188 | 641 | 10.358759% |
| D | 6188 | 2087 | 33.726568% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7307 | 6188 | 9 | 9 | 0.12% | 0.15% |  |
| B | 7308 | 6189 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7308 | 6189 | 566 | 566 | 7.74% | 9.15% |  |
| D | 7308 | 6189 | 1965 | 1965 | 26.89% | 31.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 3 | 31324 | 187.71 | 667 | 653 | 163.4 |
| A | 8 | 246 | 30521 | 182.8 | 667 | 653 | 163.4 |
| A | 4 | 249 | 23642 | 140.7 | 667 | 653 | 163.4 |
| B | 7 | 0 | 662593 | 4788.6 | 652 | 628 | 138.2 |
| B | 10 | 247 | 69090 | 495.25 | 652 | 628 | 138.2 |
| B | 4 | 21 | 54180 | 387.39 | 652 | 628 | 138.2 |
| C | 1 | 241 | 1467229 | 8825.08 | 604 | 599 | 166.2 |
| C | 12 | 249 | 589262 | 3542.13 | 604 | 599 | 166.2 |
| C | 14 | 254 | 167366 | 1003.48 | 604 | 599 | 166.2 |
| D | 8 | 176 | 5571294 | 37457.84 | 526 | 502 | 148.7 |
| D | 2 | 172 | 522217 | 3508.0 | 526 | 502 | 148.7 |
| D | 2 | 153 | 359905 | 2416.62 | 526 | 502 | 148.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

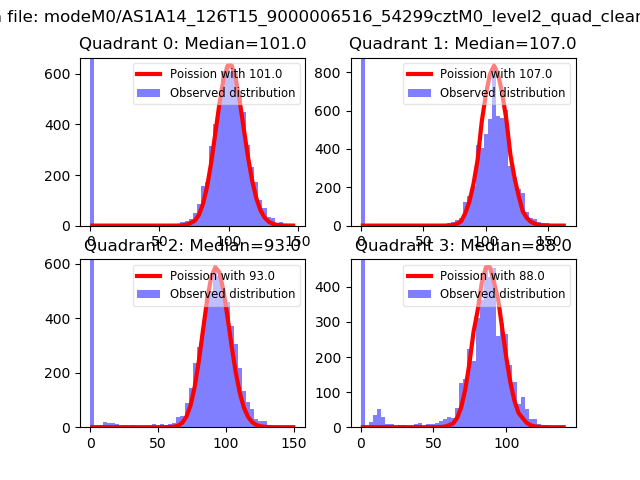

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

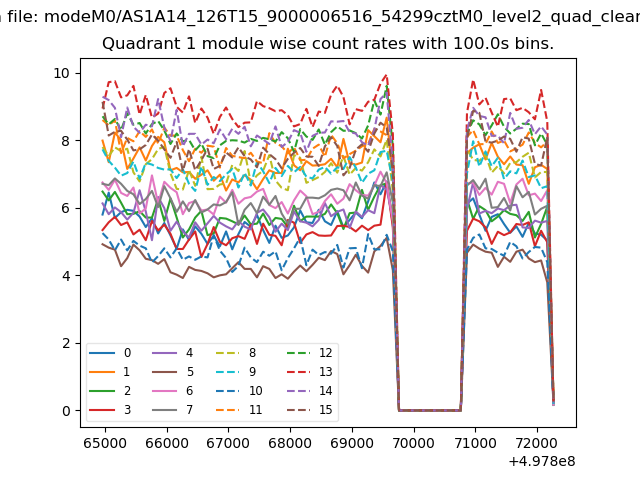

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

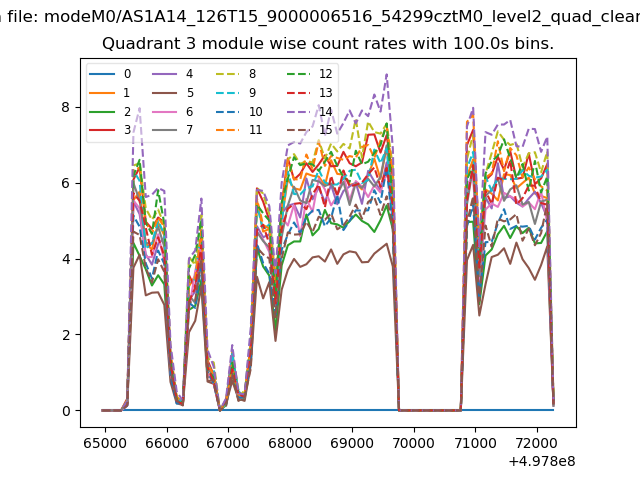

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

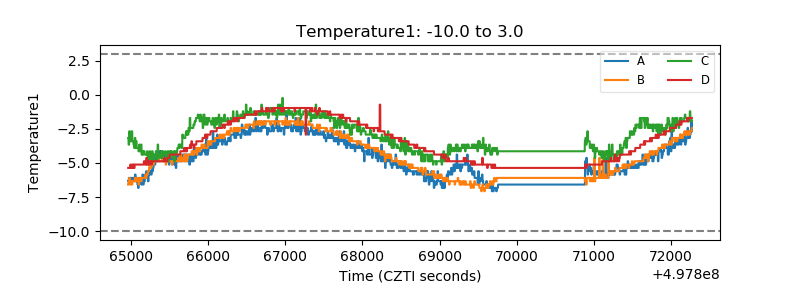

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

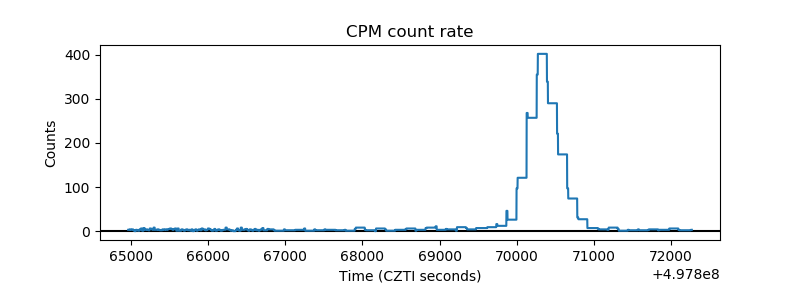

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
