| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T15_9000006516_54301cztM0_level2.fits | modeM0/AS1A14_126T15_9000006516_54301cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,411,200 | 87,776,640 |
| Size | 507.7 MB | 83.7 MB |
| Events in quadrant A | 2,919,126 | 608,263 |
| Events in quadrant B | 3,290,858 | 644,772 |
| Events in quadrant C | 4,103,767 | 538,951 |
| Events in quadrant D | 8,900,712 | 421,771 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13470 | 1 |
| B | 0 | 14152 | 1 |
| C | 0 | 16949 | 2 |
| D | 0 | 30872 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6359 | 85 | 1.336688% |
| B | 6359 | 100 | 1.572574% |
| C | 6359 | 413 | 6.494732% |
| D | 6359 | 1568 | 24.657965% |

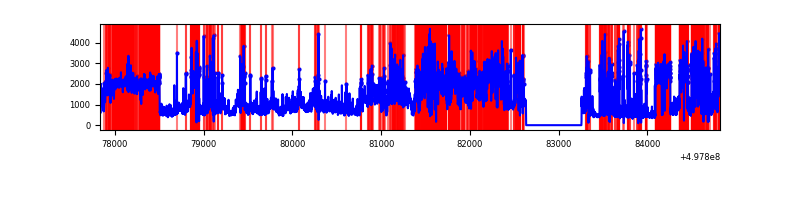

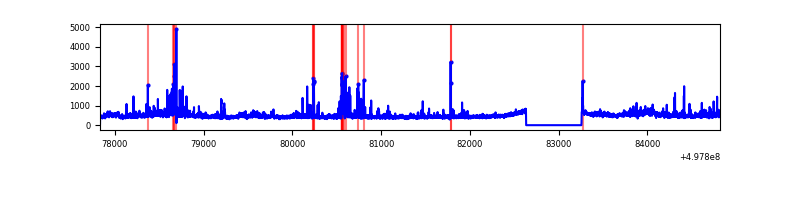

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6984 | 6360 | 8 | 8 | 0.11% | 0.13% |  |
| B | 6984 | 6360 | 26 | 26 | 0.37% | 0.41% |  |
| C | 6984 | 6360 | 347 | 347 | 4.97% | 5.46% |  |
| D | 6983 | 6359 | 1547 | 1547 | 22.15% | 24.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 110 | 119841 | 722.87 | 673 | 656 | 164.9 |
| A | 7 | 29 | 43556 | 260.19 | 673 | 656 | 164.9 |
| A | 15 | 174 | 38404 | 228.95 | 673 | 656 | 164.9 |
| B | 7 | 0 | 292438 | 2075.53 | 657 | 633 | 140.6 |
| B | 7 | 252 | 112304 | 794.29 | 657 | 633 | 140.6 |
| B | 10 | 247 | 87862 | 620.44 | 657 | 633 | 140.6 |
| C | 12 | 249 | 801116 | 4651.69 | 629 | 621 | 172.1 |
| C | 1 | 241 | 526759 | 3057.4 | 629 | 621 | 172.1 |
| C | 14 | 254 | 177841 | 1029.83 | 629 | 621 | 172.1 |
| D | 8 | 176 | 2891245 | 17732.07 | 578 | 554 | 163.0 |
| D | 2 | 172 | 2196765 | 13471.99 | 578 | 554 | 163.0 |
| D | 2 | 62 | 895235 | 5488.15 | 578 | 554 | 163.0 |

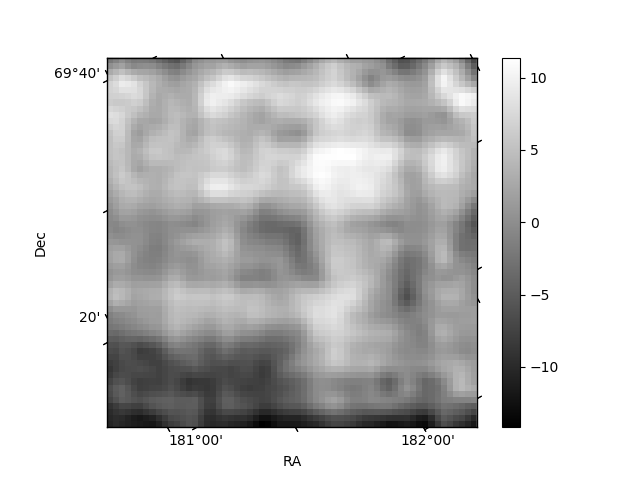

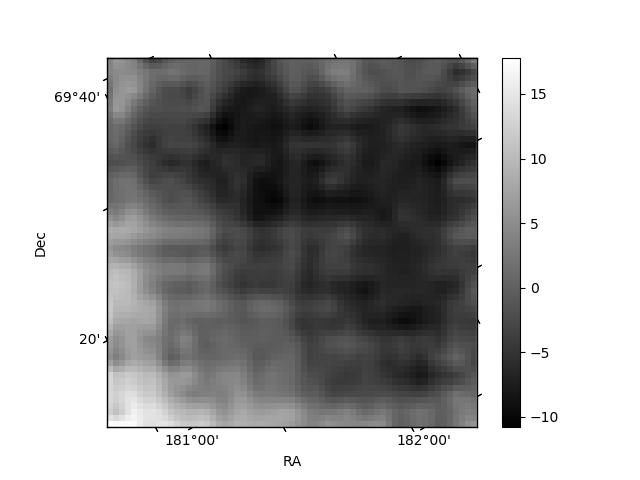

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

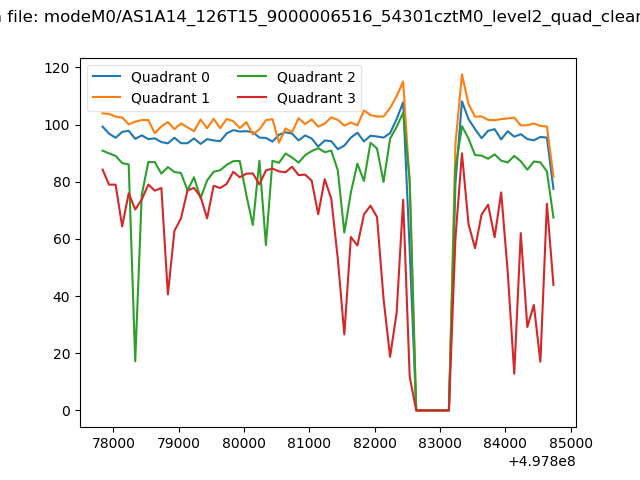

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

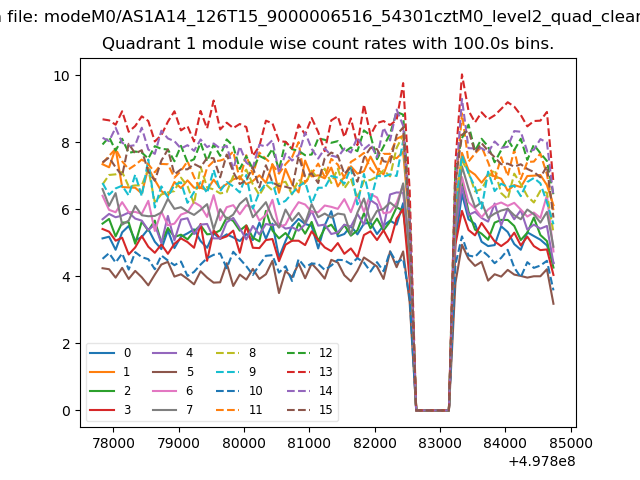

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

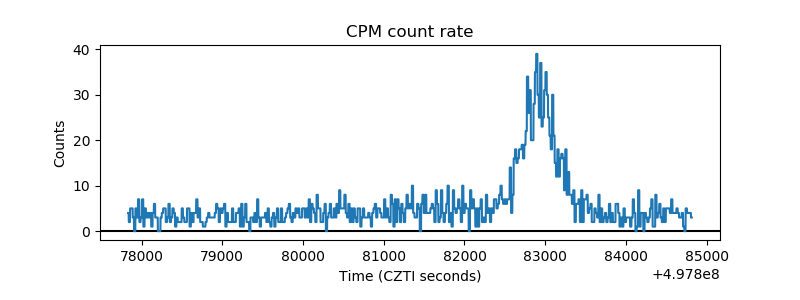

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

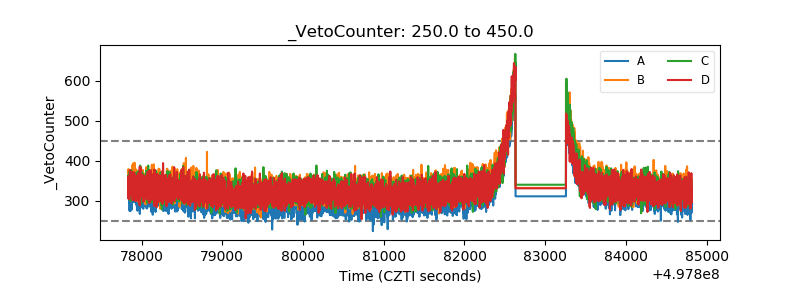

| Veto Counter |  |
