| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T15_9000006516_54311cztM0_level2.fits | modeM0/AS1A14_126T15_9000006516_54311cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,199,680 | 80,985,600 |
| Size | 535.2 MB | 77.2 MB |
| Events in quadrant A | 4,017,215 | 559,086 |
| Events in quadrant B | 2,921,931 | 641,393 |
| Events in quadrant C | 2,690,651 | 568,597 |
| Events in quadrant D | 10,663,189 | 251,932 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16574 | 1 |
| B | 0 | 13092 | 1 |
| C | 0 | 12911 | 1 |
| D | 0 | 36032 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6173 | 475 | 7.694800% |
| B | 6173 | 38 | 0.615584% |
| C | 6174 | 28 | 0.453515% |
| D | 6173 | 3440 | 55.726551% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7278 | 6174 | 335 | 335 | 4.60% | 5.43% |  |
| B | 7278 | 6174 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7279 | 6175 | 22 | 22 | 0.30% | 0.36% |  |
| D | 7278 | 6174 | 2949 | 2949 | 40.52% | 47.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 29 | 1157974 | 7521.34 | 620 | 605 | 153.9 |
| A | 0 | 8 | 376873 | 2445.23 | 620 | 605 | 153.9 |
| A | 4 | 3 | 34837 | 222.46 | 620 | 605 | 153.9 |
| B | 7 | 0 | 290430 | 2105.38 | 640 | 617 | 137.7 |
| B | 10 | 247 | 19906 | 140.13 | 640 | 617 | 137.7 |
| B | 0 | 213 | 19233 | 135.24 | 640 | 617 | 137.7 |
| C | 14 | 254 | 72709 | 415.72 | 624 | 618 | 173.4 |
| C | 1 | 241 | 55796 | 318.19 | 624 | 618 | 173.4 |
| C | 9 | 237 | 47722 | 271.63 | 624 | 618 | 173.4 |
| D | 8 | 176 | 8667843 | 76328.43 | 396 | 377 | 113.6 |
| D | 2 | 252 | 151508 | 1330.91 | 396 | 377 | 113.6 |
| D | 3 | 12 | 146732 | 1288.85 | 396 | 377 | 113.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

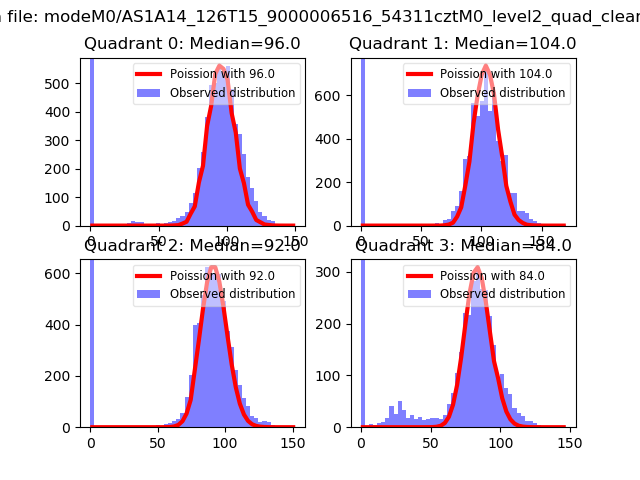

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

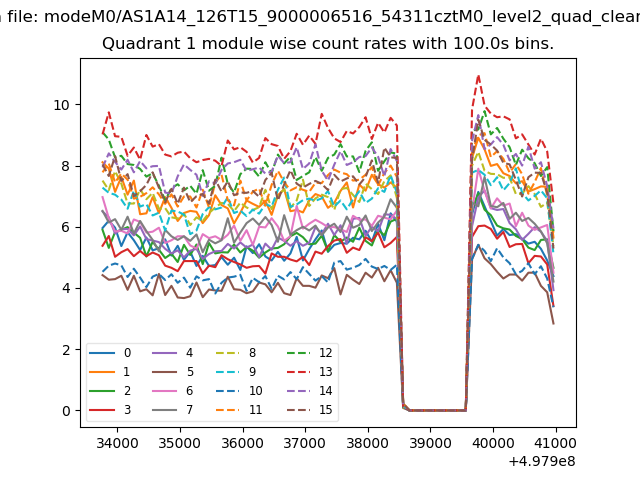

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

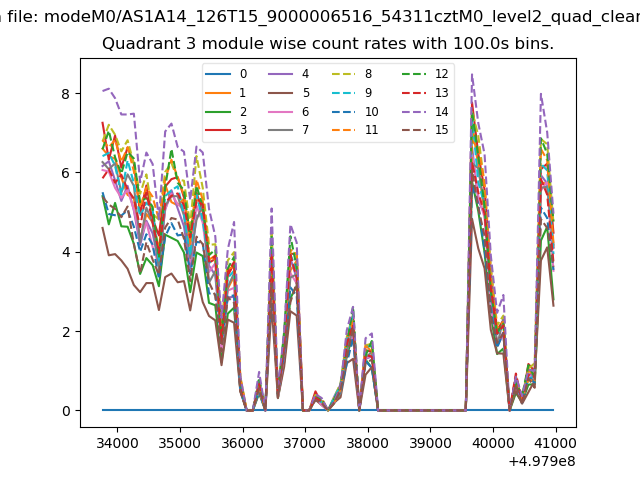

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

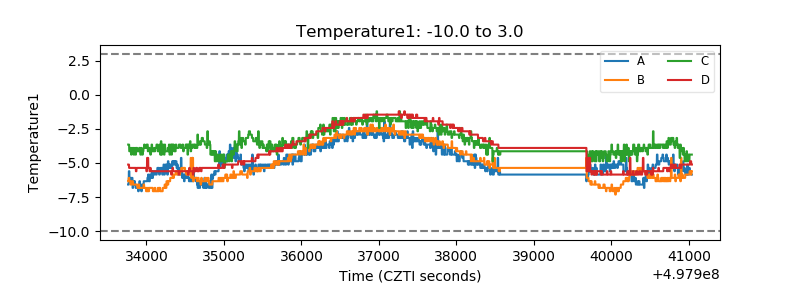

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

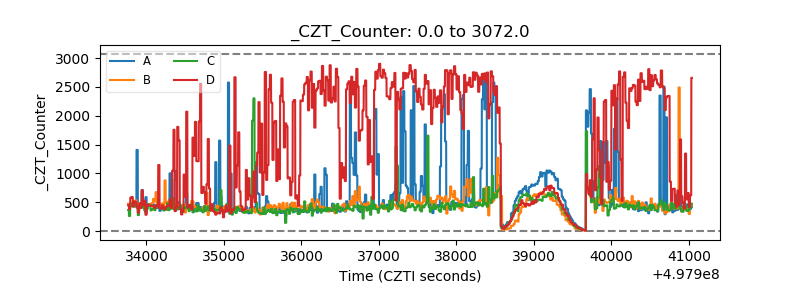

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

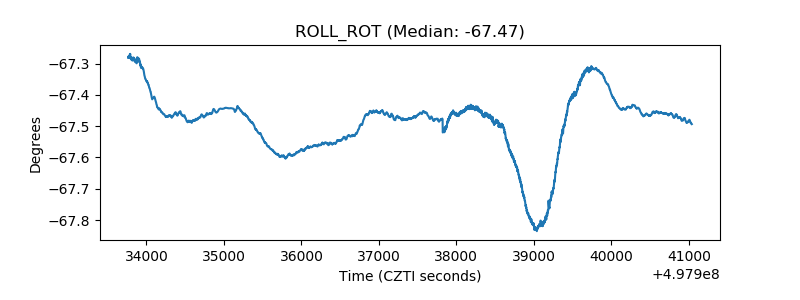

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
