| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T15_9000006516_54315cztM0_level2.fits | modeM0/AS1A14_126T15_9000006516_54315cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,040,640 | 96,517,440 |
| Size | 458.8 MB | 92.0 MB |
| Events in quadrant A | 4,143,338 | 616,068 |
| Events in quadrant B | 4,500,405 | 654,391 |
| Events in quadrant C | 4,315,051 | 597,427 |
| Events in quadrant D | 4,313,596 | 576,481 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17101 | 1 |
| B | 0 | 18528 | 1 |
| C | 0 | 18093 | 1 |
| D | 0 | 17679 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6865 | 606 | 8.827385% |
| B | 6866 | 626 | 9.117390% |
| C | 6866 | 433 | 6.306438% |
| D | 6865 | 213 | 3.102695% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7680 | 6866 | 366 | 366 | 4.77% | 5.33% |  |
| B | 7681 | 6867 | 396 | 396 | 5.16% | 5.77% |  |
| C | 7681 | 6867 | 352 | 352 | 4.58% | 5.13% |  |
| D | 7680 | 6866 | 136 | 136 | 1.77% | 1.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 29 | 1157013 | 6794.5 | 686 | 669 | 170.2 |
| A | 6 | 161 | 108822 | 635.49 | 686 | 669 | 170.2 |
| A | 3 | 14 | 56019 | 325.23 | 686 | 669 | 170.2 |
| B | 10 | 245 | 1590609 | 10852.19 | 687 | 662 | 146.5 |
| B | 0 | 213 | 69700 | 471.22 | 687 | 662 | 146.5 |
| B | 10 | 247 | 41888 | 281.39 | 687 | 662 | 146.5 |
| C | 1 | 241 | 1268169 | 6728.69 | 684 | 674 | 188.4 |
| C | 14 | 254 | 158822 | 839.55 | 684 | 674 | 188.4 |
| C | 1 | 29 | 70112 | 368.62 | 684 | 674 | 188.4 |
| D | 8 | 176 | 592154 | 2993.36 | 697 | 664 | 197.6 |
| D | 14 | 52 | 286552 | 1446.8 | 697 | 664 | 197.6 |
| D | 3 | 12 | 221218 | 1116.16 | 697 | 664 | 197.6 |

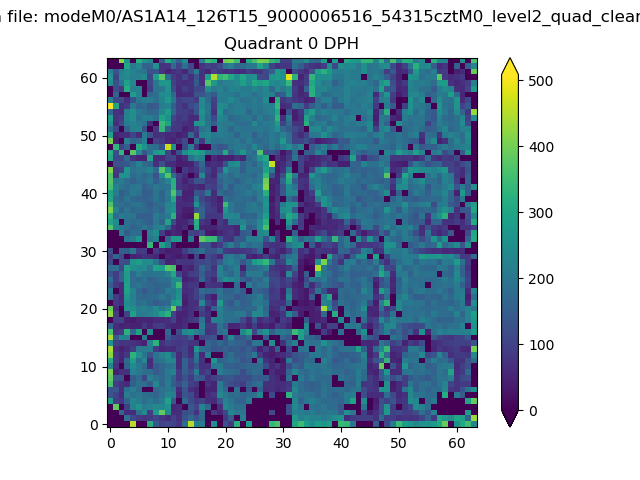

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

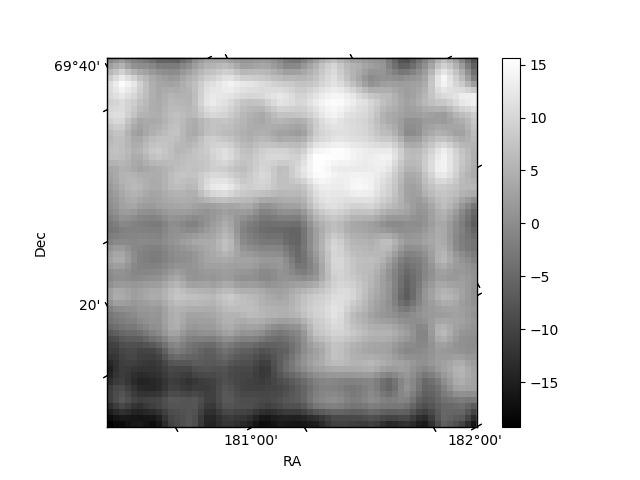

| Plot type | Count rate plots | Images |
|---|---|---|

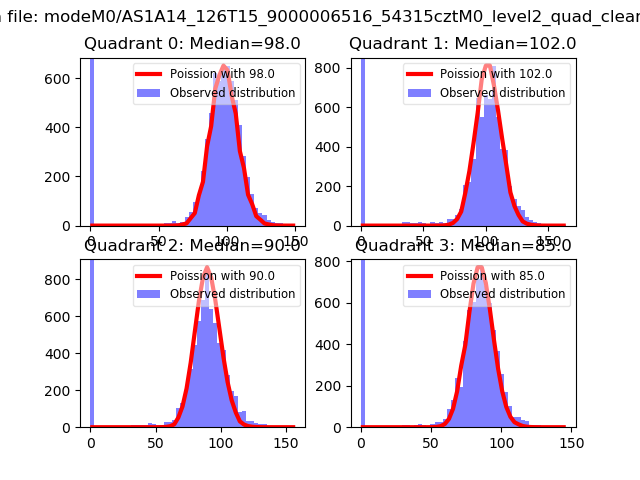

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

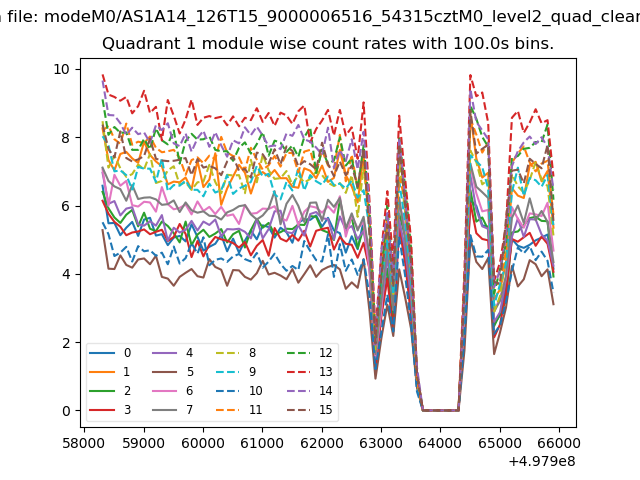

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

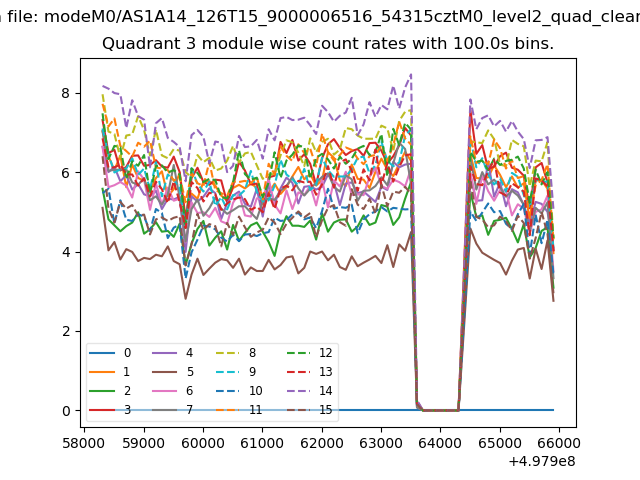

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

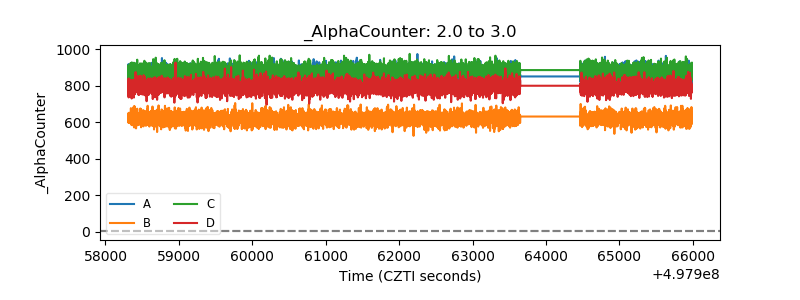

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

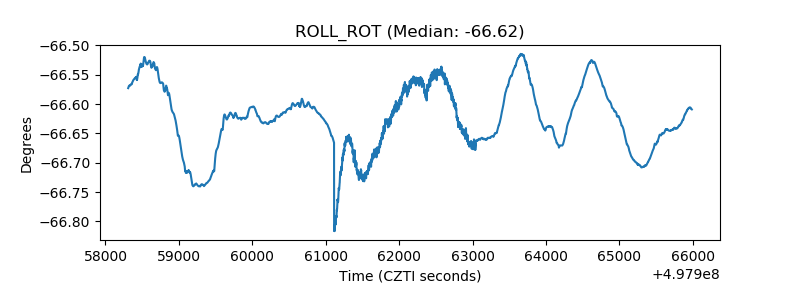

| _ROLL_ROT |  |
| _Roll_DEC |  |

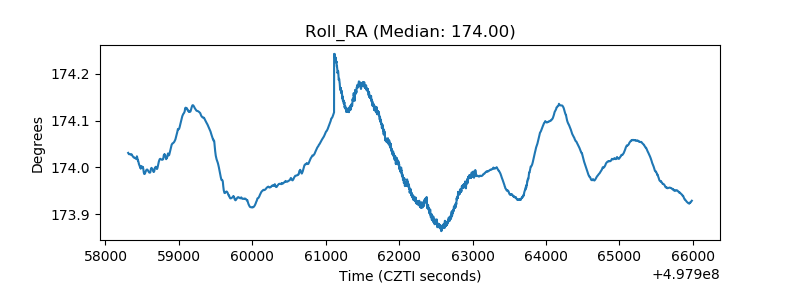

| _Roll_RA |  |
| Veto Counter |  |
