| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T15_9000006516_54328cztM0_level2.fits | modeM0/AS1A14_126T15_9000006516_54328cztM0_level2_quad_clean.evt |
| Size (bytes) | 602,988,480 | 79,047,360 |
| Size | 575.1 MB | 75.4 MB |
| Events in quadrant A | 2,716,275 | 601,408 |
| Events in quadrant B | 3,284,302 | 609,183 |
| Events in quadrant C | 7,272,933 | 398,494 |
| Events in quadrant D | 8,580,152 | 364,452 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12464 | 1 |
| B | 0 | 14167 | 1 |
| C | 0 | 26003 | 1 |
| D | 0 | 29645 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6009 | 22 | 0.366117% |
| B | 6010 | 298 | 4.958403% |
| C | 6010 | 1832 | 30.482529% |
| D | 6010 | 2068 | 34.409318% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7144 | 6010 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7145 | 6010 | 160 | 160 | 2.24% | 2.66% |  |
| C | 7145 | 6011 | 1736 | 1736 | 24.30% | 28.88% |  |
| D | 7145 | 6011 | 1960 | 1960 | 27.43% | 32.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 88582 | 556.63 | 642 | 627 | 158.0 |
| A | 5 | 243 | 49891 | 311.77 | 642 | 627 | 158.0 |
| A | 4 | 3 | 25280 | 156.02 | 642 | 627 | 158.0 |
| B | 2 | 249 | 510927 | 3900.61 | 607 | 585 | 130.8 |
| B | 0 | 171 | 237961 | 1814.3 | 607 | 585 | 130.8 |
| B | 10 | 247 | 57162 | 432.43 | 607 | 585 | 130.8 |
| C | 1 | 241 | 4709496 | 32887.65 | 518 | 512 | 143.2 |
| C | 13 | 3 | 274214 | 1911.54 | 518 | 512 | 143.2 |
| C | 1 | 16 | 157213 | 1094.4 | 518 | 512 | 143.2 |
| D | 15 | 108 | 3764274 | 26630.53 | 502 | 479 | 141.3 |
| D | 8 | 176 | 2410314 | 17050.66 | 502 | 479 | 141.3 |
| D | 2 | 120 | 124571 | 878.0 | 502 | 479 | 141.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

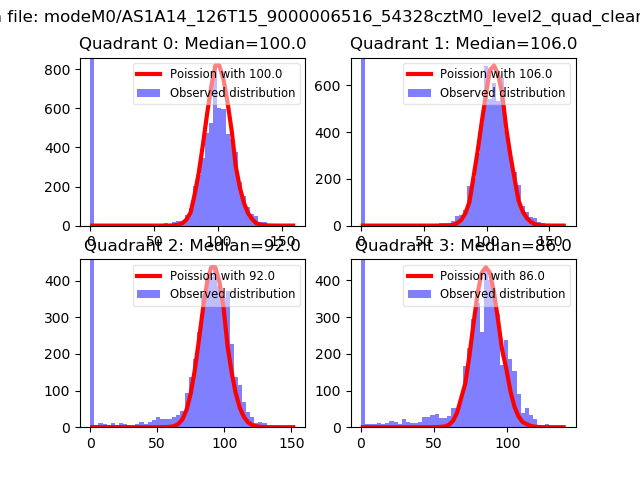

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

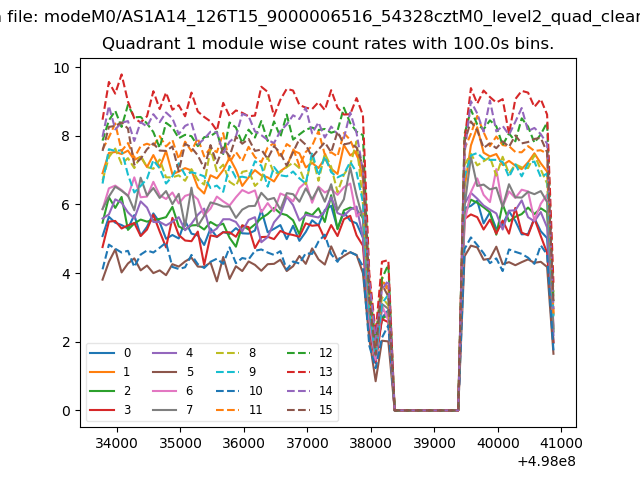

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

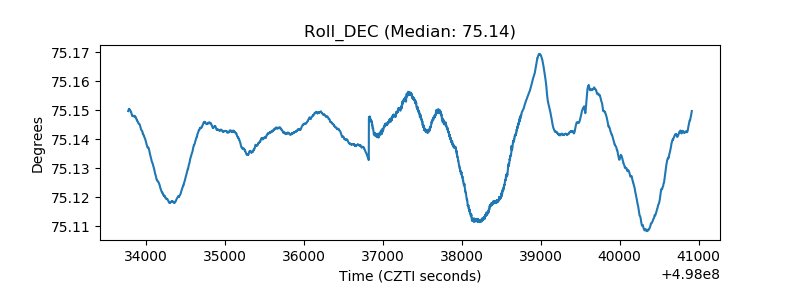

| _ROLL_ROT |  |
| _Roll_DEC |  |

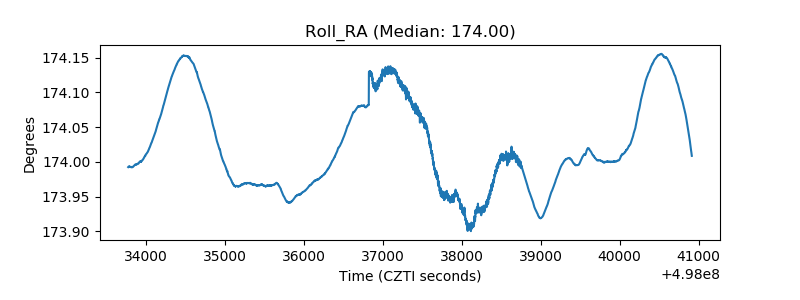

| _Roll_RA |  |
| Veto Counter |  |
