| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T15_9000006516_54329cztM0_level2.fits | modeM0/AS1A14_126T15_9000006516_54329cztM0_level2_quad_clean.evt |
| Size (bytes) | 769,495,680 | 80,856,000 |
| Size | 733.8 MB | 77.1 MB |
| Events in quadrant A | 2,991,766 | 641,556 |
| Events in quadrant B | 3,129,837 | 680,190 |
| Events in quadrant C | 10,573,251 | 348,676 |
| Events in quadrant D | 11,278,672 | 318,662 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13824 | 2 |
| B | 0 | 14235 | 1 |
| C | 0 | 36145 | 1 |
| D | 0 | 38043 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6584 | 88 | 1.336574% |
| B | 6585 | 127 | 1.928626% |
| C | 6585 | 2984 | 45.315110% |
| D | 6585 | 3167 | 48.094153% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

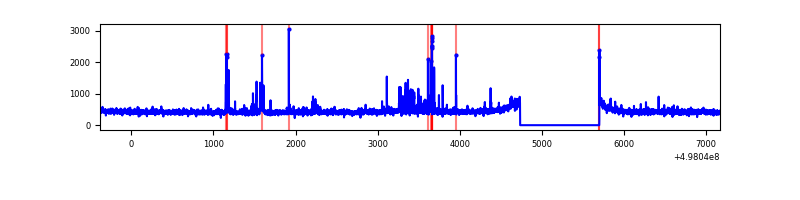

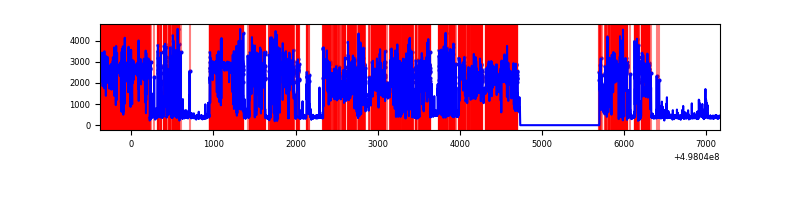

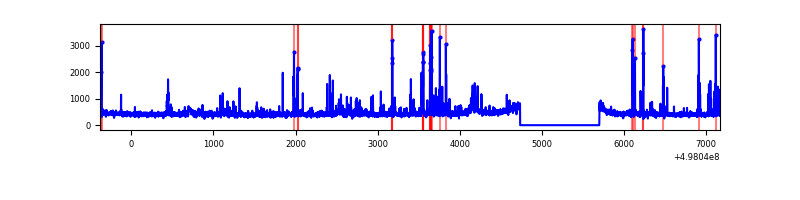

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7549 | 6585 | 15 | 15 | 0.20% | 0.23% |  |
| B | 7550 | 6586 | 29 | 29 | 0.38% | 0.44% |  |
| C | 7550 | 6586 | 2796 | 2796 | 37.03% | 42.45% |  |
| D | 7550 | 6585 | 2916 | 2916 | 38.62% | 44.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 9 | 84861 | 488.59 | 701 | 684 | 172.3 |
| A | 7 | 29 | 69186 | 397.61 | 701 | 684 | 172.3 |
| A | 4 | 3 | 36311 | 206.79 | 701 | 684 | 172.3 |
| B | 2 | 249 | 77982 | 527.78 | 687 | 663 | 146.5 |
| B | 10 | 247 | 71391 | 482.79 | 687 | 663 | 146.5 |
| B | 1 | 223 | 57671 | 389.14 | 687 | 663 | 146.5 |
| C | 1 | 241 | 8139177 | 55664.92 | 532 | 526 | 146.2 |
| C | 14 | 254 | 132232 | 900.81 | 532 | 526 | 146.2 |
| C | 13 | 3 | 64058 | 434.53 | 532 | 526 | 146.2 |
| D | 8 | 176 | 4792937 | 33494.89 | 497 | 474 | 143.1 |
| D | 15 | 108 | 4099132 | 28645.83 | 497 | 474 | 143.1 |
| D | 2 | 120 | 95404 | 663.47 | 497 | 474 | 143.1 |

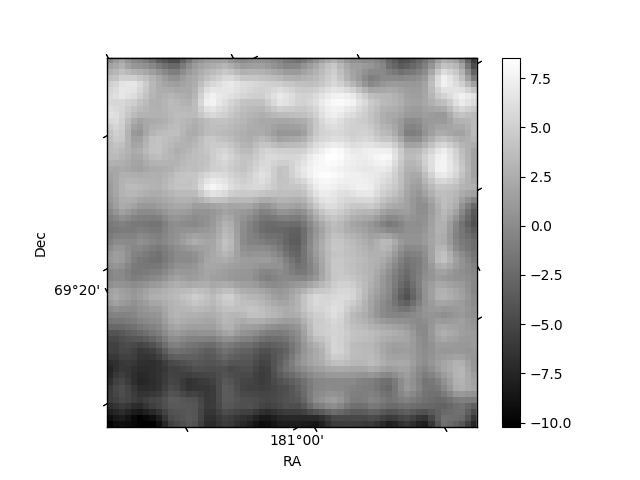

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

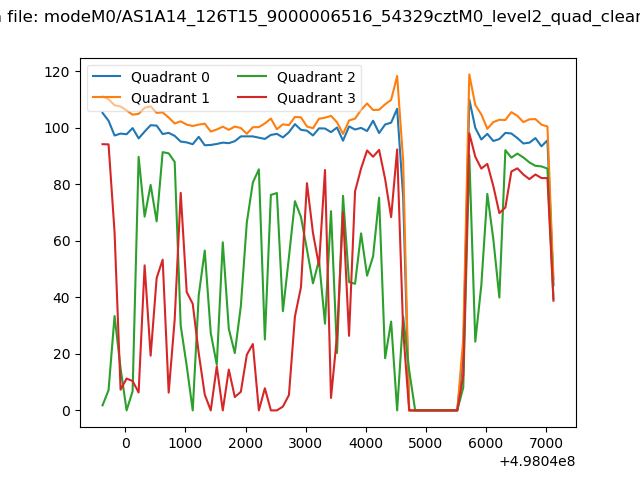

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

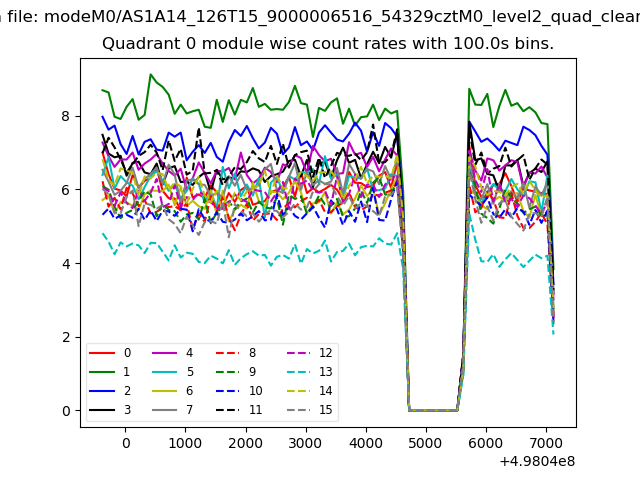

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

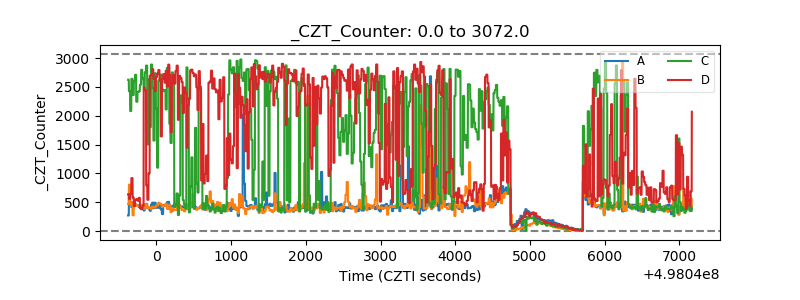

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

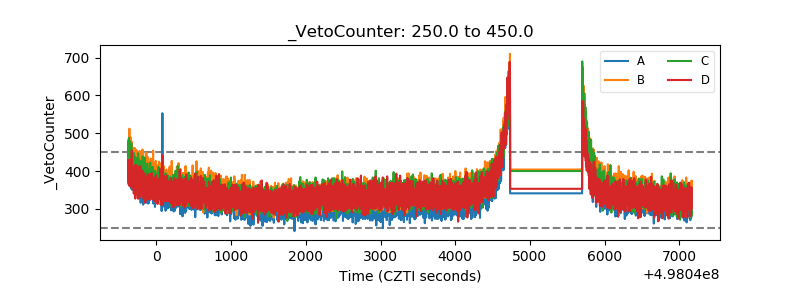

| Veto Counter |  |
