| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T15_9000006516_54343cztM0_level2.fits | modeM0/AS1A14_126T15_9000006516_54343cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,058,560 | 84,611,520 |
| Size | 492.2 MB | 80.7 MB |
| Events in quadrant A | 3,465,864 | 588,799 |
| Events in quadrant B | 2,961,236 | 647,066 |
| Events in quadrant C | 3,715,101 | 543,263 |
| Events in quadrant D | 8,483,282 | 354,772 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14910 | 1 |
| B | 0 | 13120 | 1 |
| C | 0 | 15642 | 2 |
| D | 0 | 29607 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6134 | 303 | 4.939680% |
| B | 6134 | 64 | 1.043365% |
| C | 6133 | 292 | 4.761128% |
| D | 6133 | 2229 | 36.344367% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

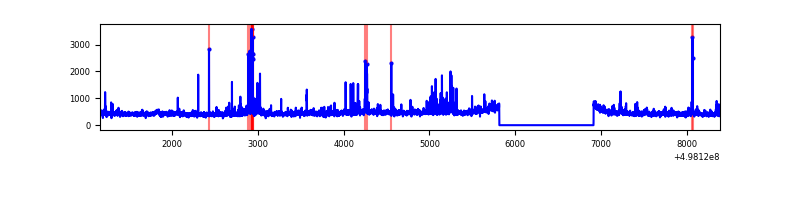

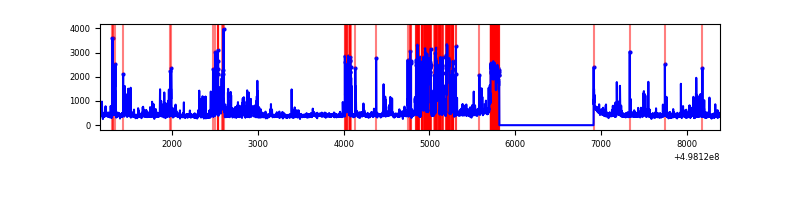

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7233 | 6134 | 268 | 268 | 3.71% | 4.37% |  |
| B | 7234 | 6135 | 16 | 16 | 0.22% | 0.26% |  |
| C | 7233 | 6133 | 268 | 268 | 3.71% | 4.37% |  |
| D | 7233 | 6134 | 2117 | 2117 | 29.27% | 34.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 242 | 846181 | 5291.06 | 643 | 625 | 159.8 |
| A | 5 | 243 | 44768 | 276.22 | 643 | 625 | 159.8 |
| A | 15 | 174 | 27661 | 169.18 | 643 | 625 | 159.8 |
| B | 10 | 247 | 110880 | 809.47 | 638 | 616 | 136.2 |
| B | 0 | 171 | 106733 | 779.02 | 638 | 616 | 136.2 |
| B | 14 | 167 | 88715 | 646.75 | 638 | 616 | 136.2 |
| C | 1 | 241 | 726690 | 4335.85 | 605 | 598 | 167.5 |
| C | 13 | 3 | 329197 | 1962.23 | 605 | 598 | 167.5 |
| C | 12 | 252 | 72597 | 429.94 | 605 | 598 | 167.5 |
| D | 8 | 176 | 4514578 | 32624.14 | 484 | 460 | 138.4 |
| D | 15 | 108 | 1674915 | 12101.51 | 484 | 460 | 138.4 |
| D | 2 | 120 | 106118 | 763.6 | 484 | 460 | 138.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

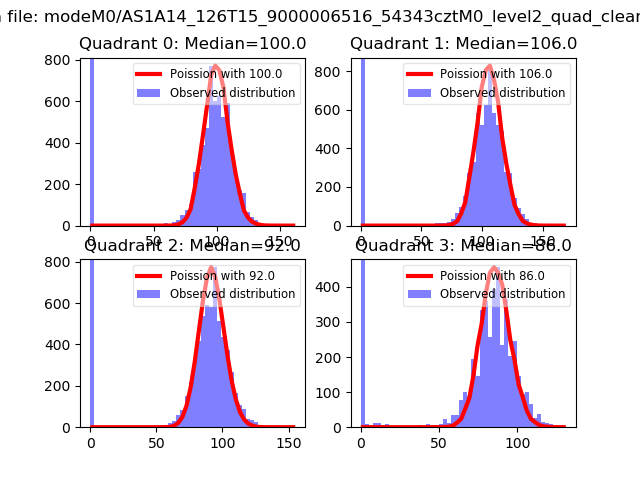

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

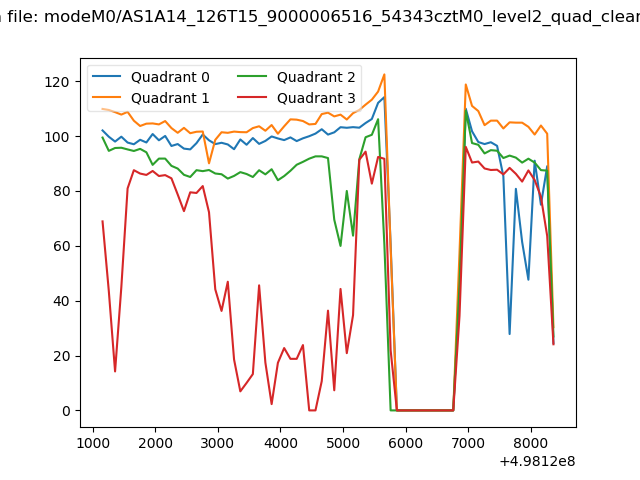

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

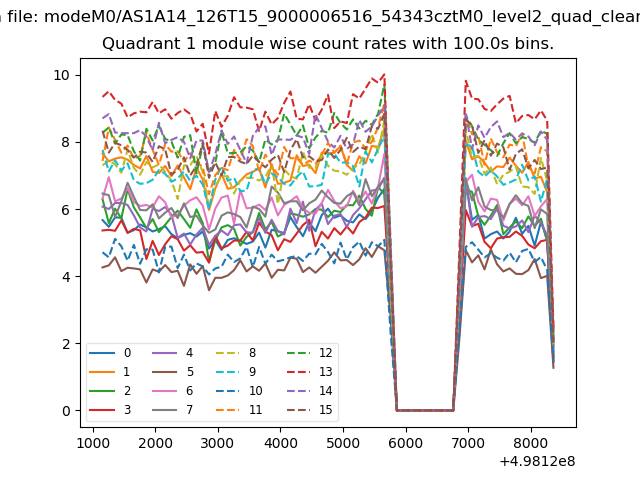

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

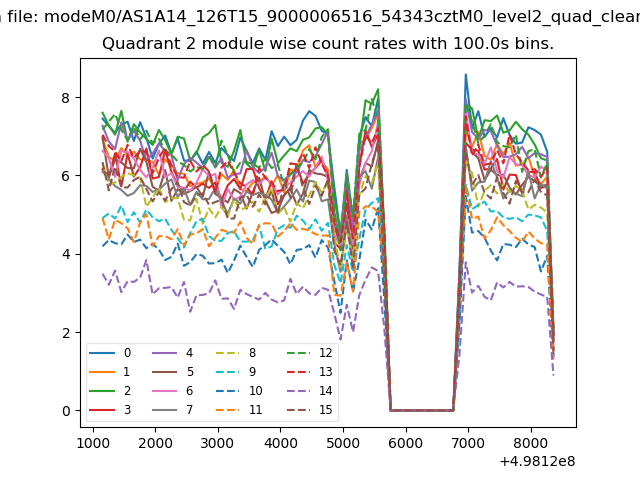

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

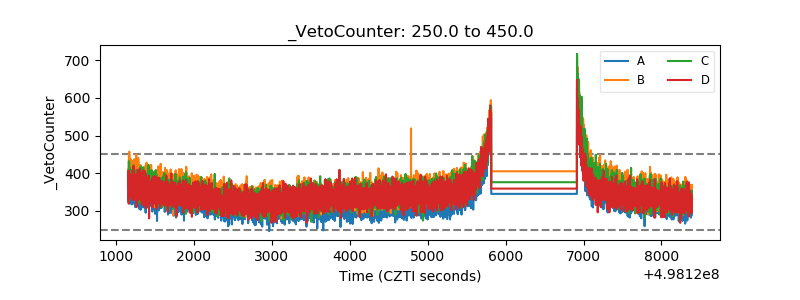

| Veto Counter |  |
