| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T15_9000006516_54351cztM0_level2.fits | modeM0/AS1A14_126T15_9000006516_54351cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,435,564,800 | 195,773,760 |
| Size | 1.3 GB | 186.7 MB |
| Events in quadrant A | 7,687,676 | 1,418,261 |
| Events in quadrant B | 7,690,309 | 1,507,393 |
| Events in quadrant C | 9,903,014 | 1,258,262 |
| Events in quadrant D | 26,681,542 | 692,069 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 314 | 0 |
| B | 0 | 314 | 0 |
| C | 0 | 314 | 0 |
| D | 0 | 314 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34174 | 4 |
| B | 0 | 33964 | 5 |
| C | 0 | 40498 | 4 |
| D | 0 | 89670 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15219 | 268 | 1.760957% |
| B | 15219 | 272 | 1.787240% |
| C | 15219 | 933 | 6.130495% |
| D | 15219 | 7237 | 47.552402% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16879 | 15222 | 200 | 200 | 1.18% | 1.31% |  |
| B | 16879 | 15222 | 167 | 167 | 0.99% | 1.10% |  |
| C | 16879 | 15222 | 911 | 911 | 5.40% | 5.98% |  |
| D | 16878 | 15218 | 7313 | 7313 | 43.33% | 48.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 206 | 345711 | 873.02 | 1603 | 1564 | 394.2 |
| A | 7 | 29 | 283187 | 714.41 | 1603 | 1564 | 394.2 |
| A | 0 | 8 | 276191 | 696.66 | 1603 | 1564 | 394.2 |
| B | 4 | 171 | 292100 | 857.35 | 1587 | 1529 | 338.9 |
| B | 10 | 245 | 229197 | 671.75 | 1587 | 1529 | 338.9 |
| B | 0 | 171 | 215184 | 630.4 | 1587 | 1529 | 338.9 |
| C | 1 | 241 | 1352450 | 3248.8 | 1521 | 1508 | 415.8 |
| C | 12 | 252 | 792859 | 1903.08 | 1521 | 1508 | 415.8 |
| C | 14 | 254 | 659973 | 1583.51 | 1521 | 1508 | 415.8 |
| D | 15 | 108 | 10647268 | 32465.72 | 1139 | 1085 | 327.9 |
| D | 8 | 176 | 10029394 | 30581.5 | 1139 | 1085 | 327.9 |
| D | 12 | 3 | 494027 | 1503.23 | 1139 | 1085 | 327.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

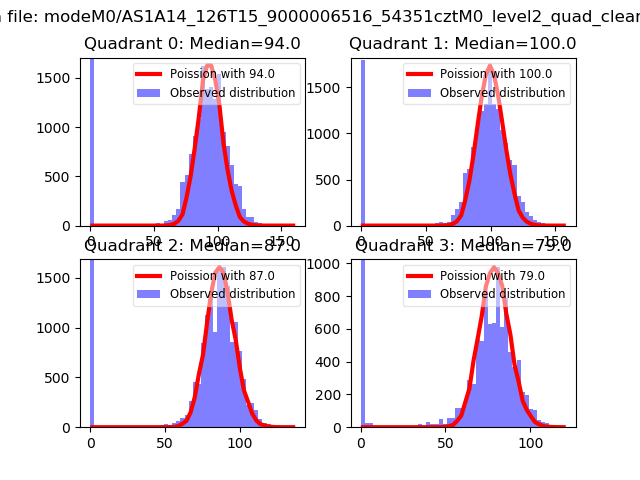

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

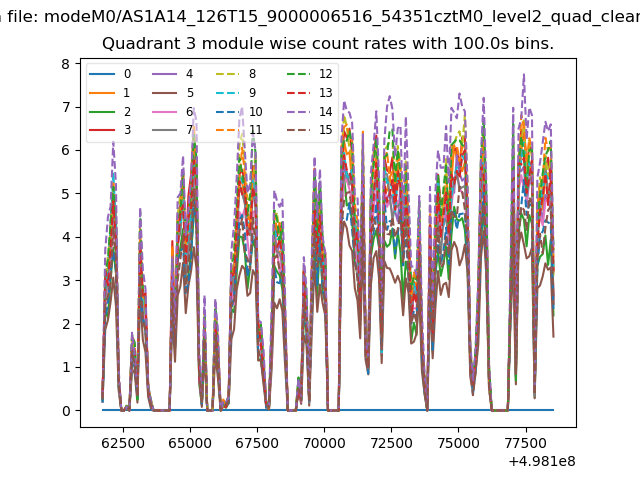

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

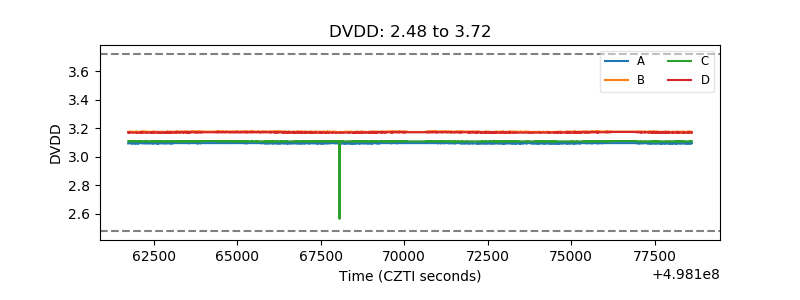

| D_VDD |  |

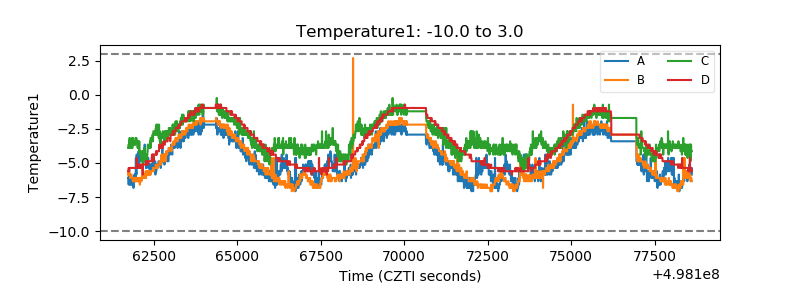

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

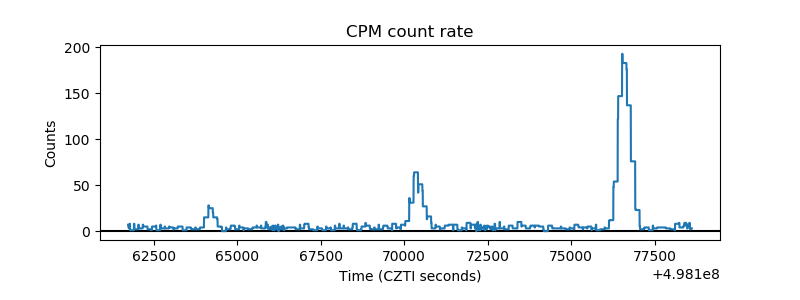

| _CPM_Rate |  |

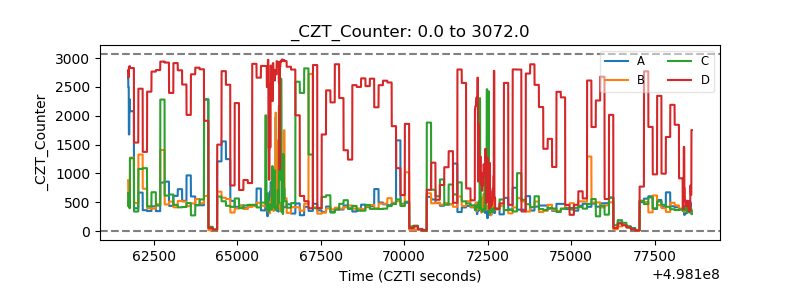

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

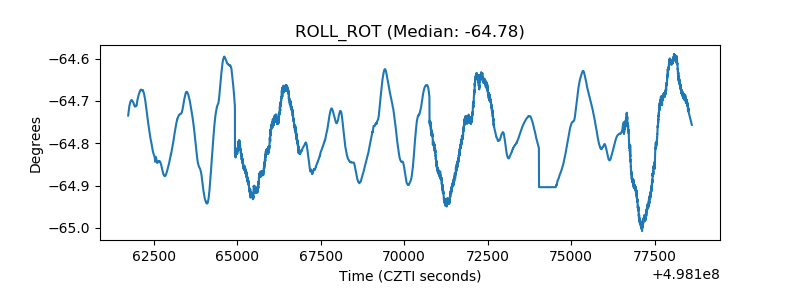

| _ROLL_ROT |  |

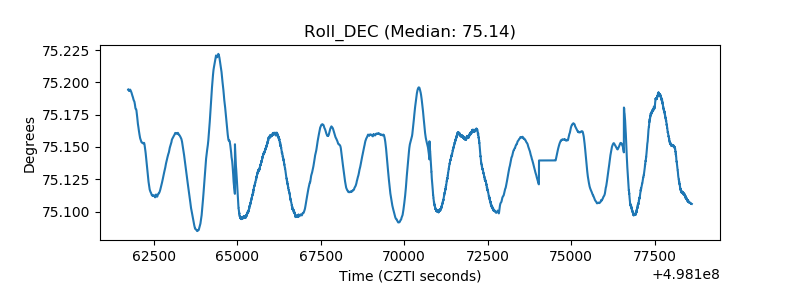

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
