| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54380cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54380cztM0_level2_quad_clean.evt |
| Size (bytes) | 839,053,440 | 115,819,200 |
| Size | 800.2 MB | 110.5 MB |
| Events in quadrant A | 3,973,038 | 839,733 |
| Events in quadrant B | 11,433,343 | 634,273 |
| Events in quadrant C | 8,772,376 | 670,305 |
| Events in quadrant D | 6,173,044 | 729,231 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 202 | 14 |
| B | 0 | 203 | 17 |
| C | 0 | 204 | 16 |
| D | 0 | 203 | 18 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20570 | 1623 |
| B | 0 | 43657 | 3364 |
| C | 0 | 36198 | 3536 |
| D | 0 | 27742 | 2848 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 1 |
| B | 0 | 6 | 2 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9171 | 100 | 1.090394% |
| B | 9088 | 2813 | 30.952905% |
| C | 9109 | 1566 | 17.191788% |
| D | 9122 | 430 | 4.713879% |

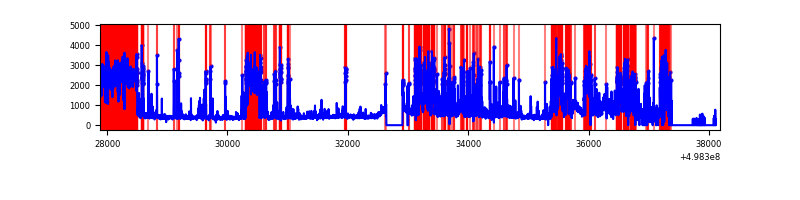

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10298 | 9267 | 8 | 8 | 0.08% | 0.09% |  |
| B | 10240 | 9204 | 2105 | 2105 | 20.56% | 22.87% |  |
| C | 10234 | 9220 | 1454 | 1454 | 14.21% | 15.77% |  |
| D | 10272 | 9209 | 316 | 316 | 3.08% | 3.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 47004 | 195.1 | 954 | 932 | 236.1 |
| A | 7 | 206 | 46353 | 192.35 | 954 | 932 | 236.1 |
| A | 5 | 243 | 42522 | 176.12 | 954 | 932 | 236.1 |
| B | 10 | 14 | 7295866 | 41636.22 | 808 | 778 | 175.2 |
| B | 7 | 0 | 516812 | 2945.23 | 808 | 778 | 175.2 |
| B | 0 | 213 | 191314 | 1087.47 | 808 | 778 | 175.2 |
| C | 1 | 241 | 2581744 | 10799.61 | 868 | 858 | 239.0 |
| C | 13 | 3 | 1701259 | 7115.26 | 868 | 858 | 239.0 |
| C | 15 | 189 | 277335 | 1156.91 | 868 | 858 | 239.0 |
| D | 8 | 176 | 1664342 | 6469.0 | 905 | 863 | 257.1 |
| D | 12 | 3 | 269664 | 1045.32 | 905 | 863 | 257.1 |
| D | 7 | 70 | 163681 | 633.17 | 905 | 863 | 257.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

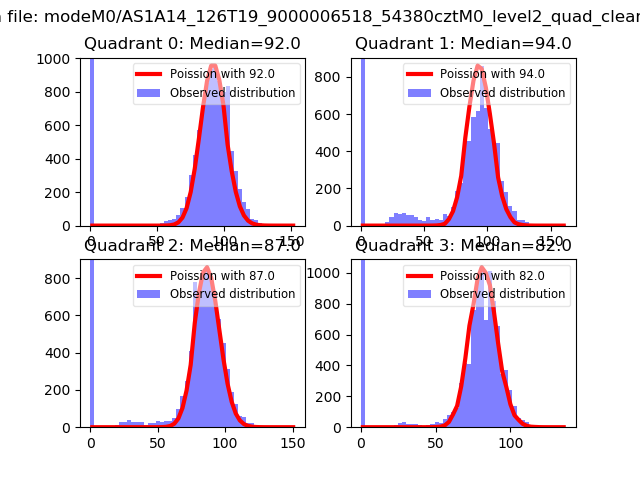

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

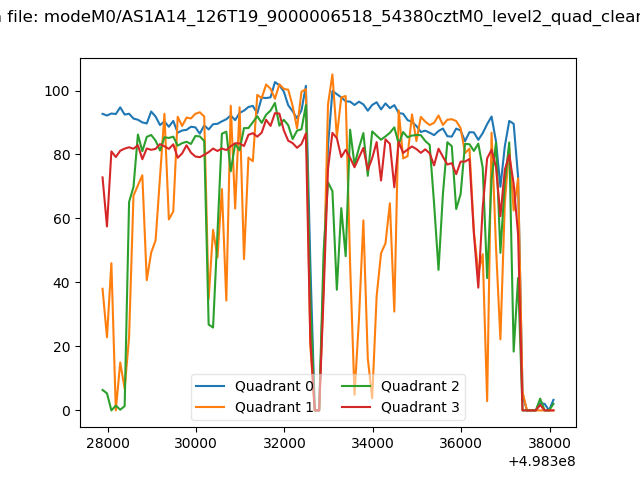

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

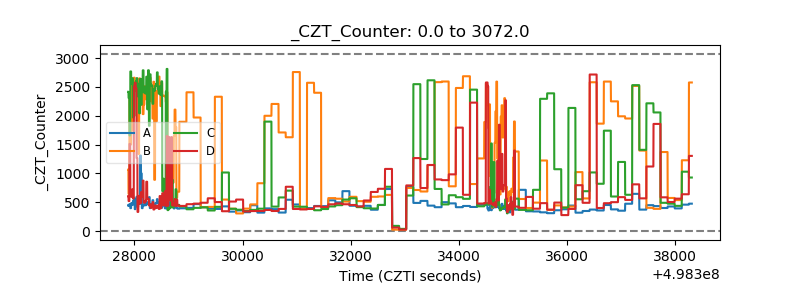

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

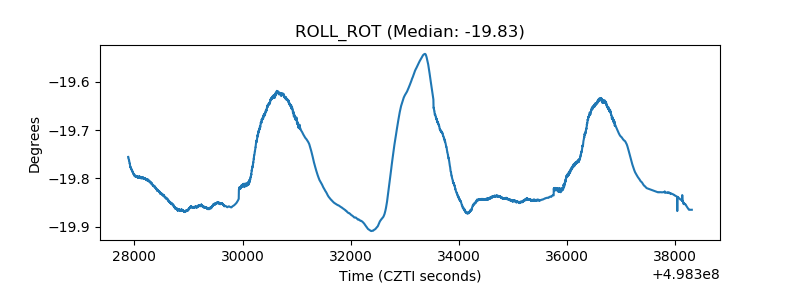

| _ROLL_ROT |  |

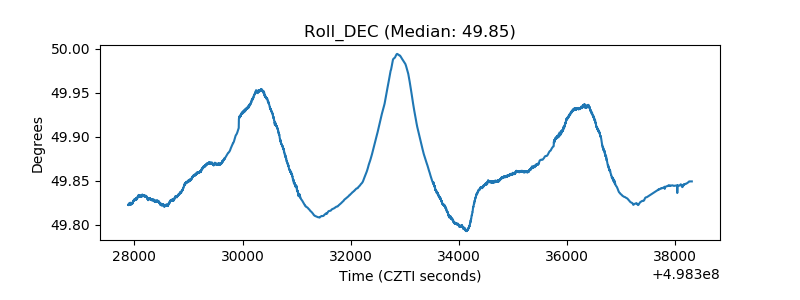

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
