| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54386cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54386cztM0_level2_quad_clean.evt |
| Size (bytes) | 643,109,760 | 80,873,280 |
| Size | 613.3 MB | 77.1 MB |
| Events in quadrant A | 2,699,102 | 617,544 |
| Events in quadrant B | 3,004,872 | 656,912 |
| Events in quadrant C | 3,876,225 | 573,464 |
| Events in quadrant D | 13,736,410 | 161,942 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12864 | 2 |
| B | 0 | 13628 | 2 |
| C | 0 | 16131 | 2 |
| D | 0 | 45103 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6285 | 69 | 1.097852% |
| B | 6285 | 117 | 1.861575% |
| C | 6286 | 288 | 4.581610% |
| D | 6286 | 4709 | 74.912504% |

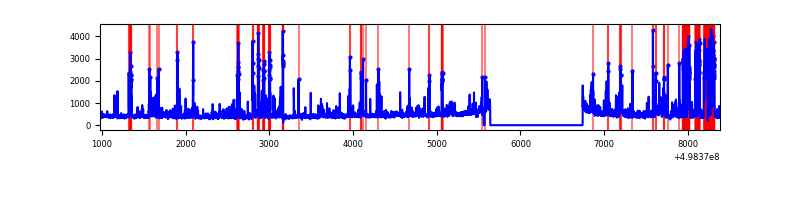

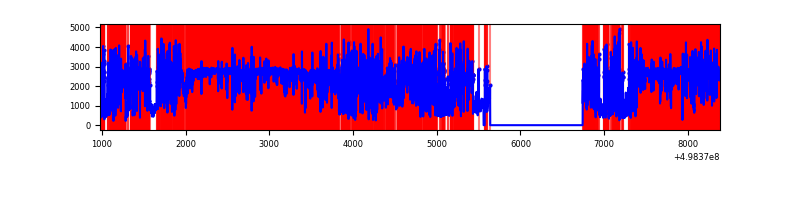

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7405 | 6287 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7405 | 6287 | 17 | 17 | 0.23% | 0.27% |  |
| C | 7406 | 6288 | 256 | 256 | 3.46% | 4.07% |  |
| D | 7405 | 6287 | 4198 | 4198 | 56.69% | 66.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14174 | 80.87 | 680 | 663 | 167.1 |
| A | 3 | 14 | 10267 | 57.49 | 680 | 663 | 167.1 |
| A | 4 | 78 | 9884 | 55.19 | 680 | 663 | 167.1 |
| B | 0 | 171 | 162348 | 1123.24 | 667 | 644 | 144.0 |
| B | 0 | 213 | 90499 | 624.16 | 667 | 644 | 144.0 |
| B | 5 | 185 | 34411 | 234.55 | 667 | 644 | 144.0 |
| C | 1 | 241 | 586387 | 3340.96 | 642 | 638 | 175.3 |
| C | 14 | 254 | 223007 | 1268.34 | 642 | 638 | 175.3 |
| C | 13 | 16 | 222367 | 1264.69 | 642 | 638 | 175.3 |
| D | 8 | 176 | 11892542 | 125034.14 | 333 | 317 | 95.1 |
| D | 2 | 120 | 144118 | 1511.92 | 333 | 317 | 95.1 |
| D | 2 | 172 | 80444 | 842.45 | 333 | 317 | 95.1 |

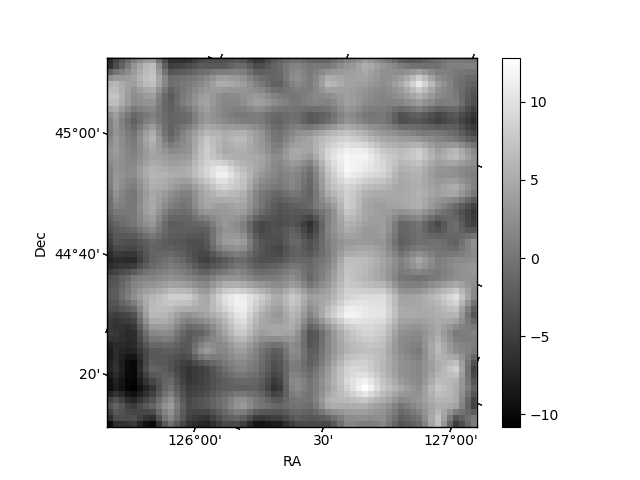

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

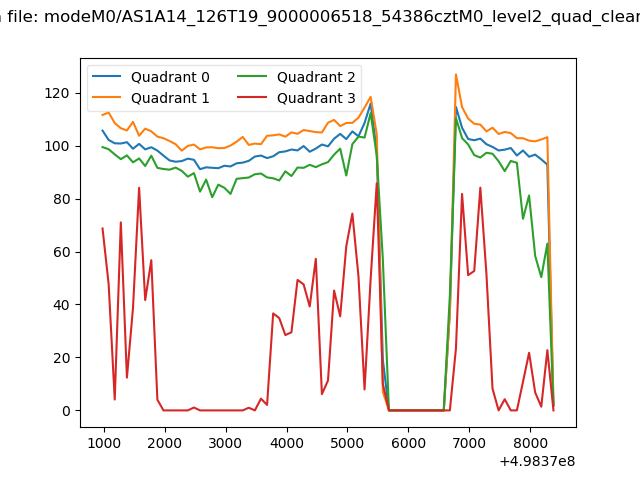

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

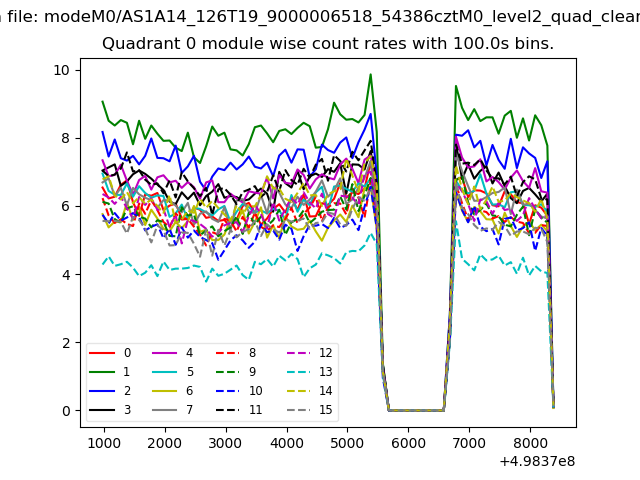

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

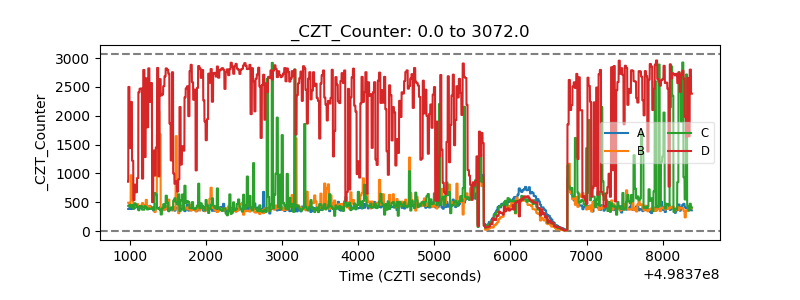

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

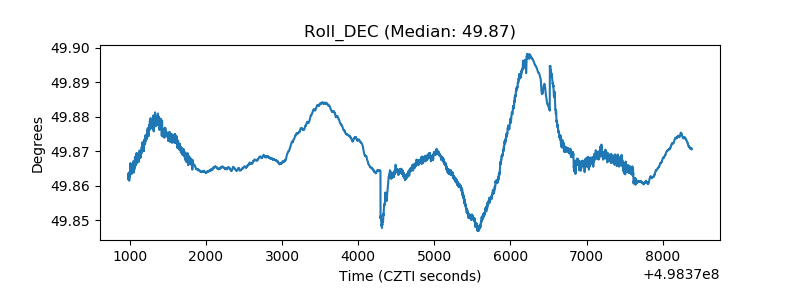

| _Roll_DEC |  |

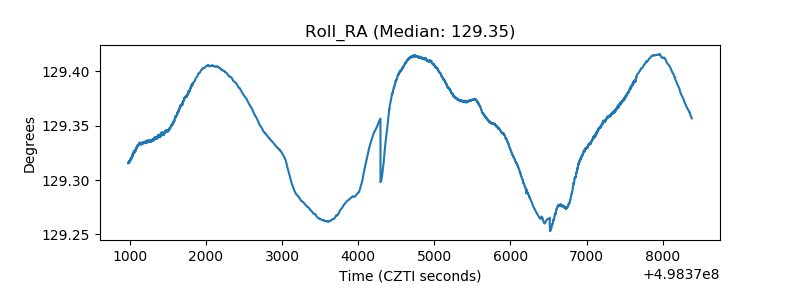

| _Roll_RA |  |
| Veto Counter |  |
