| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54387cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54387cztM0_level2_quad_clean.evt |
| Size (bytes) | 619,248,960 | 73,958,400 |
| Size | 590.6 MB | 70.5 MB |
| Events in quadrant A | 2,572,549 | 571,004 |
| Events in quadrant B | 2,627,421 | 613,422 |
| Events in quadrant C | 4,233,300 | 507,998 |
| Events in quadrant D | 13,028,574 | 133,753 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12200 | 1 |
| B | 0 | 12348 | 2 |
| C | 0 | 16863 | 1 |
| D | 0 | 42783 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5916 | 58 | 0.980392% |
| B | 5916 | 74 | 1.250845% |
| C | 5916 | 475 | 8.029074% |
| D | 5916 | 4584 | 77.484787% |

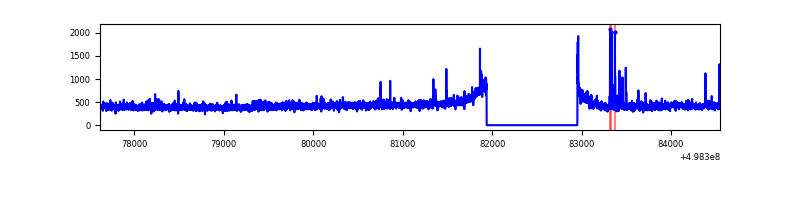

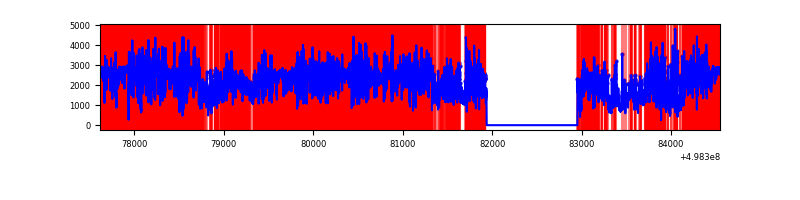

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6931 | 5917 | 3 | 3 | 0.04% | 0.05% |  |
| B | 6931 | 5917 | 5 | 5 | 0.07% | 0.08% |  |
| C | 6931 | 5917 | 439 | 439 | 6.33% | 7.42% |  |
| D | 6930 | 5916 | 3852 | 3852 | 55.58% | 65.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 62 | 35574 | 222.42 | 639 | 623 | 157.1 |
| A | 13 | 254 | 13291 | 80.62 | 639 | 623 | 157.1 |
| A | 4 | 3 | 12126 | 73.2 | 639 | 623 | 157.1 |
| B | 0 | 171 | 61720 | 448.85 | 628 | 605 | 136.2 |
| B | 12 | 111 | 16043 | 113.38 | 628 | 605 | 136.2 |
| B | 11 | 111 | 15297 | 107.9 | 628 | 605 | 136.2 |
| C | 1 | 241 | 1243246 | 7686.43 | 591 | 586 | 161.7 |
| C | 14 | 254 | 208819 | 1288.02 | 591 | 586 | 161.7 |
| C | 13 | 16 | 97301 | 598.23 | 591 | 586 | 161.7 |
| D | 8 | 176 | 10467265 | 123329.0 | 298 | 285 | 84.9 |
| D | 2 | 172 | 886994 | 10447.8 | 298 | 285 | 84.9 |
| D | 2 | 252 | 227095 | 2672.43 | 298 | 285 | 84.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

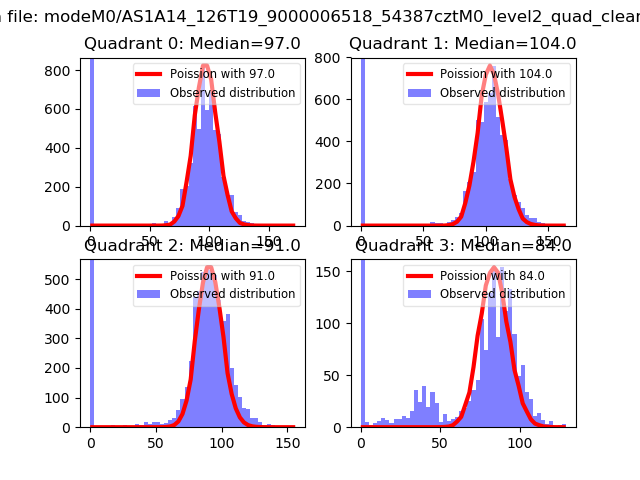

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

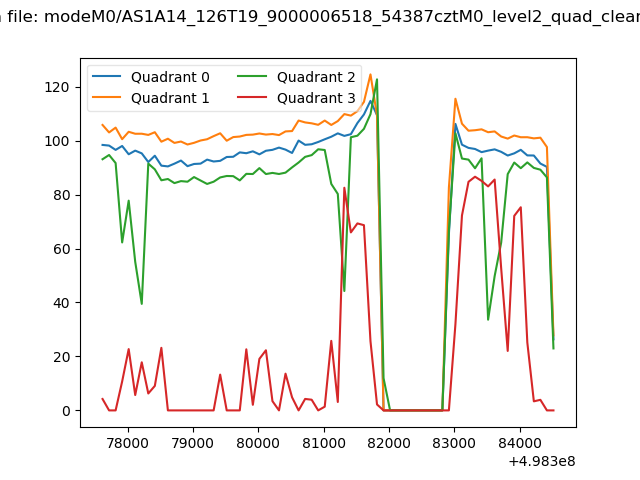

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

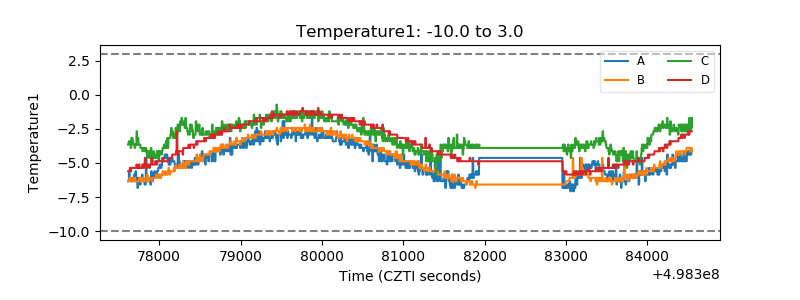

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

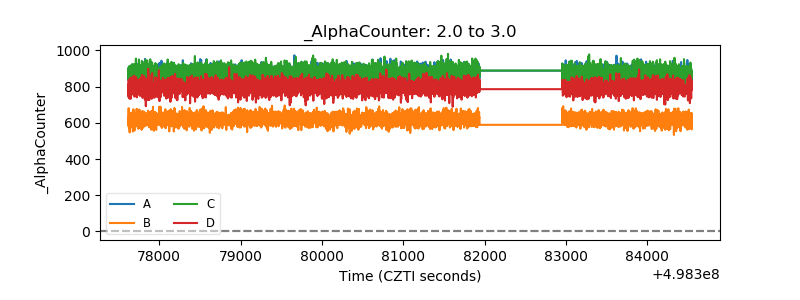

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

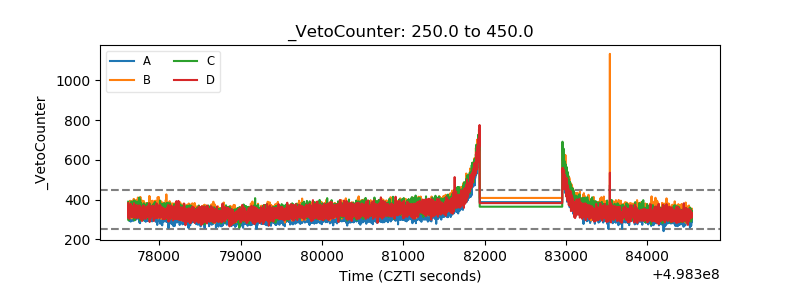

| Veto Counter |  |
