| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54395cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54395cztM0_level2_quad_clean.evt |
| Size (bytes) | 660,700,800 | 85,878,720 |
| Size | 630.1 MB | 81.9 MB |
| Events in quadrant A | 3,052,650 | 622,760 |
| Events in quadrant B | 3,265,353 | 655,539 |
| Events in quadrant C | 5,280,434 | 528,482 |
| Events in quadrant D | 12,342,317 | 329,829 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14082 | 1 |
| B | 0 | 14748 | 1 |
| C | 0 | 20744 | 1 |
| D | 0 | 41297 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6649 | 63 | 0.947511% |
| B | 6650 | 132 | 1.984962% |
| C | 6650 | 817 | 12.285714% |
| D | 6650 | 3091 | 46.481203% |

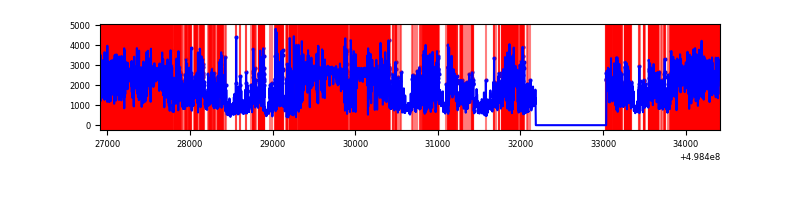

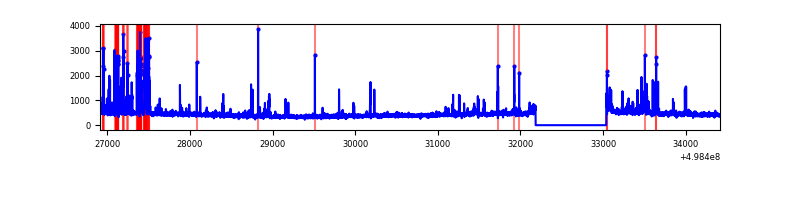

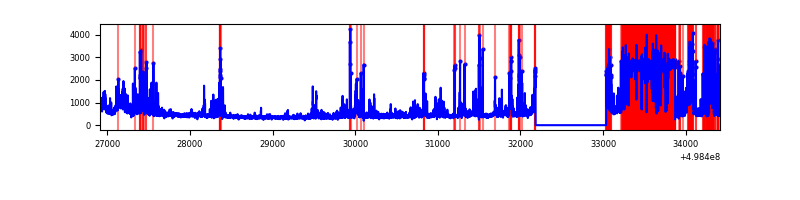

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7504 | 6650 | 31 | 31 | 0.41% | 0.47% |  |
| B | 7505 | 6651 | 75 | 75 | 1.00% | 1.13% |  |
| C | 7505 | 6650 | 734 | 734 | 9.78% | 11.04% |  |
| D | 7504 | 6650 | 2905 | 2905 | 38.71% | 43.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 15 | 175688 | 1007.84 | 701 | 685 | 173.6 |
| A | 3 | 14 | 48085 | 272.98 | 701 | 685 | 173.6 |
| A | 3 | 110 | 22848 | 127.64 | 701 | 685 | 173.6 |
| B | 10 | 14 | 303570 | 2037.11 | 693 | 671 | 148.7 |
| B | 0 | 213 | 67751 | 451.14 | 693 | 671 | 148.7 |
| B | 5 | 172 | 21289 | 138.66 | 693 | 671 | 148.7 |
| C | 1 | 241 | 1756222 | 9893.07 | 640 | 635 | 177.5 |
| C | 13 | 3 | 247655 | 1392.01 | 640 | 635 | 177.5 |
| C | 14 | 254 | 204955 | 1151.38 | 640 | 635 | 177.5 |
| D | 8 | 176 | 7319715 | 47575.17 | 536 | 510 | 153.8 |
| D | 2 | 172 | 1122935 | 7295.81 | 536 | 510 | 153.8 |
| D | 2 | 62 | 1064603 | 6916.65 | 536 | 510 | 153.8 |

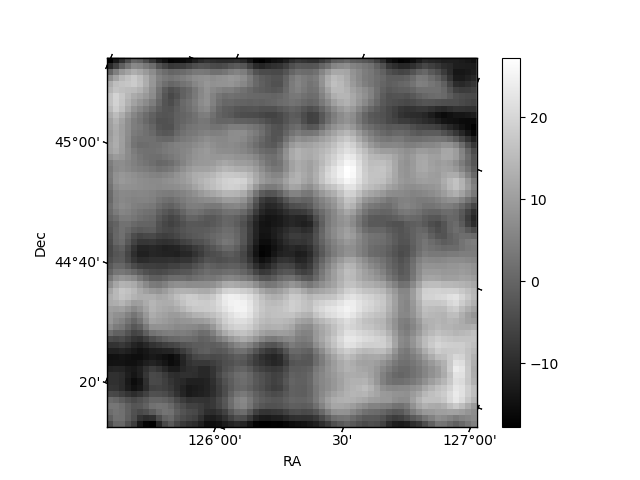

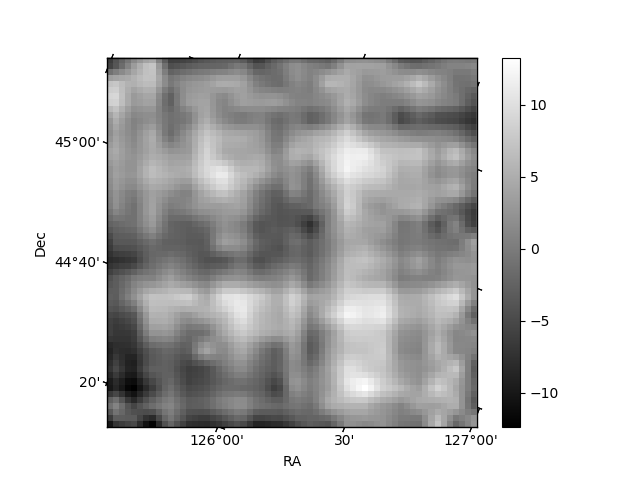

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

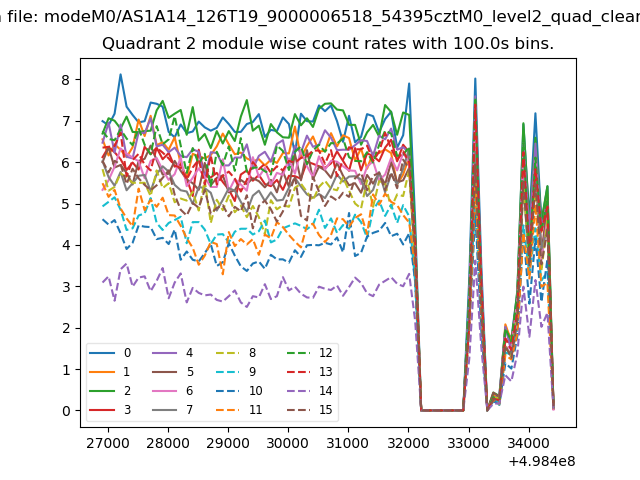

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

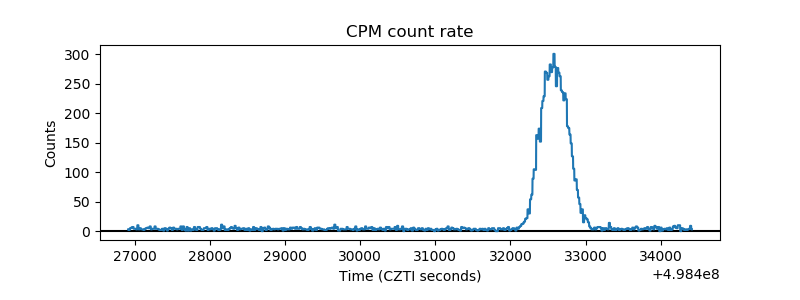

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

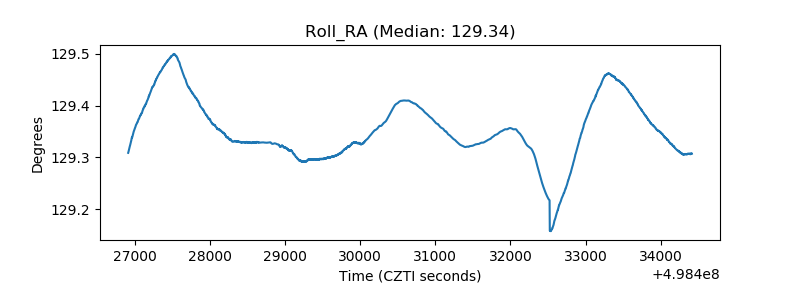

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
