| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54400cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54400cztM0_level2_quad_clean.evt |
| Size (bytes) | 653,549,760 | 80,665,920 |
| Size | 623.3 MB | 76.9 MB |
| Events in quadrant A | 2,926,265 | 601,184 |
| Events in quadrant B | 2,941,473 | 652,814 |
| Events in quadrant C | 6,504,523 | 474,599 |
| Events in quadrant D | 11,340,903 | 283,173 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13463 | 1 |
| B | 0 | 13419 | 1 |
| C | 0 | 23682 | 1 |
| D | 0 | 37967 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6172 | 102 | 1.652625% |
| B | 6172 | 69 | 1.117952% |
| C | 6173 | 1239 | 20.071278% |
| D | 6173 | 3198 | 51.806253% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7372 | 6173 | 62 | 62 | 0.84% | 1.00% |  |
| B | 7372 | 6173 | 35 | 35 | 0.47% | 0.57% |  |
| C | 7373 | 6174 | 1207 | 1207 | 16.37% | 19.55% |  |
| D | 7373 | 6174 | 3051 | 3051 | 41.38% | 49.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 15 | 350118 | 2192.94 | 649 | 632 | 159.4 |
| A | 4 | 3 | 19163 | 116.28 | 649 | 632 | 159.4 |
| A | 3 | 62 | 15626 | 94.08 | 649 | 632 | 159.4 |
| B | 10 | 14 | 286743 | 2057.78 | 646 | 622 | 139.0 |
| B | 4 | 81 | 30896 | 217.73 | 646 | 622 | 139.0 |
| B | 10 | 247 | 20175 | 140.63 | 646 | 622 | 139.0 |
| C | 1 | 241 | 3046578 | 19595.13 | 562 | 556 | 155.4 |
| C | 4 | 5 | 937080 | 6024.68 | 562 | 556 | 155.4 |
| C | 14 | 254 | 103429 | 661.78 | 562 | 556 | 155.4 |
| D | 8 | 176 | 7657123 | 65481.54 | 404 | 384 | 116.9 |
| D | 2 | 62 | 1687058 | 14424.68 | 404 | 384 | 116.9 |
| D | 3 | 12 | 117895 | 1004.97 | 404 | 384 | 116.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

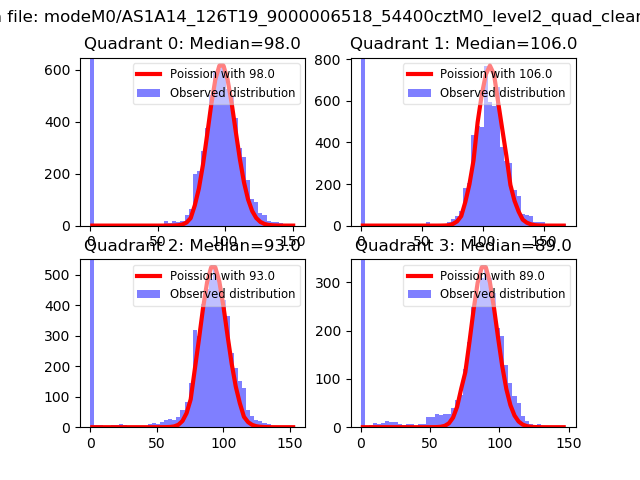

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

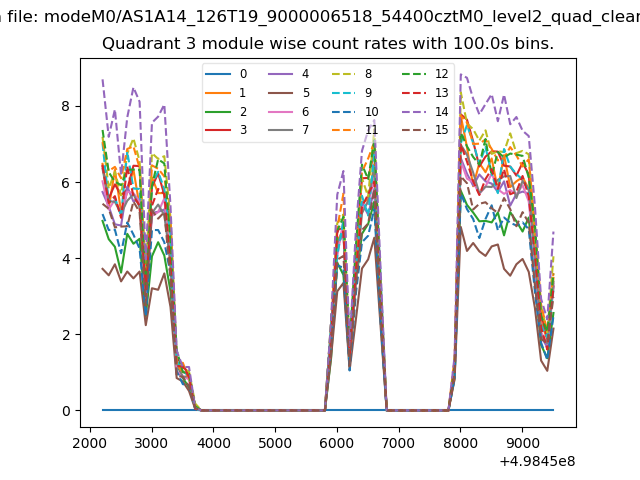

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

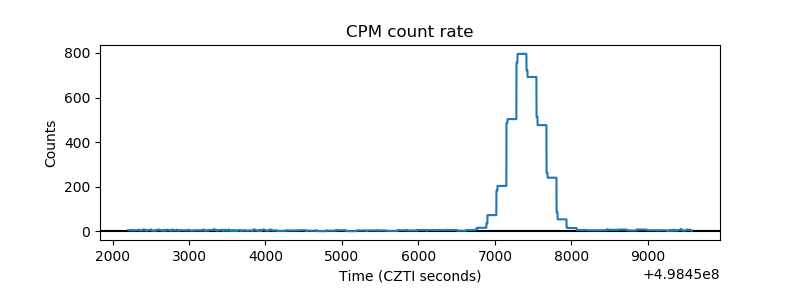

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

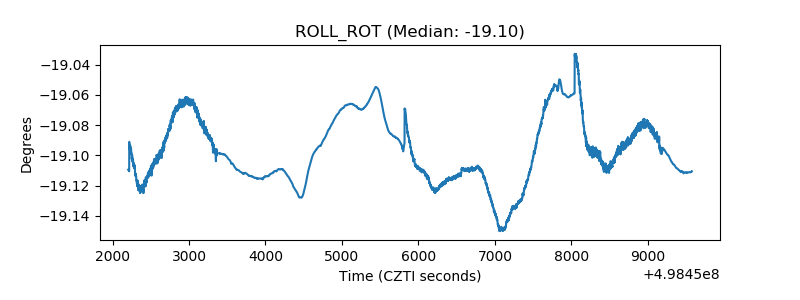

| _ROLL_ROT |  |
| _Roll_DEC |  |

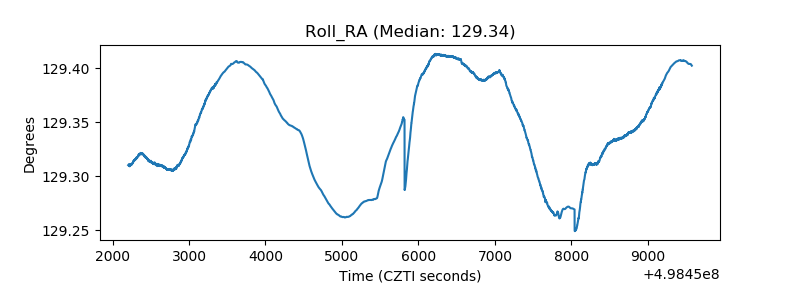

| _Roll_RA |  |
| Veto Counter |  |
