| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54401cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54401cztM0_level2_quad_clean.evt |
| Size (bytes) | 661,296,960 | 72,112,320 |
| Size | 630.7 MB | 68.8 MB |
| Events in quadrant A | 2,525,277 | 565,835 |
| Events in quadrant B | 2,766,325 | 602,655 |
| Events in quadrant C | 5,095,233 | 492,611 |
| Events in quadrant D | 13,639,072 | 114,623 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12046 | 1 |
| B | 0 | 12750 | 1 |
| C | 0 | 19318 | 1 |
| D | 0 | 44519 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5828 | 18 | 0.308854% |
| B | 5828 | 90 | 1.544269% |
| C | 5828 | 644 | 11.050103% |
| D | 5828 | 4676 | 80.233356% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

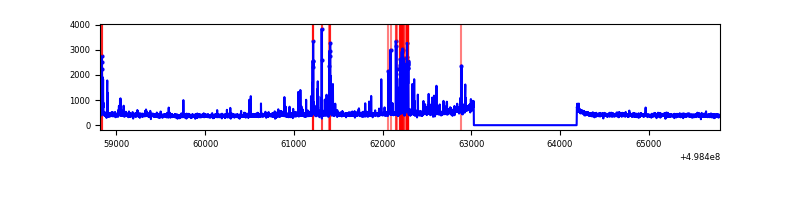

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6988 | 5829 | 6 | 6 | 0.09% | 0.10% |  |
| B | 6988 | 5829 | 50 | 50 | 0.72% | 0.86% |  |
| C | 6988 | 5829 | 601 | 601 | 8.60% | 10.31% |  |
| D | 6987 | 5828 | 4565 | 4565 | 65.34% | 78.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 15 | 66707 | 435.53 | 618 | 603 | 151.8 |
| A | 3 | 62 | 23143 | 148.51 | 618 | 603 | 151.8 |
| A | 4 | 3 | 19132 | 122.08 | 618 | 603 | 151.8 |
| B | 10 | 14 | 290749 | 2215.19 | 607 | 587 | 131.0 |
| B | 10 | 247 | 22197 | 164.98 | 607 | 587 | 131.0 |
| B | 12 | 111 | 15487 | 113.75 | 607 | 587 | 131.0 |
| C | 4 | 5 | 2565505 | 16583.53 | 560 | 555 | 154.7 |
| C | 14 | 254 | 183122 | 1180.38 | 560 | 555 | 154.7 |
| C | 13 | 3 | 104832 | 674.2 | 560 | 555 | 154.7 |
| D | 8 | 176 | 11927032 | 141143.35 | 296 | 283 | 84.5 |
| D | 2 | 62 | 337316 | 3988.51 | 296 | 283 | 84.5 |
| D | 2 | 172 | 49208 | 578.99 | 296 | 283 | 84.5 |

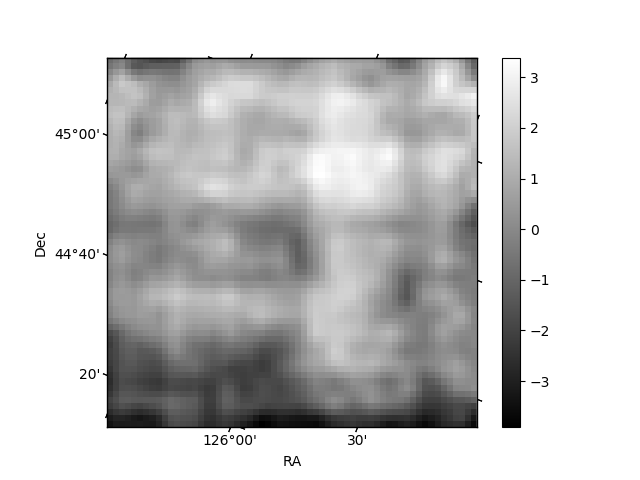

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

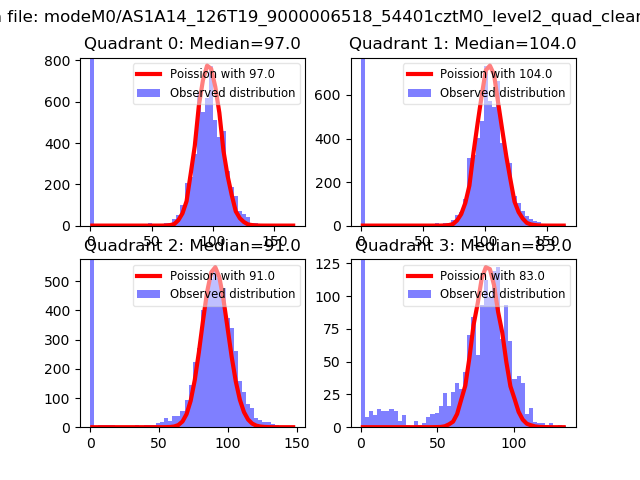

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

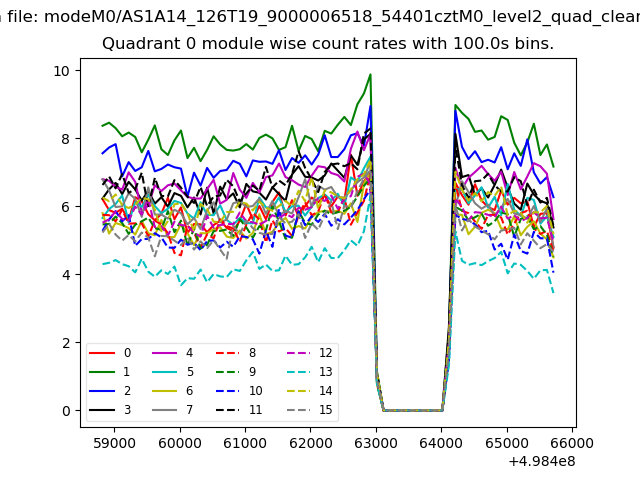

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

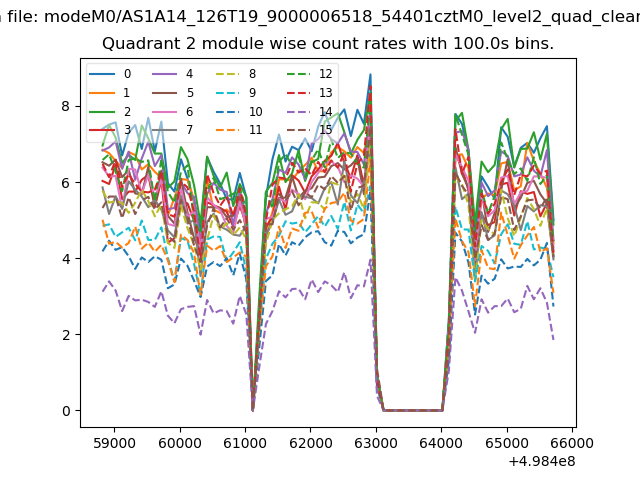

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

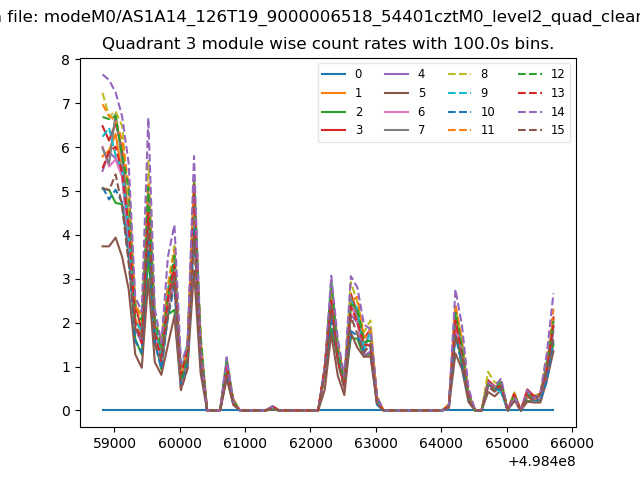

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

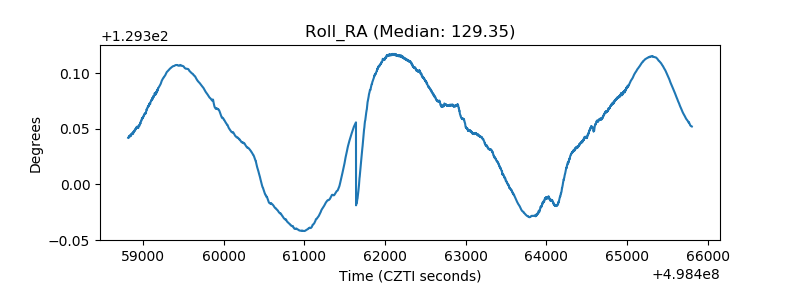

| _ROLL_ROT |  |

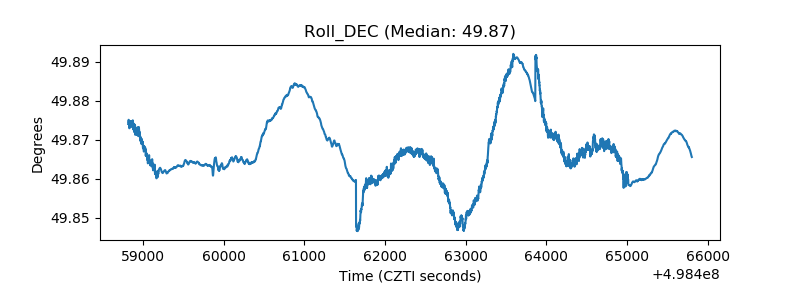

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
