| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54403cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54403cztM0_level2_quad_clean.evt |
| Size (bytes) | 660,286,080 | 81,440,640 |
| Size | 629.7 MB | 77.7 MB |
| Events in quadrant A | 2,879,737 | 602,121 |
| Events in quadrant B | 3,321,627 | 640,125 |
| Events in quadrant C | 6,093,903 | 482,167 |
| Events in quadrant D | 11,637,134 | 284,499 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13637 | 1 |
| B | 0 | 14655 | 1 |
| C | 0 | 22924 | 1 |
| D | 0 | 39083 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6546 | 178 | 2.719218% |
| B | 6547 | 256 | 3.910188% |
| C | 6547 | 1249 | 19.077440% |
| D | 6547 | 3454 | 52.756988% |

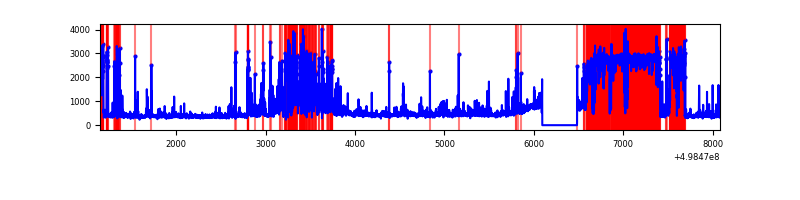

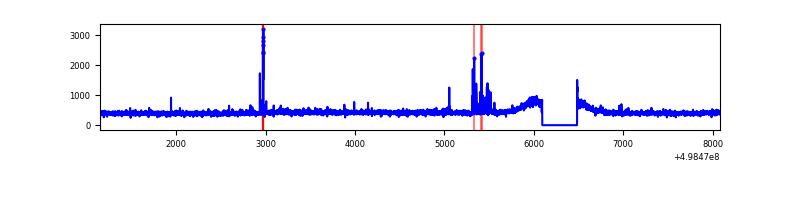

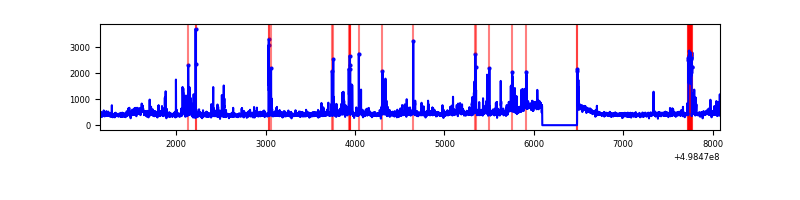

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6936 | 6547 | 9 | 9 | 0.13% | 0.14% |  |
| B | 6937 | 6547 | 55 | 55 | 0.79% | 0.84% |  |
| C | 6937 | 6547 | 1098 | 1098 | 15.83% | 16.77% |  |
| D | 6937 | 6547 | 2776 | 2776 | 40.02% | 42.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 15 | 47414 | 267.0 | 707 | 689 | 175.0 |
| A | 4 | 3 | 39362 | 220.99 | 707 | 689 | 175.0 |
| A | 8 | 246 | 29708 | 165.82 | 707 | 689 | 175.0 |
| B | 0 | 213 | 203672 | 1363.98 | 687 | 661 | 148.8 |
| B | 10 | 247 | 104429 | 697.19 | 687 | 661 | 148.8 |
| B | 10 | 14 | 79033 | 526.56 | 687 | 661 | 148.8 |
| C | 1 | 241 | 2571445 | 15131.96 | 620 | 612 | 169.9 |
| C | 13 | 3 | 802133 | 4717.76 | 620 | 612 | 169.9 |
| C | 14 | 254 | 128250 | 751.28 | 620 | 612 | 169.9 |
| D | 8 | 176 | 8730245 | 63359.3 | 477 | 455 | 137.8 |
| D | 2 | 172 | 322971 | 2340.76 | 477 | 455 | 137.8 |
| D | 3 | 12 | 155059 | 1122.09 | 477 | 455 | 137.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

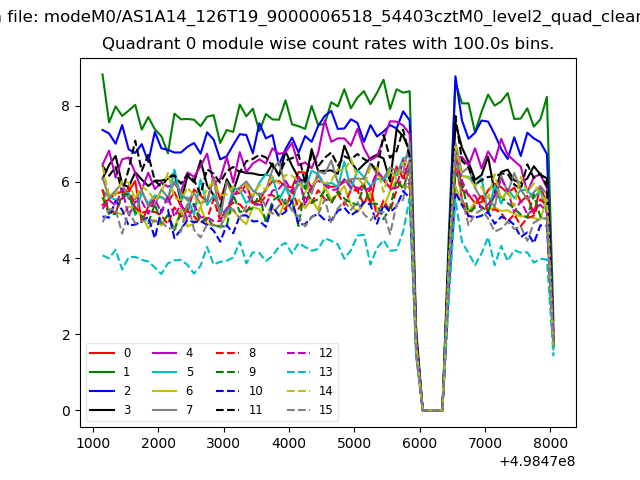

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

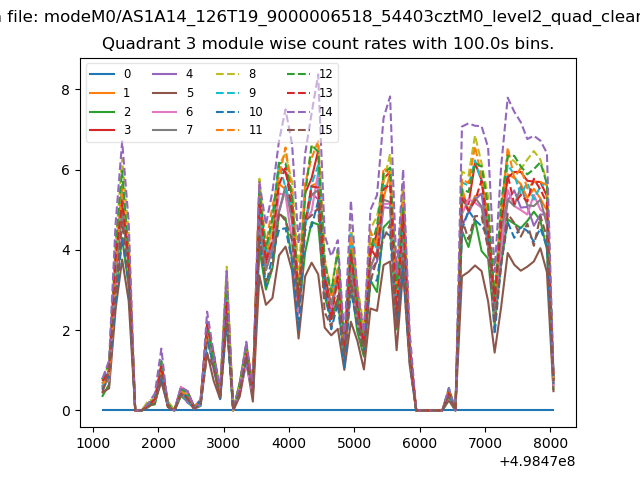

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

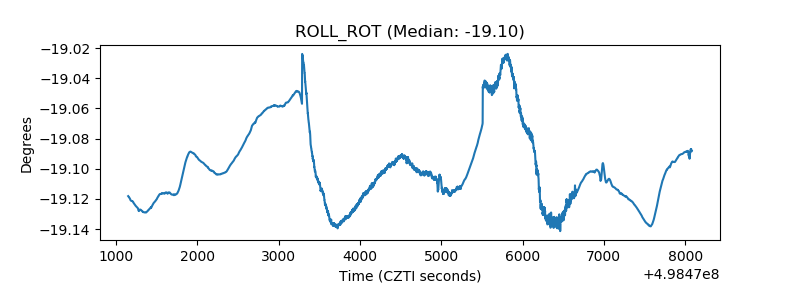

| _ROLL_ROT |  |

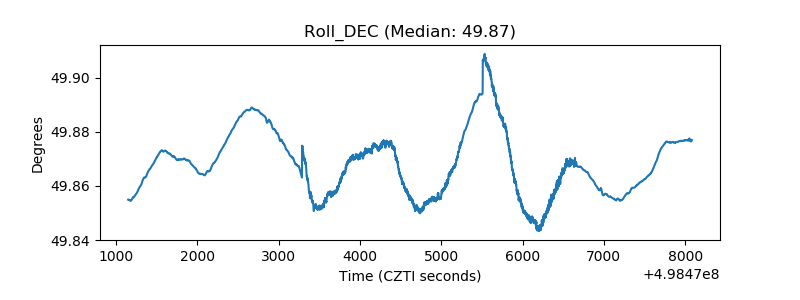

| _Roll_DEC |  |

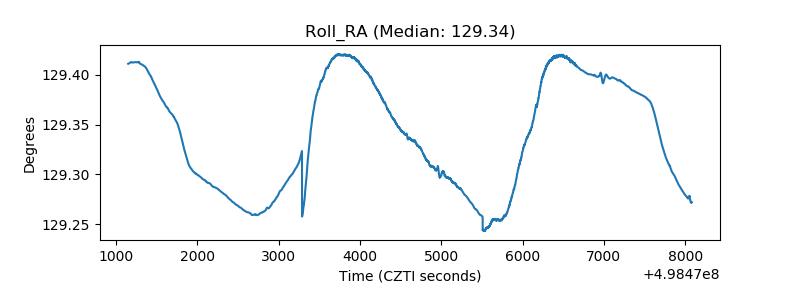

| _Roll_RA |  |
| Veto Counter |  |
