| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54412cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54412cztM0_level2_quad_clean.evt |
| Size (bytes) | 602,835,840 | 95,002,560 |
| Size | 574.9 MB | 90.6 MB |
| Events in quadrant A | 3,537,733 | 678,249 |
| Events in quadrant B | 3,208,723 | 713,994 |
| Events in quadrant C | 7,345,012 | 494,335 |
| Events in quadrant D | 7,695,005 | 515,487 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15590 | 2 |
| B | 0 | 14656 | 2 |
| C | 0 | 26692 | 2 |
| D | 0 | 27588 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6807 | 72 | 1.057735% |
| B | 6808 | 77 | 1.131022% |
| C | 6808 | 1733 | 25.455347% |
| D | 6807 | 1259 | 18.495666% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8722 | 6808 | 30 | 30 | 0.34% | 0.44% |  |
| B | 8723 | 6808 | 14 | 14 | 0.16% | 0.21% |  |
| C | 8722 | 6807 | 1674 | 1674 | 19.19% | 24.59% |  |
| D | 8722 | 6807 | 1261 | 1261 | 14.46% | 18.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 206 | 459135 | 2473.58 | 739 | 717 | 185.3 |
| A | 0 | 8 | 102568 | 549.58 | 739 | 717 | 185.3 |
| A | 11 | 31 | 29439 | 154.98 | 739 | 717 | 185.3 |
| B | 0 | 213 | 117227 | 744.81 | 730 | 705 | 156.4 |
| B | 10 | 247 | 84768 | 537.33 | 730 | 705 | 156.4 |
| B | 5 | 185 | 51924 | 327.39 | 730 | 705 | 156.4 |
| C | 1 | 241 | 4437208 | 25288.58 | 632 | 625 | 175.4 |
| C | 14 | 254 | 140923 | 799.7 | 632 | 625 | 175.4 |
| C | 1 | 29 | 70177 | 396.45 | 632 | 625 | 175.4 |
| D | 8 | 176 | 2420365 | 12787.89 | 659 | 630 | 189.2 |
| D | 15 | 108 | 1679333 | 8871.66 | 659 | 630 | 189.2 |
| D | 2 | 172 | 445142 | 2349.17 | 659 | 630 | 189.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

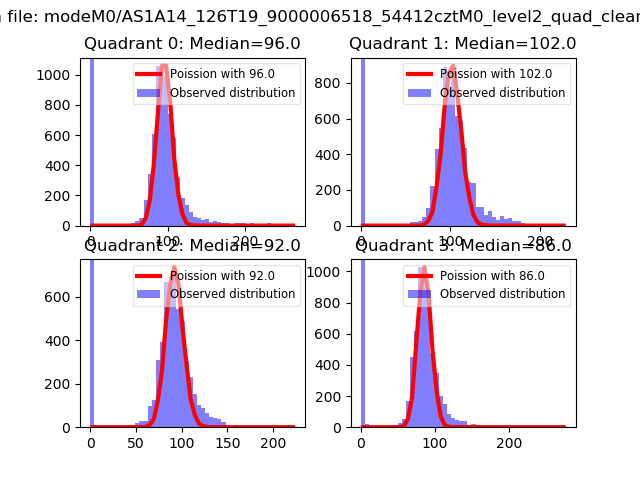

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

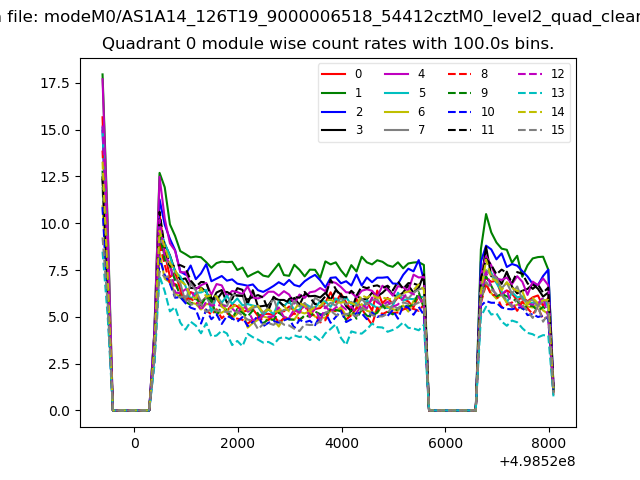

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

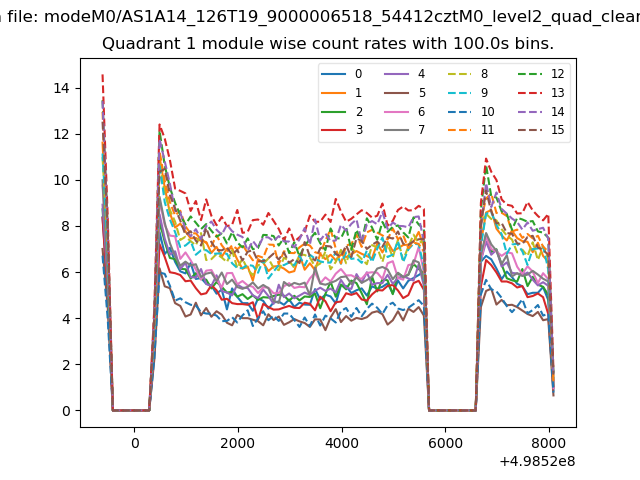

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

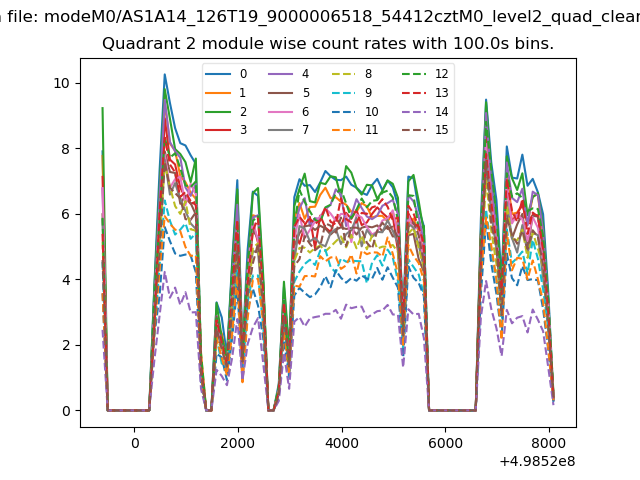

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

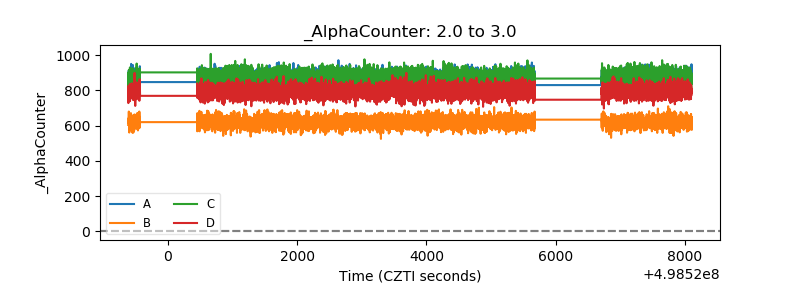

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

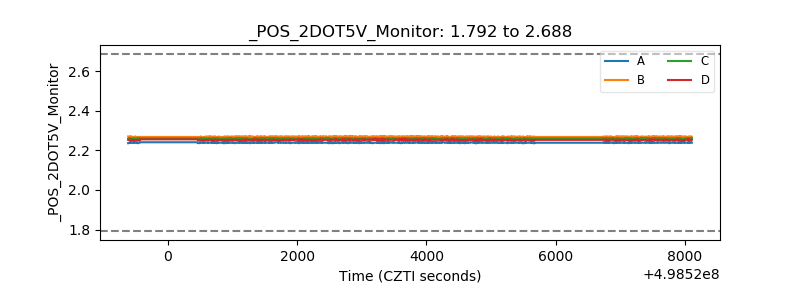

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

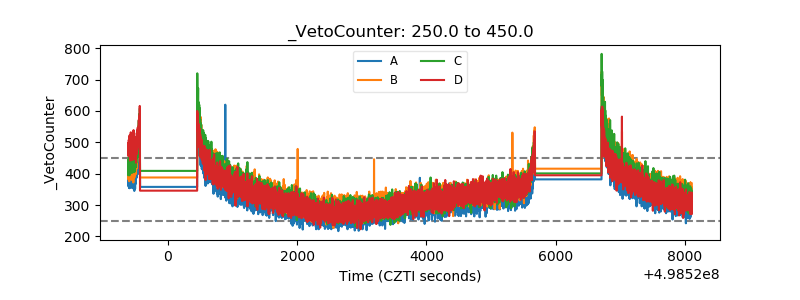

| Veto Counter |  |
