| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54429cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54429cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,024,000 | 94,711,680 |
| Size | 475.0 MB | 90.3 MB |
| Events in quadrant A | 2,908,568 | 652,176 |
| Events in quadrant B | 3,491,834 | 689,040 |
| Events in quadrant C | 5,587,738 | 553,836 |
| Events in quadrant D | 5,926,638 | 506,018 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13858 | 2 |
| B | 0 | 15450 | 2 |
| C | 0 | 21444 | 2 |
| D | 0 | 22400 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6689 | 43 | 0.642846% |
| B | 6689 | 241 | 3.602930% |
| C | 6689 | 884 | 13.215727% |
| D | 6689 | 996 | 14.890118% |

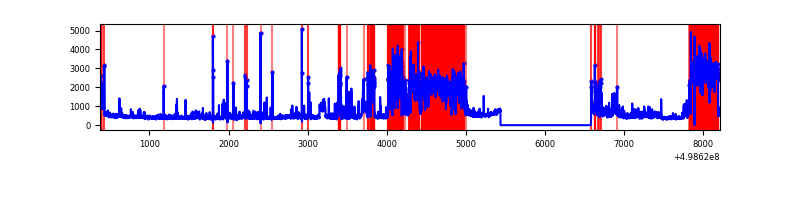

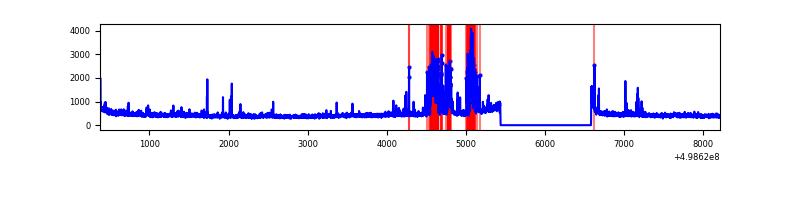

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7834 | 6690 | 12 | 12 | 0.15% | 0.18% |  |
| B | 7834 | 6690 | 156 | 156 | 1.99% | 2.33% |  |
| C | 7834 | 6690 | 830 | 830 | 10.59% | 12.41% |  |
| D | 7834 | 6690 | 933 | 933 | 11.91% | 13.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 237 | 38490 | 211.77 | 710 | 693 | 178.5 |
| A | 4 | 3 | 26338 | 143.68 | 710 | 693 | 178.5 |
| A | 0 | 8 | 25229 | 137.47 | 710 | 693 | 178.5 |
| B | 5 | 185 | 334878 | 2216.74 | 699 | 675 | 150.8 |
| B | 10 | 247 | 239863 | 1586.51 | 699 | 675 | 150.8 |
| B | 0 | 213 | 49204 | 321.89 | 699 | 675 | 150.8 |
| C | 1 | 241 | 1490598 | 8448.32 | 646 | 642 | 176.4 |
| C | 13 | 3 | 852436 | 4829.83 | 646 | 642 | 176.4 |
| C | 1 | 16 | 179471 | 1013.99 | 646 | 642 | 176.4 |
| D | 8 | 176 | 1949572 | 10813.71 | 632 | 604 | 180.2 |
| D | 7 | 70 | 1006052 | 5578.66 | 632 | 604 | 180.2 |
| D | 6 | 239 | 83360 | 459.17 | 632 | 604 | 180.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

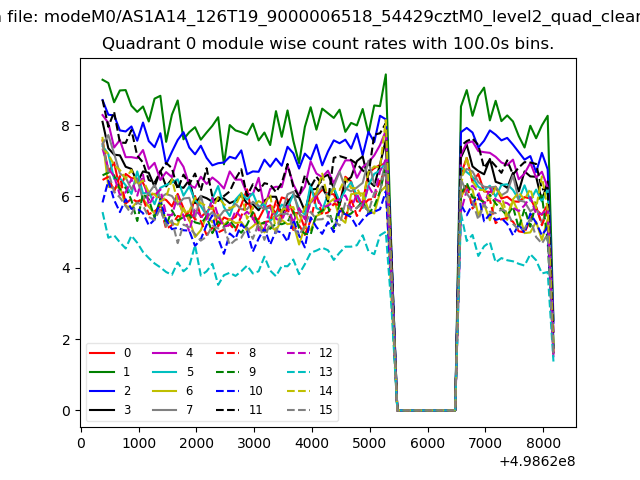

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

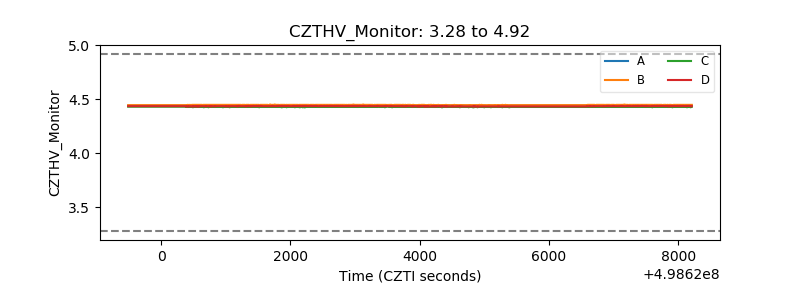

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

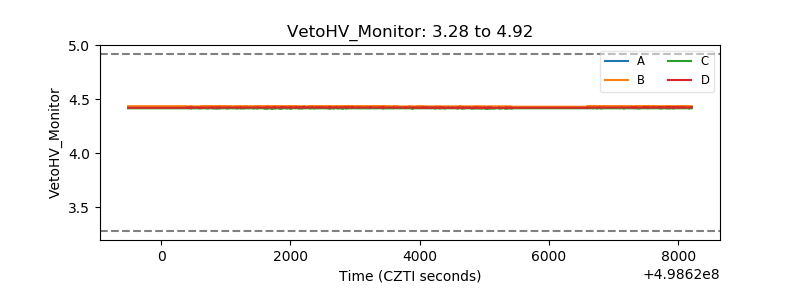

| Veto HV Monitor |  |

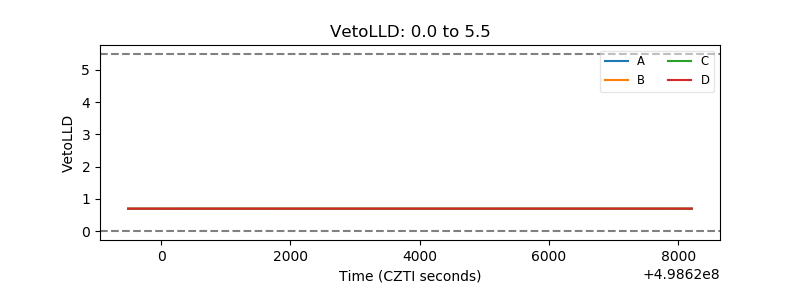

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

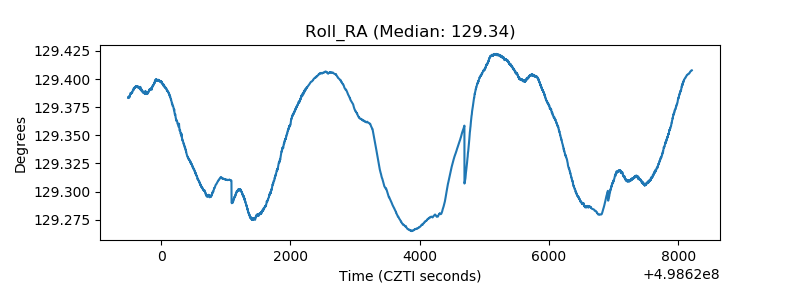

| _Roll_RA |  |

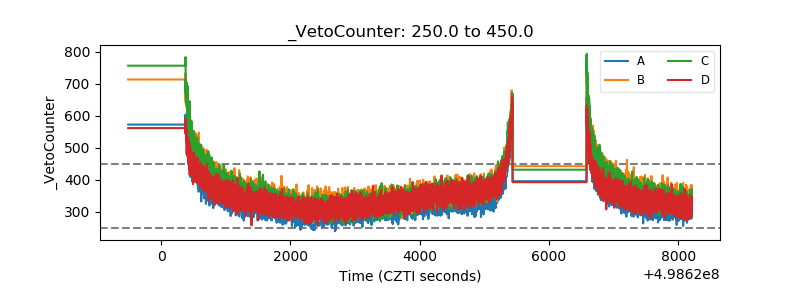

| Veto Counter |  |
