| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54431cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54431cztM0_level2_quad_clean.evt |
| Size (bytes) | 604,488,960 | 72,717,120 |
| Size | 576.5 MB | 69.3 MB |
| Events in quadrant A | 2,612,369 | 568,121 |
| Events in quadrant B | 2,856,359 | 604,165 |
| Events in quadrant C | 2,795,948 | 543,467 |
| Events in quadrant D | 13,639,442 | 63,425 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12462 | 2 |
| B | 0 | 13056 | 2 |
| C | 0 | 13099 | 2 |
| D | 0 | 44674 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6048 | 58 | 0.958995% |
| B | 6049 | 85 | 1.405191% |
| C | 6049 | 60 | 0.991899% |
| D | 6048 | 5429 | 89.765212% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

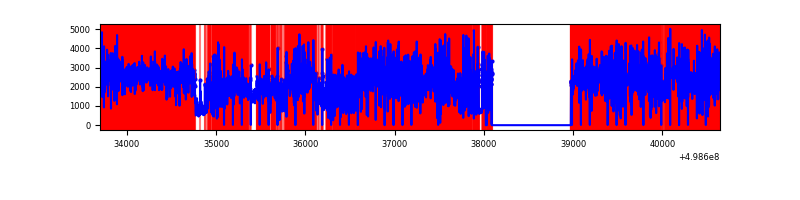

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6948 | 6050 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6949 | 6051 | 6 | 6 | 0.09% | 0.10% |  |
| C | 6949 | 6051 | 29 | 29 | 0.42% | 0.48% |  |
| D | 6948 | 6050 | 4190 | 4190 | 60.31% | 69.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 3 | 26942 | 165.93 | 640 | 625 | 158.6 |
| A | 7 | 237 | 25986 | 159.91 | 640 | 625 | 158.6 |
| A | 11 | 3 | 25865 | 159.14 | 640 | 625 | 158.6 |
| B | 7 | 0 | 110217 | 811.44 | 626 | 603 | 135.1 |
| B | 10 | 247 | 54108 | 396.08 | 626 | 603 | 135.1 |
| B | 0 | 213 | 42801 | 312.38 | 626 | 603 | 135.1 |
| C | 14 | 254 | 120640 | 707.33 | 615 | 611 | 169.7 |
| C | 1 | 16 | 84387 | 493.69 | 615 | 611 | 169.7 |
| C | 4 | 5 | 74282 | 434.14 | 615 | 611 | 169.7 |
| D | 8 | 176 | 10483376 | 180272.31 | 199 | 190 | 58.2 |
| D | 15 | 108 | 1450014 | 24931.64 | 199 | 190 | 58.2 |
| D | 7 | 70 | 596267 | 10250.33 | 199 | 190 | 58.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

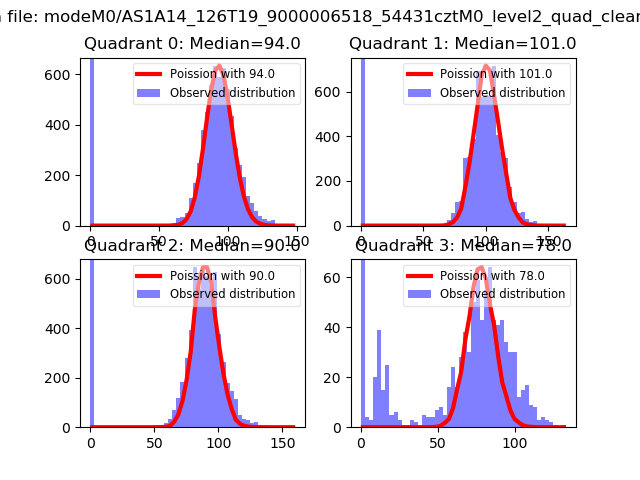

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

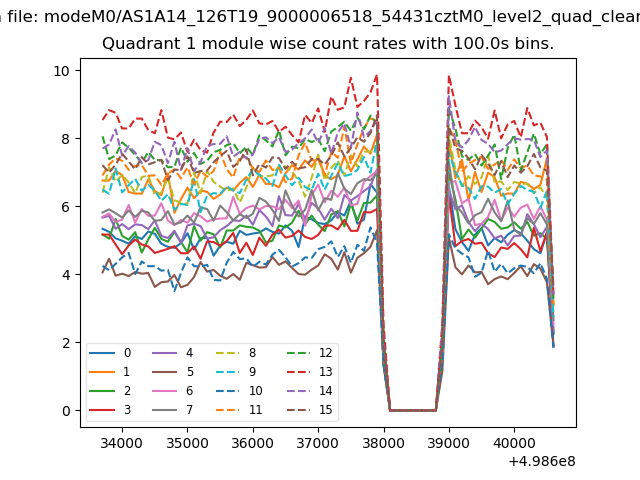

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

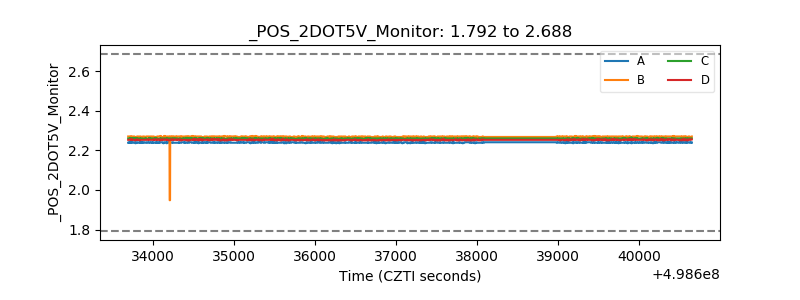

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

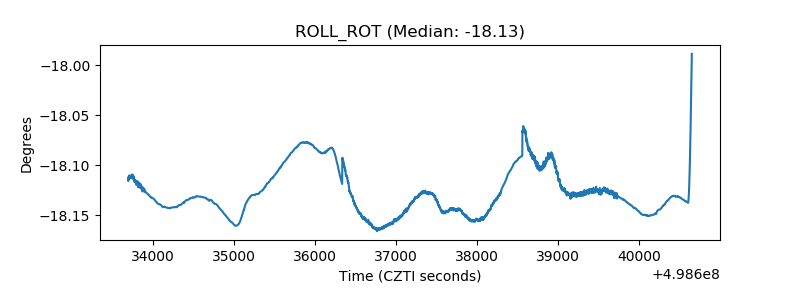

| _ROLL_ROT |  |

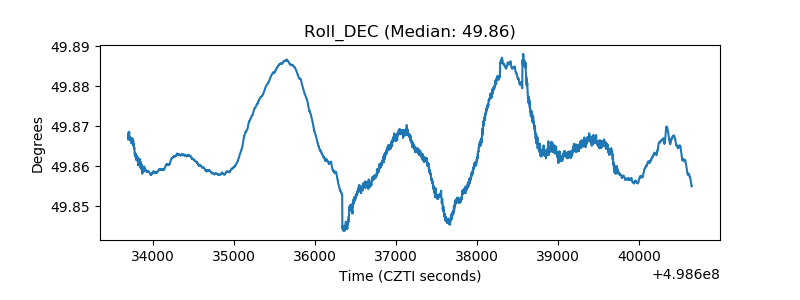

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
