| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54439cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54439cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,286,400 | 84,965,760 |
| Size | 573.4 MB | 81.0 MB |
| Events in quadrant A | 2,786,106 | 617,039 |
| Events in quadrant B | 3,300,288 | 640,450 |
| Events in quadrant C | 3,818,124 | 581,328 |
| Events in quadrant D | 11,841,526 | 274,894 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13344 | 1 |
| B | 0 | 14771 | 1 |
| C | 0 | 16223 | 1 |
| D | 0 | 39687 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6578 | 29 | 0.440863% |
| B | 6578 | 182 | 2.766798% |
| C | 6579 | 228 | 3.465572% |
| D | 6579 | 3491 | 53.062775% |

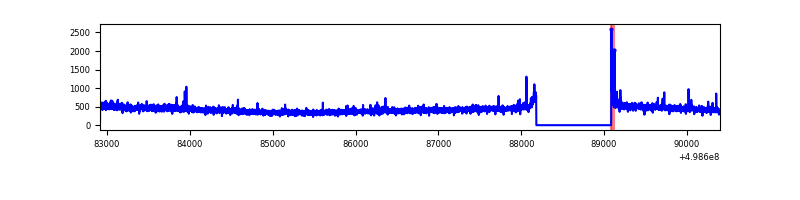

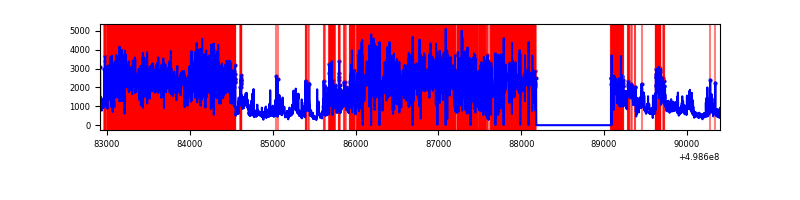

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7483 | 6579 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7483 | 6579 | 105 | 105 | 1.40% | 1.60% |  |
| C | 7484 | 6580 | 187 | 187 | 2.50% | 2.84% |  |
| D | 7484 | 6580 | 3028 | 3028 | 40.46% | 46.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 3 | 31301 | 178.4 | 693 | 675 | 171.7 |
| A | 11 | 3 | 18399 | 103.24 | 693 | 675 | 171.7 |
| A | 13 | 254 | 16143 | 90.1 | 693 | 675 | 171.7 |
| B | 10 | 247 | 335100 | 2304.45 | 681 | 658 | 145.1 |
| B | 2 | 249 | 103126 | 706.05 | 681 | 658 | 145.1 |
| B | 7 | 252 | 47907 | 325.57 | 681 | 658 | 145.1 |
| C | 4 | 5 | 662202 | 3554.23 | 674 | 668 | 186.1 |
| C | 13 | 3 | 195742 | 1048.08 | 674 | 668 | 186.1 |
| C | 2 | 255 | 131321 | 701.96 | 674 | 668 | 186.1 |
| D | 8 | 176 | 5823307 | 43918.05 | 465 | 444 | 132.6 |
| D | 7 | 70 | 3097945 | 23362.43 | 465 | 444 | 132.6 |
| D | 10 | 199 | 314031 | 2365.18 | 465 | 444 | 132.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

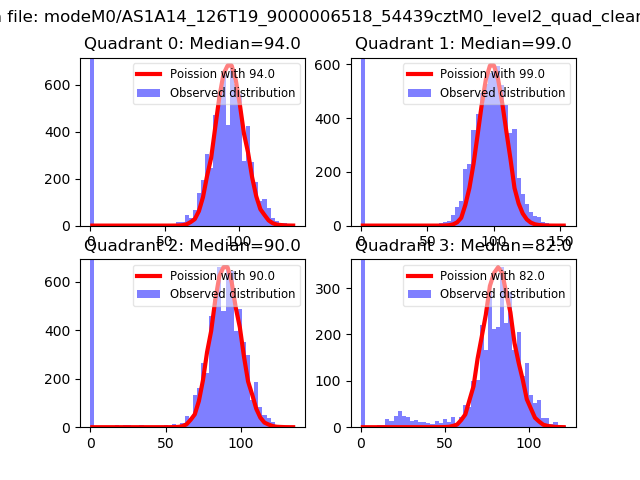

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

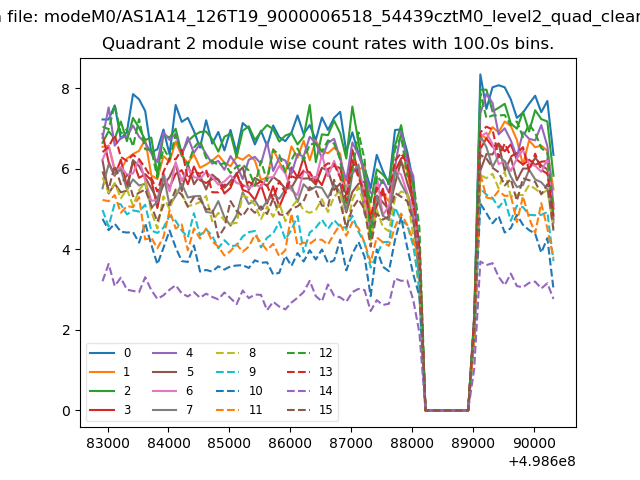

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

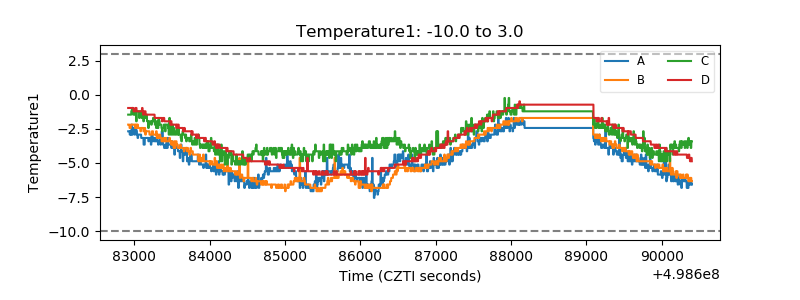

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

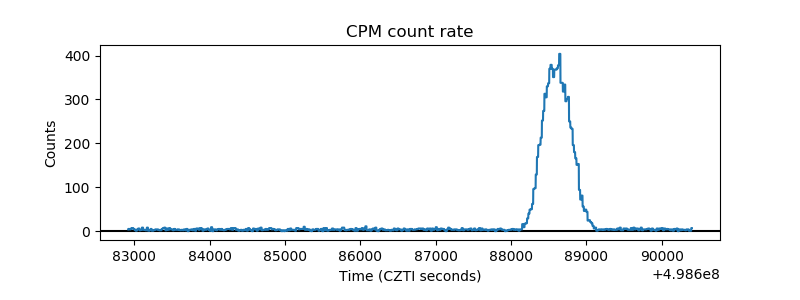

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

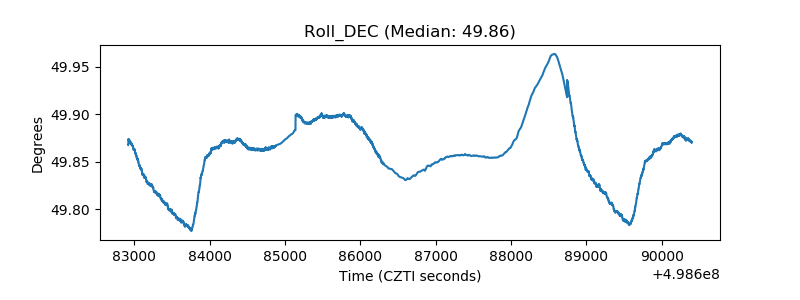

| _Roll_DEC |  |

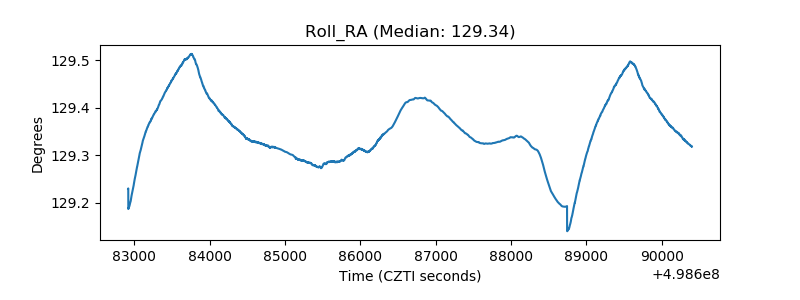

| _Roll_RA |  |
| Veto Counter |  |
