| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54455cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54455cztM0_level2_quad_clean.evt |
| Size (bytes) | 553,366,080 | 88,338,240 |
| Size | 527.7 MB | 84.2 MB |
| Events in quadrant A | 3,392,233 | 607,990 |
| Events in quadrant B | 3,146,408 | 649,703 |
| Events in quadrant C | 6,305,711 | 532,861 |
| Events in quadrant D | 7,133,761 | 430,091 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14934 | 1 |
| B | 0 | 14253 | 1 |
| C | 0 | 23244 | 1 |
| D | 0 | 26011 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6507 | 148 | 2.274474% |
| B | 6508 | 124 | 1.905347% |
| C | 6508 | 833 | 12.799631% |
| D | 6508 | 1546 | 23.755378% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

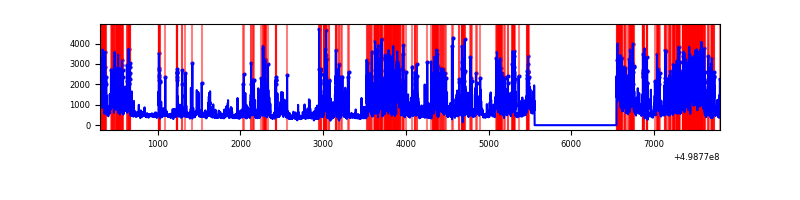

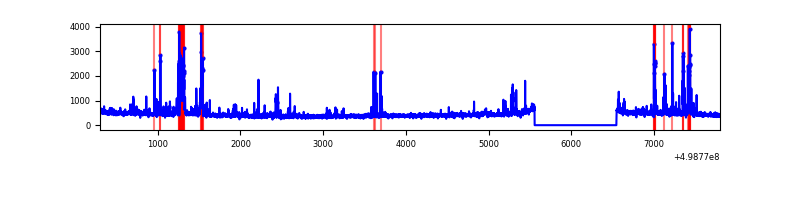

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7497 | 6508 | 90 | 90 | 1.20% | 1.38% |  |
| B | 7498 | 6509 | 56 | 56 | 0.75% | 0.86% |  |
| C | 7498 | 6509 | 678 | 678 | 9.04% | 10.42% |  |
| D | 7498 | 6509 | 1348 | 1348 | 17.98% | 20.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 9 | 298740 | 1760.59 | 685 | 669 | 169.3 |
| A | 0 | 8 | 265742 | 1565.68 | 685 | 669 | 169.3 |
| A | 4 | 249 | 47451 | 276.32 | 685 | 669 | 169.3 |
| B | 2 | 249 | 159529 | 1086.49 | 680 | 654 | 146.2 |
| B | 7 | 252 | 83849 | 568.94 | 680 | 654 | 146.2 |
| B | 0 | 213 | 58708 | 397.01 | 680 | 654 | 146.2 |
| C | 7 | 64 | 2672139 | 15008.03 | 645 | 638 | 178.0 |
| C | 13 | 3 | 839686 | 4713.63 | 645 | 638 | 178.0 |
| C | 14 | 254 | 87552 | 488.27 | 645 | 638 | 178.0 |
| D | 7 | 70 | 3347221 | 20231.06 | 572 | 544 | 165.4 |
| D | 8 | 176 | 660595 | 3990.09 | 572 | 544 | 165.4 |
| D | 10 | 199 | 415593 | 2509.02 | 572 | 544 | 165.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

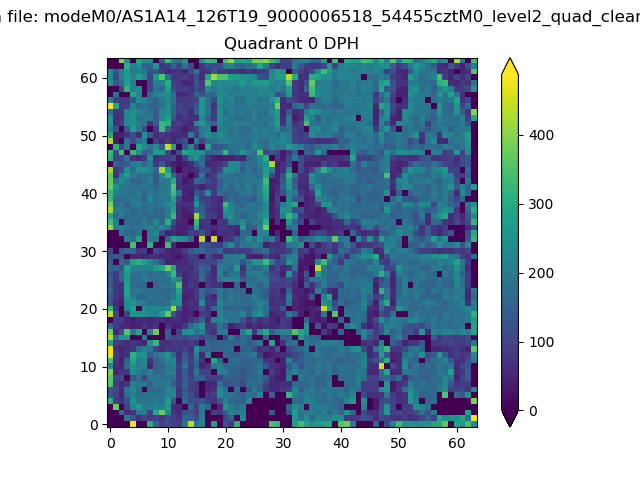

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

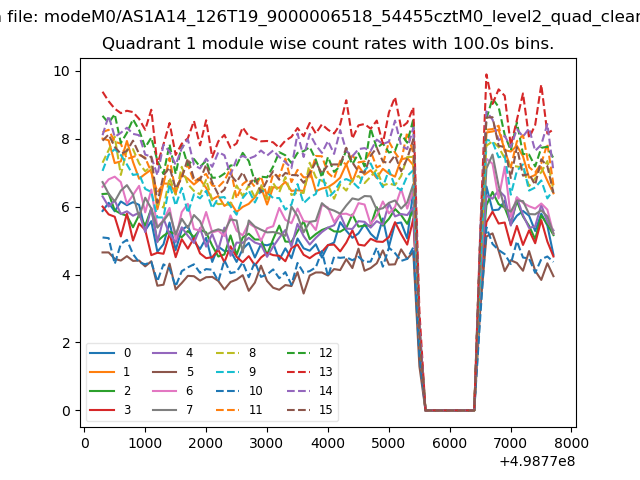

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

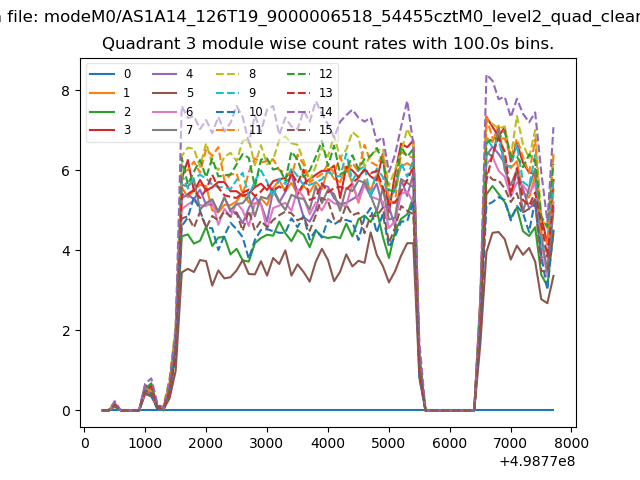

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

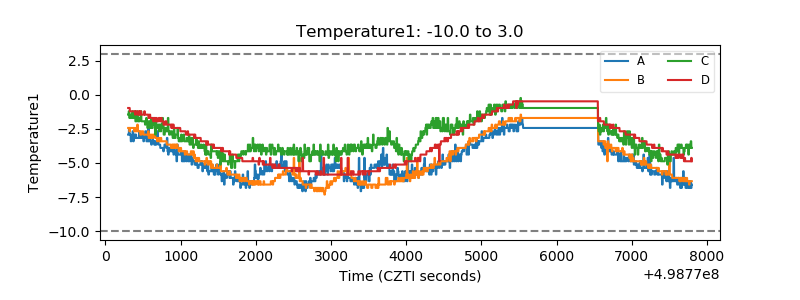

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

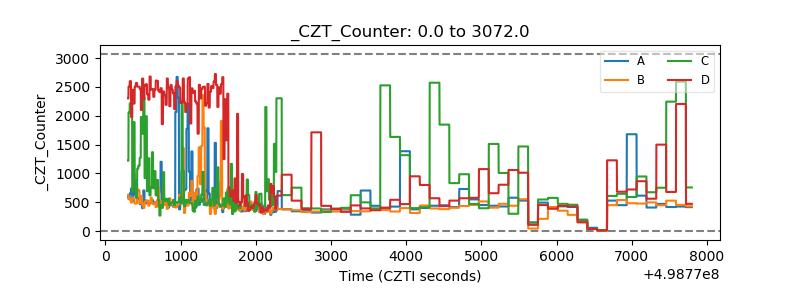

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

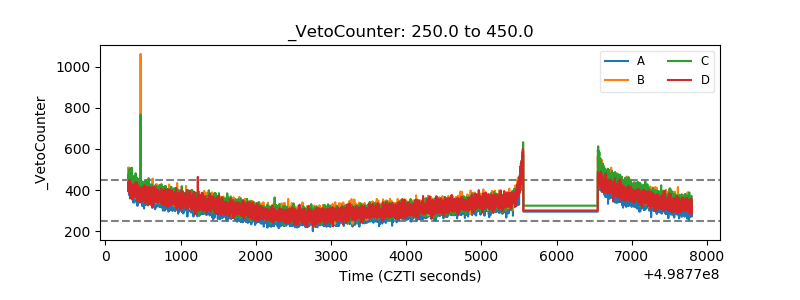

| Veto Counter |  |
