| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54471cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54471cztM0_level2_quad_clean.evt |
| Size (bytes) | 678,954,240 | 88,392,960 |
| Size | 647.5 MB | 84.3 MB |
| Events in quadrant A | 3,114,848 | 648,364 |
| Events in quadrant B | 3,953,295 | 686,111 |
| Events in quadrant C | 4,991,038 | 604,797 |
| Events in quadrant D | 12,554,196 | 271,232 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14133 | 2 |
| B | 0 | 16493 | 2 |
| C | 0 | 19419 | 2 |
| D | 0 | 41892 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6689 | 52 | 0.777396% |
| B | 6689 | 207 | 3.094633% |
| C | 6689 | 376 | 5.621169% |
| D | 6689 | 3846 | 57.497384% |

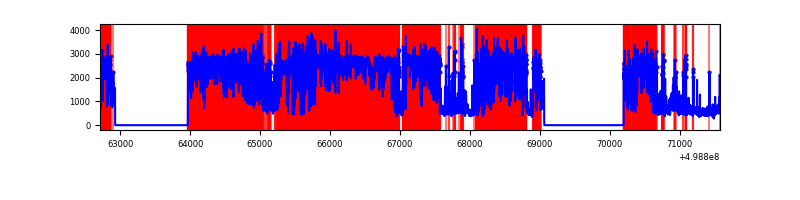

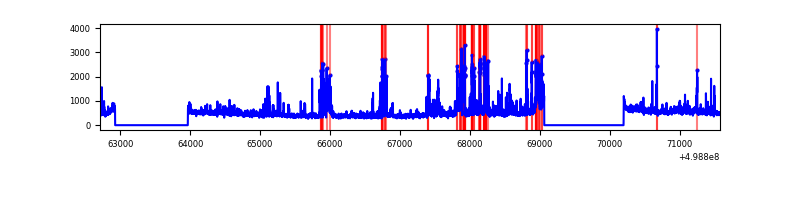

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

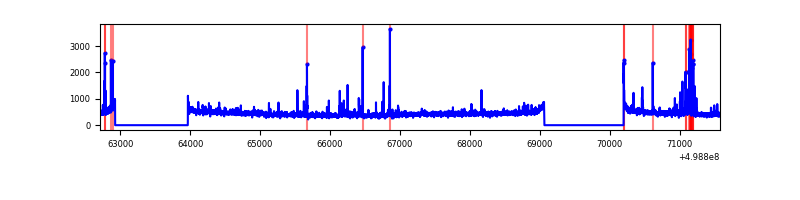

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8864 | 6691 | 23 | 23 | 0.26% | 0.34% |  |
| B | 8864 | 6690 | 109 | 109 | 1.23% | 1.63% |  |
| C | 8864 | 6690 | 325 | 325 | 3.67% | 4.86% |  |
| D | 8864 | 6690 | 3659 | 3659 | 41.28% | 54.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 122188 | 685.37 | 718 | 699 | 177.3 |
| A | 11 | 3 | 65416 | 365.09 | 718 | 699 | 177.3 |
| A | 4 | 3 | 53877 | 300.0 | 718 | 699 | 177.3 |
| B | 5 | 172 | 482006 | 3157.28 | 709 | 684 | 152.4 |
| B | 5 | 185 | 286083 | 1872.1 | 709 | 684 | 152.4 |
| B | 0 | 213 | 279790 | 1830.82 | 709 | 684 | 152.4 |
| C | 4 | 5 | 841563 | 4494.36 | 688 | 684 | 187.1 |
| C | 12 | 2 | 522543 | 2789.25 | 688 | 684 | 187.1 |
| C | 7 | 64 | 482102 | 2573.1 | 688 | 684 | 187.1 |
| D | 8 | 176 | 9123235 | 64651.92 | 491 | 466 | 141.1 |
| D | 2 | 172 | 694467 | 4918.3 | 491 | 466 | 141.1 |
| D | 10 | 181 | 294548 | 2084.12 | 491 | 466 | 141.1 |

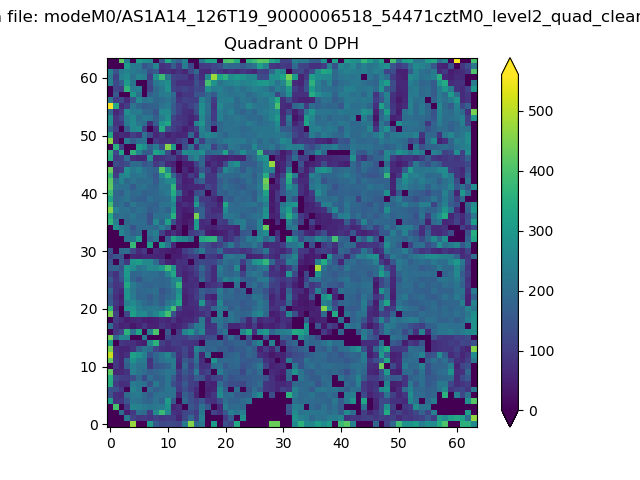

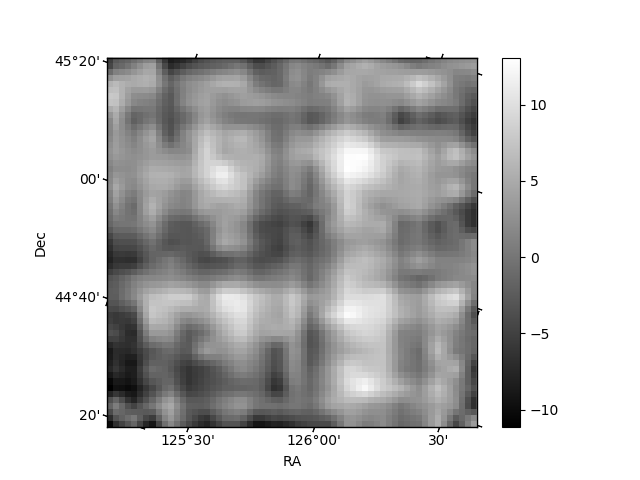

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

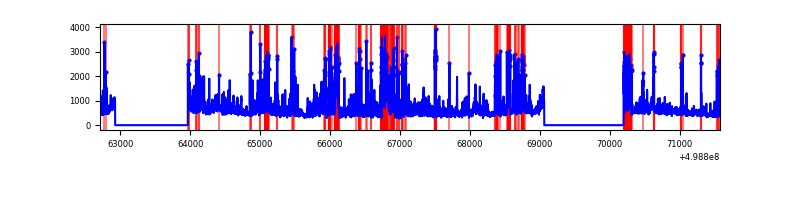

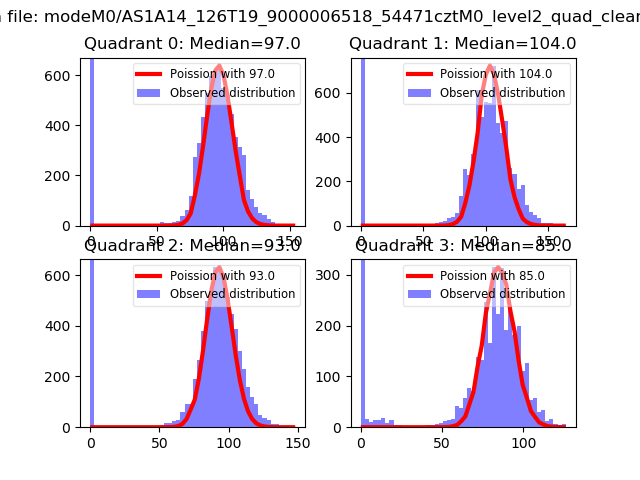

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

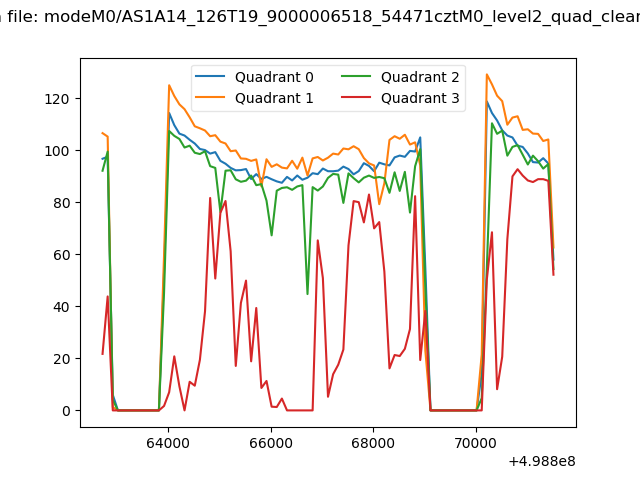

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

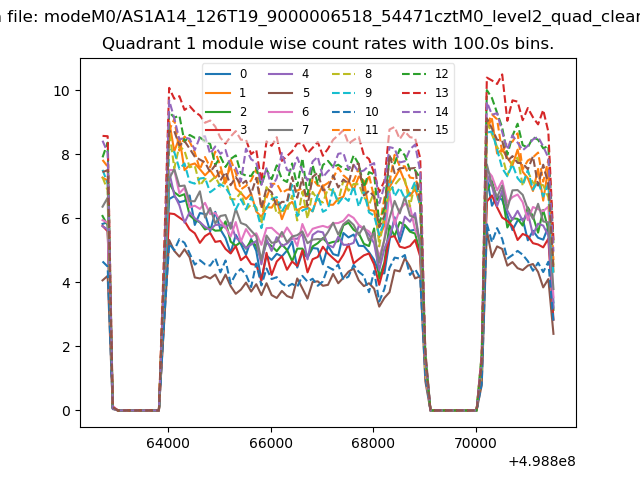

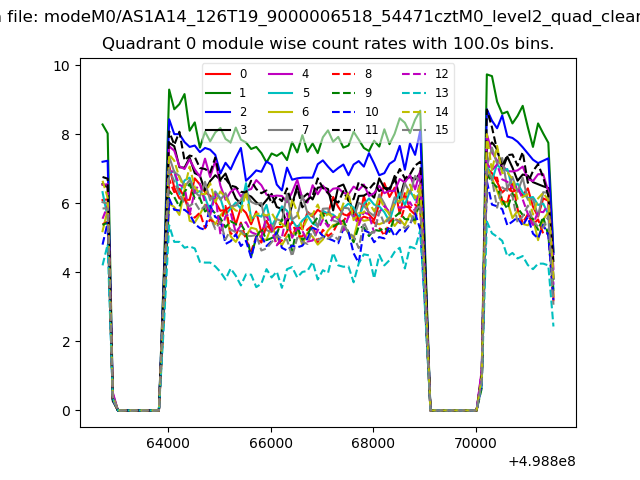

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

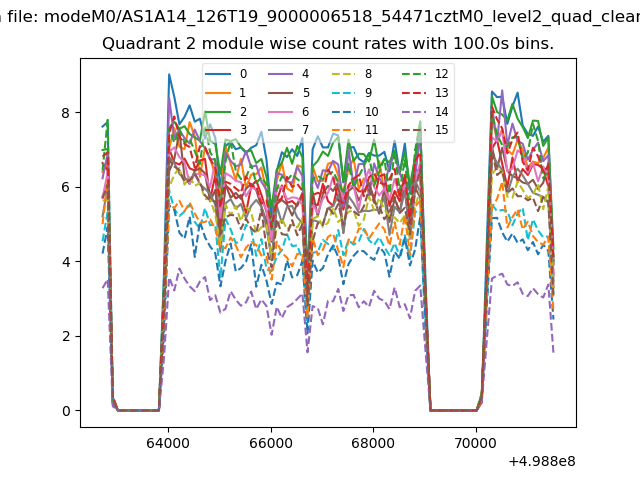

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

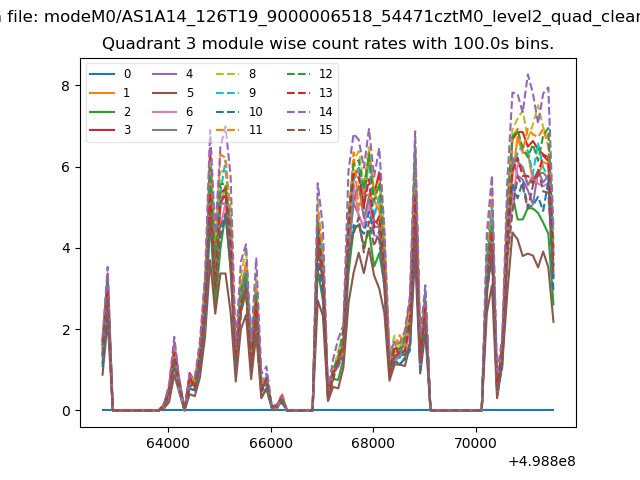

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

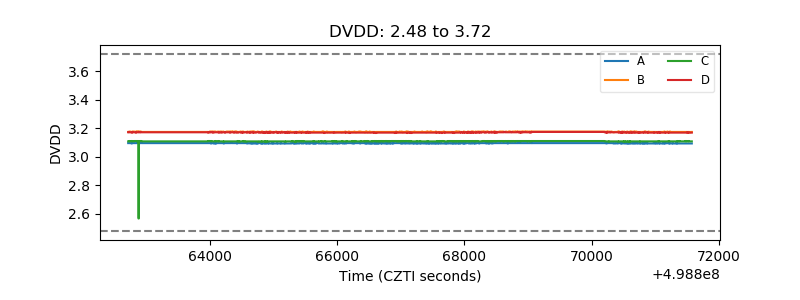

| D_VDD |  |

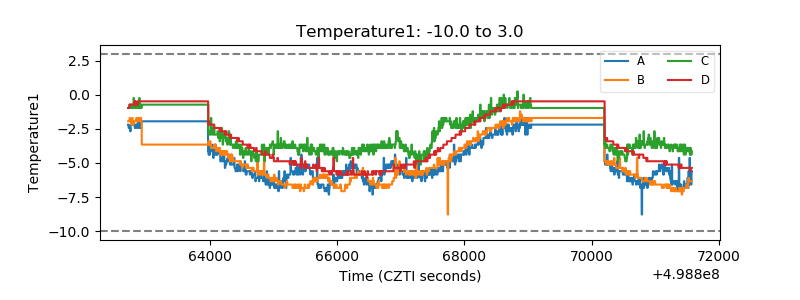

| Temperature 1 |  |

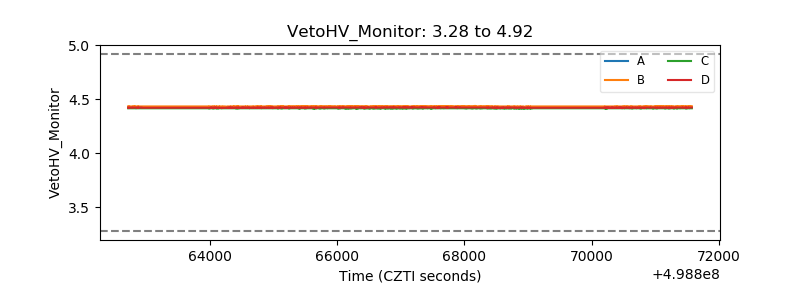

| Veto HV Monitor |  |
| Veto LLD |  |

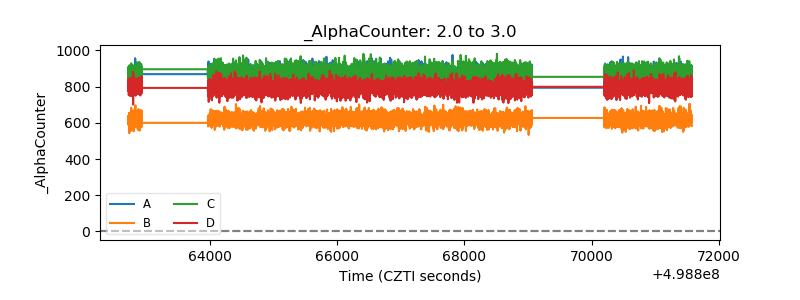

| Alpha Counter |  |

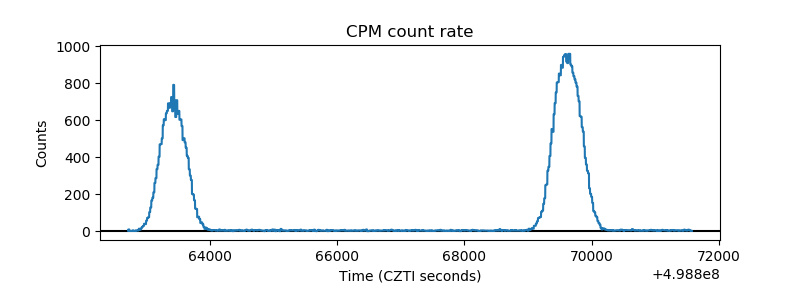

| _CPM_Rate |  |

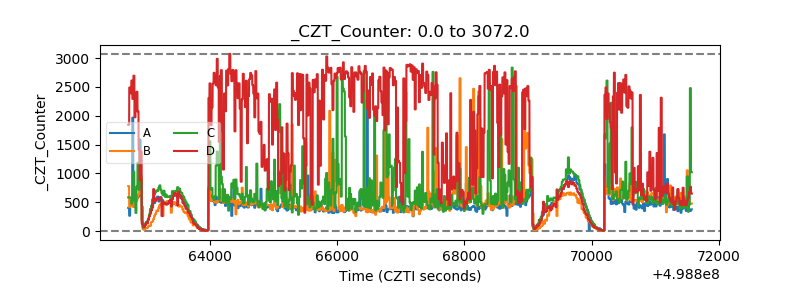

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

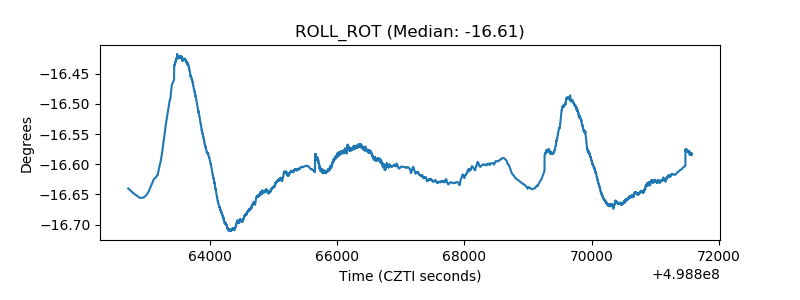

| _ROLL_ROT |  |

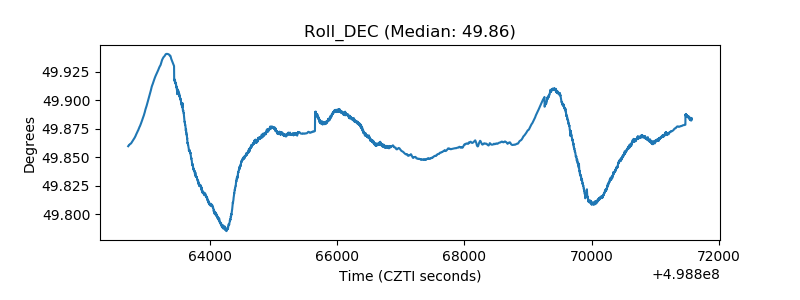

| _Roll_DEC |  |

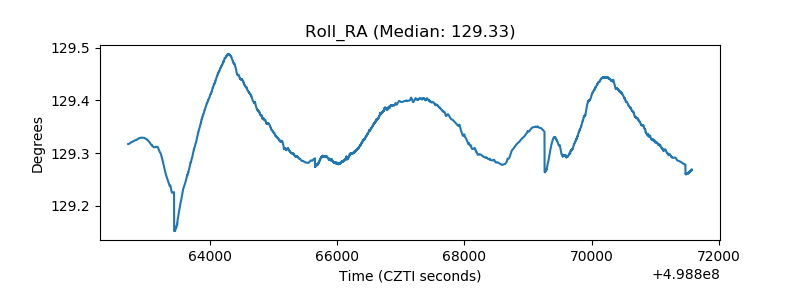

| _Roll_RA |  |

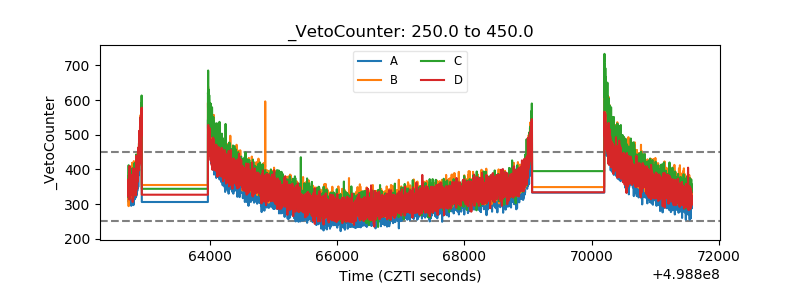

| Veto Counter |  |
