| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54473cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54473cztM0_level2_quad_clean.evt |
| Size (bytes) | 792,607,680 | 83,148,480 |
| Size | 755.9 MB | 79.3 MB |
| Events in quadrant A | 3,045,397 | 662,721 |
| Events in quadrant B | 7,697,106 | 558,992 |
| Events in quadrant C | 4,715,879 | 628,138 |
| Events in quadrant D | 13,353,791 | 194,500 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14231 | 2 |
| B | 0 | 27839 | 3 |
| C | 0 | 18764 | 2 |
| D | 0 | 44403 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6796 | 38 | 0.559152% |
| B | 6795 | 1665 | 24.503311% |
| C | 6795 | 239 | 3.517292% |
| D | 6795 | 4758 | 70.022075% |

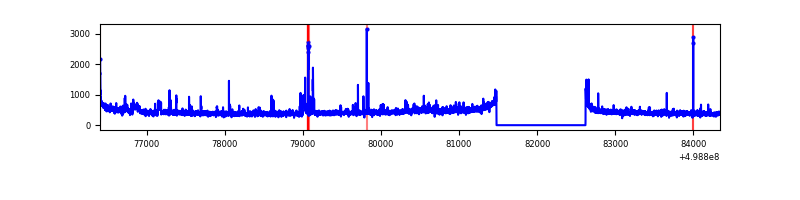

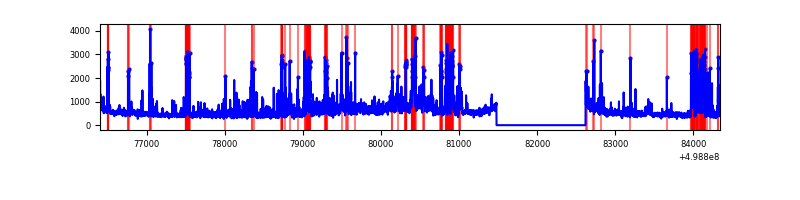

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7936 | 6797 | 11 | 11 | 0.14% | 0.16% |  |
| B | 7935 | 6795 | 1118 | 1118 | 14.09% | 16.45% |  |
| C | 7935 | 6796 | 237 | 237 | 2.99% | 3.49% |  |
| D | 7935 | 6796 | 4148 | 4148 | 52.27% | 61.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 93550 | 522.95 | 720 | 702 | 177.5 |
| A | 4 | 3 | 40914 | 226.49 | 720 | 702 | 177.5 |
| A | 8 | 6 | 36014 | 198.89 | 720 | 702 | 177.5 |
| B | 5 | 172 | 4709909 | 33058.66 | 661 | 636 | 142.5 |
| B | 0 | 213 | 197943 | 1385.08 | 661 | 636 | 142.5 |
| B | 2 | 249 | 80632 | 561.56 | 661 | 636 | 142.5 |
| C | 5 | 10 | 524722 | 2727.28 | 694 | 688 | 192.1 |
| C | 12 | 2 | 425191 | 2209.28 | 694 | 688 | 192.1 |
| C | 13 | 3 | 398818 | 2072.03 | 694 | 688 | 192.1 |
| D | 8 | 176 | 9512519 | 105467.12 | 314 | 299 | 90.2 |
| D | 2 | 172 | 2117039 | 23469.44 | 314 | 299 | 90.2 |
| D | 3 | 12 | 176023 | 1948.35 | 314 | 299 | 90.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

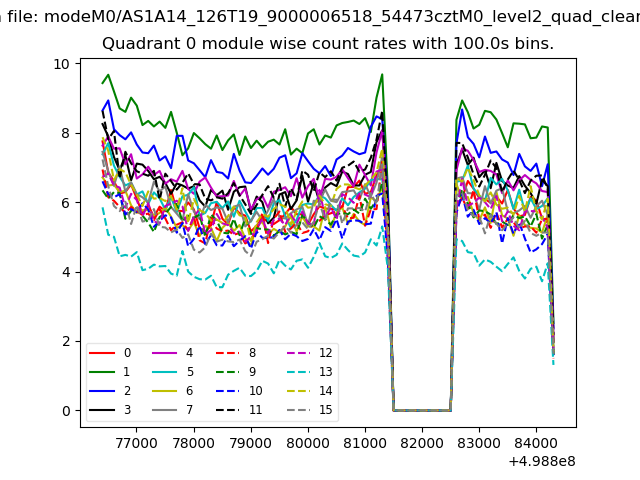

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

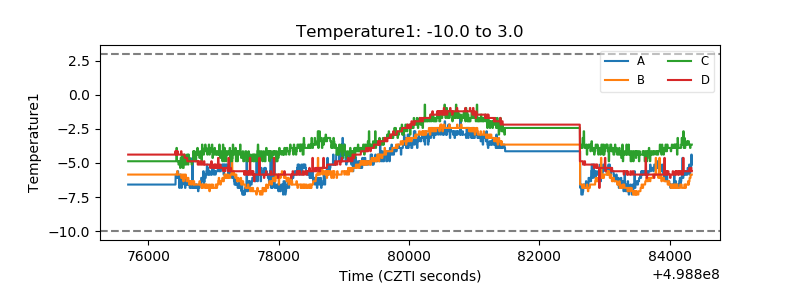

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

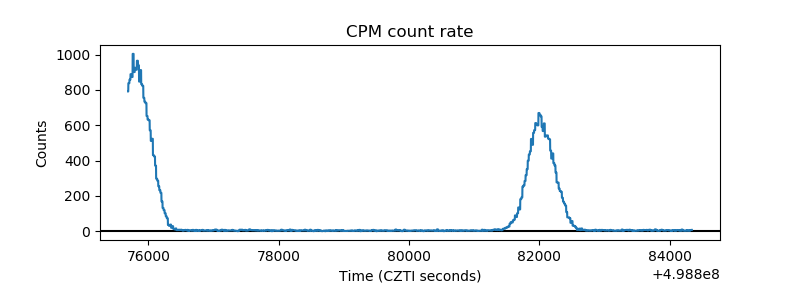

| _CPM_Rate |  |

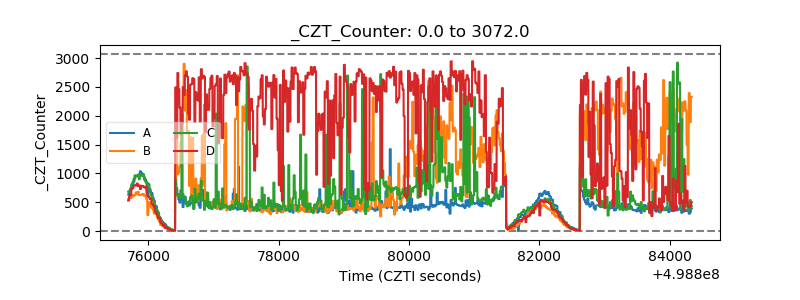

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

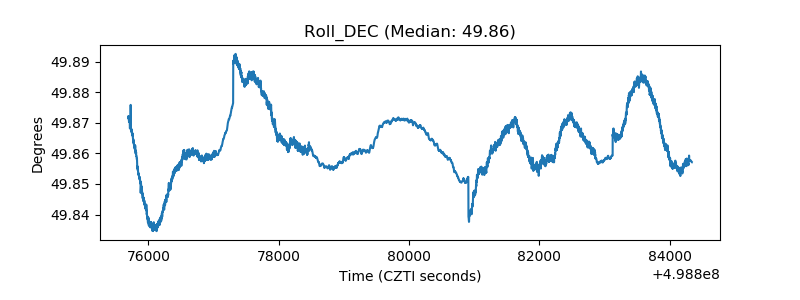

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
