| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54484cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54484cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,018,880 | 95,682,240 |
| Size | 525.5 MB | 91.2 MB |
| Events in quadrant A | 3,376,265 | 663,619 |
| Events in quadrant B | 4,376,417 | 694,108 |
| Events in quadrant C | 3,593,748 | 631,835 |
| Events in quadrant D | 8,506,760 | 420,562 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15123 | 2 |
| B | 0 | 18158 | 2 |
| C | 0 | 15910 | 2 |
| D | 0 | 30035 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6990 | 82 | 1.173104% |
| B | 6991 | 321 | 4.591618% |
| C | 6991 | 132 | 1.888142% |
| D | 6991 | 2201 | 31.483336% |

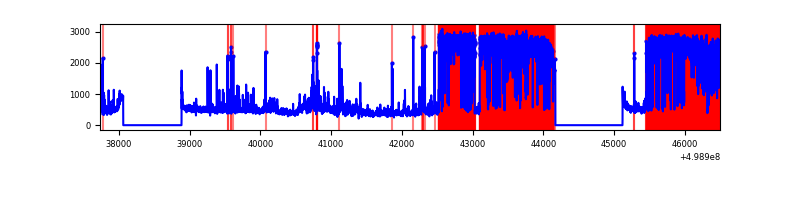

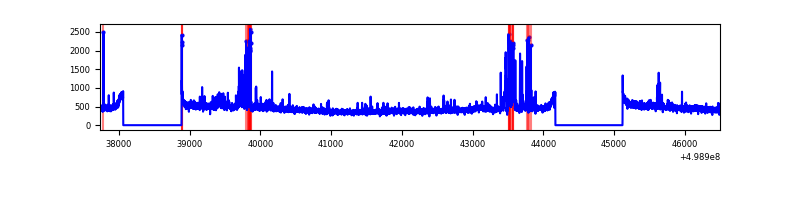

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8765 | 6990 | 29 | 29 | 0.33% | 0.41% |  |
| B | 8766 | 6991 | 154 | 154 | 1.76% | 2.20% |  |
| C | 8766 | 6991 | 54 | 54 | 0.62% | 0.77% |  |
| D | 8766 | 6991 | 2193 | 2193 | 25.02% | 31.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 226187 | 1200.26 | 761 | 742 | 187.8 |
| A | 4 | 3 | 43447 | 227.36 | 761 | 742 | 187.8 |
| A | 8 | 6 | 38545 | 201.26 | 761 | 742 | 187.8 |
| B | 2 | 249 | 565352 | 3535.14 | 744 | 718 | 159.7 |
| B | 0 | 213 | 411372 | 2571.08 | 744 | 718 | 159.7 |
| B | 5 | 172 | 193793 | 1208.83 | 744 | 718 | 159.7 |
| C | 7 | 46 | 180734 | 880.27 | 744 | 733 | 204.5 |
| C | 12 | 252 | 163493 | 795.95 | 744 | 733 | 204.5 |
| C | 5 | 10 | 71596 | 346.54 | 744 | 733 | 204.5 |
| D | 2 | 172 | 5687148 | 31665.9 | 630 | 601 | 179.6 |
| D | 8 | 176 | 144253 | 799.94 | 630 | 601 | 179.6 |
| D | 5 | 173 | 50958 | 280.42 | 630 | 601 | 179.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

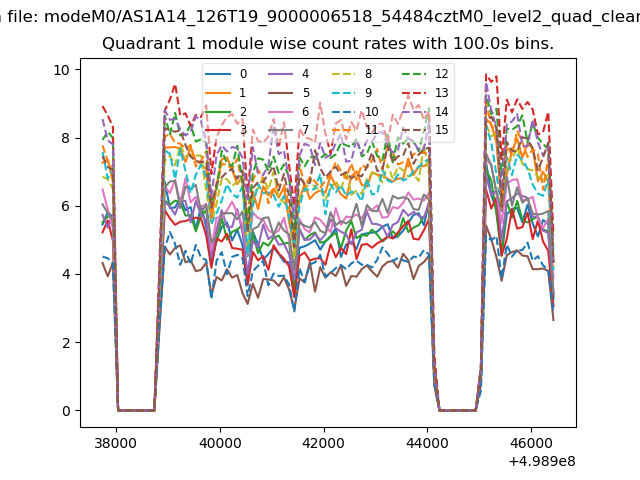

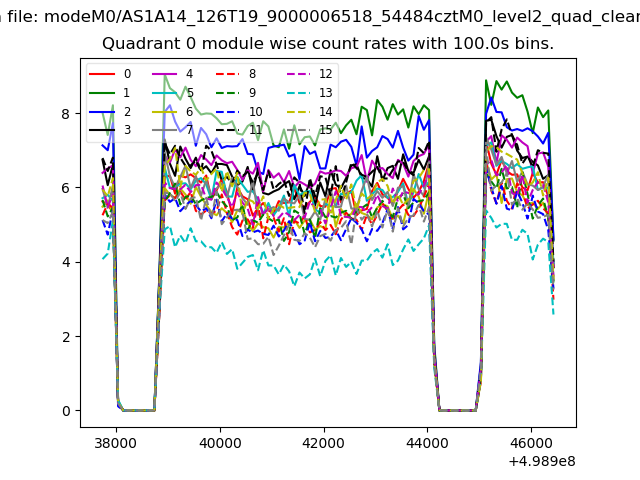

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

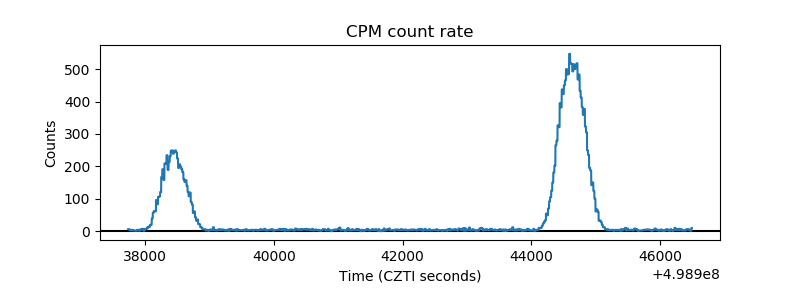

| _CPM_Rate |  |

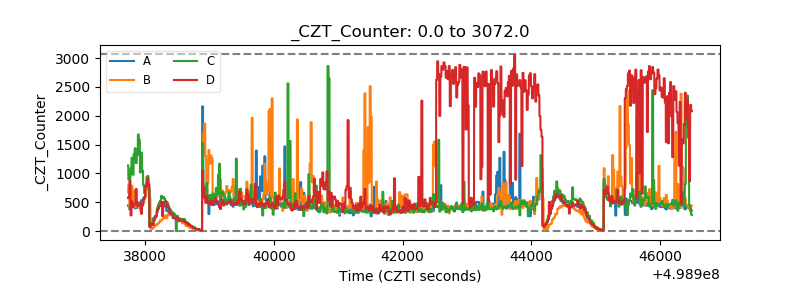

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

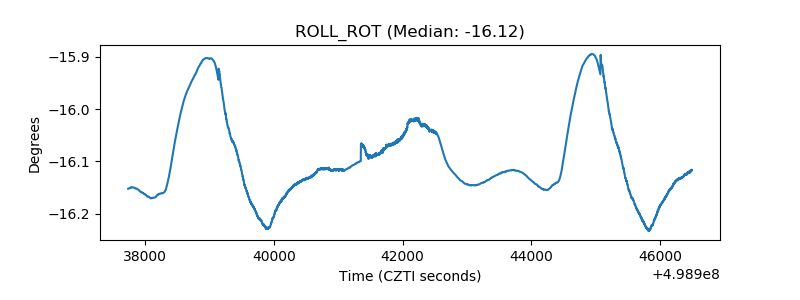

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

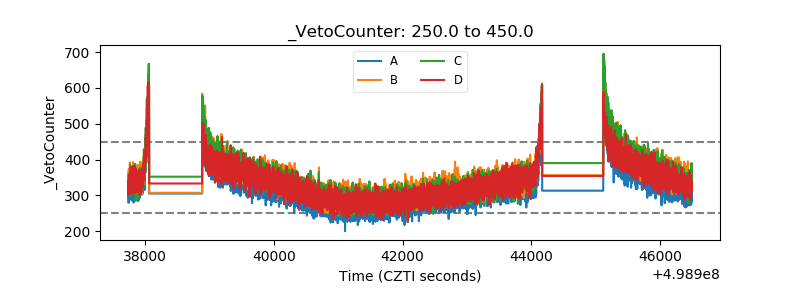

| Veto Counter |  |
