| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_126T19_9000006518_54489cztM0_level2.fits | modeM0/AS1A14_126T19_9000006518_54489cztM0_level2_quad_clean.evt |
| Size (bytes) | 581,054,400 | 94,155,840 |
| Size | 554.1 MB | 89.8 MB |
| Events in quadrant A | 3,616,095 | 643,430 |
| Events in quadrant B | 4,125,917 | 683,651 |
| Events in quadrant C | 3,274,224 | 625,736 |
| Events in quadrant D | 9,960,104 | 419,964 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15847 | 2 |
| B | 0 | 17257 | 2 |
| C | 0 | 14817 | 2 |
| D | 0 | 34349 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6858 | 137 | 1.997667% |
| B | 6858 | 252 | 3.674541% |
| C | 6857 | 23 | 0.335424% |
| D | 6857 | 2184 | 31.850664% |

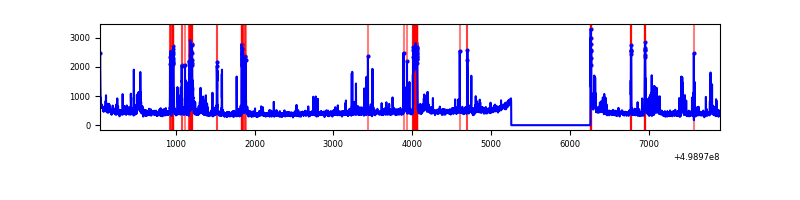

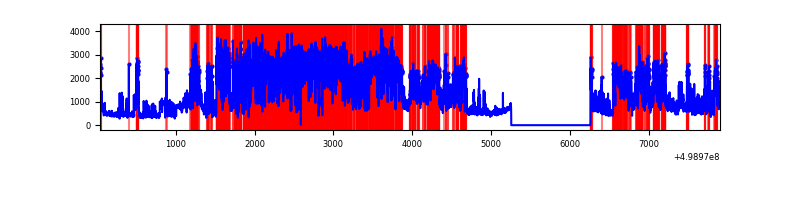

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7863 | 6859 | 123 | 123 | 1.56% | 1.79% |  |
| B | 7863 | 6859 | 140 | 140 | 1.78% | 2.04% |  |
| C | 7862 | 6858 | 13 | 13 | 0.17% | 0.19% |  |
| D | 7862 | 6858 | 2165 | 2165 | 27.54% | 31.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 15 | 464295 | 2669.72 | 711 | 695 | 173.7 |
| A | 7 | 237 | 162389 | 931.14 | 711 | 695 | 173.7 |
| A | 4 | 249 | 66243 | 377.47 | 711 | 695 | 173.7 |
| B | 0 | 213 | 567335 | 3771.27 | 702 | 676 | 150.3 |
| B | 2 | 249 | 313712 | 2083.34 | 702 | 676 | 150.3 |
| B | 5 | 172 | 309548 | 2055.63 | 702 | 676 | 150.3 |
| C | 7 | 64 | 210192 | 1089.43 | 696 | 690 | 192.3 |
| C | 4 | 5 | 148103 | 766.56 | 696 | 690 | 192.3 |
| C | 1 | 16 | 95386 | 492.43 | 696 | 690 | 192.3 |
| D | 8 | 176 | 4966405 | 30471.59 | 572 | 546 | 163.0 |
| D | 7 | 70 | 2084363 | 12786.75 | 572 | 546 | 163.0 |
| D | 15 | 239 | 310651 | 1902.87 | 572 | 546 | 163.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

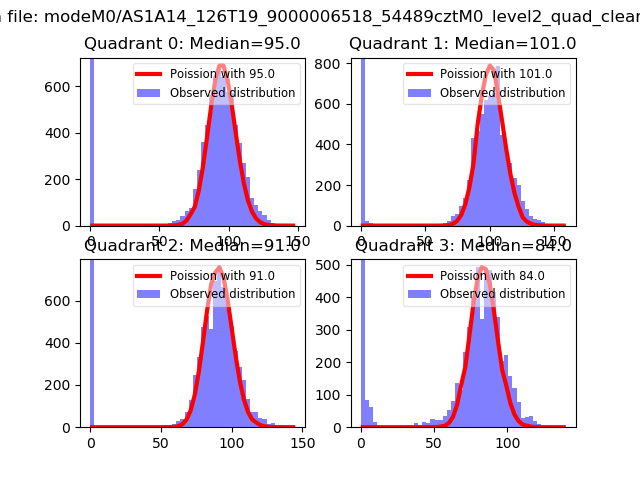

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

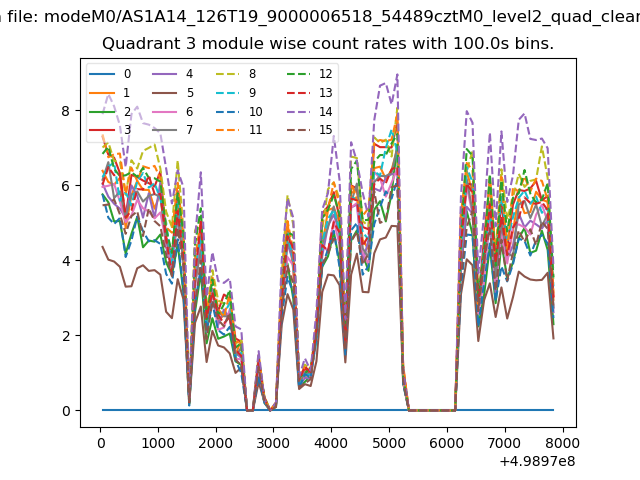

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

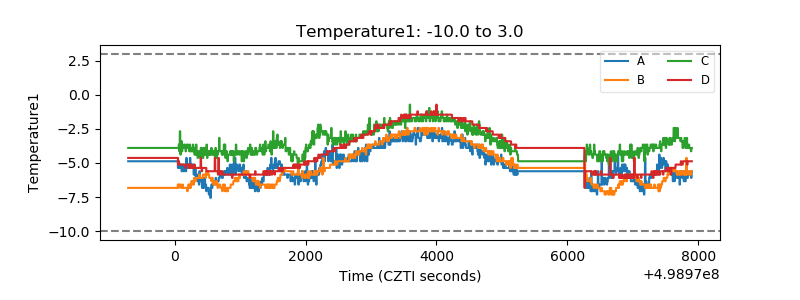

| Temperature 1 |  |

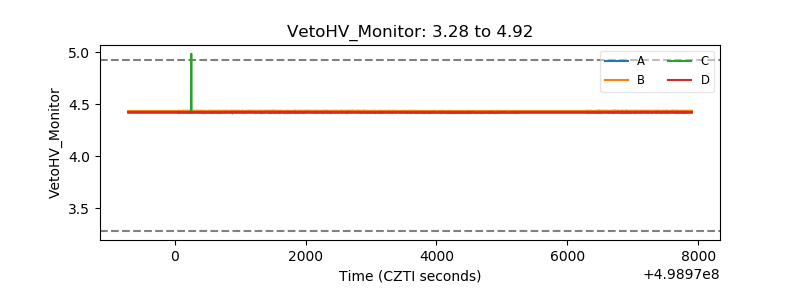

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

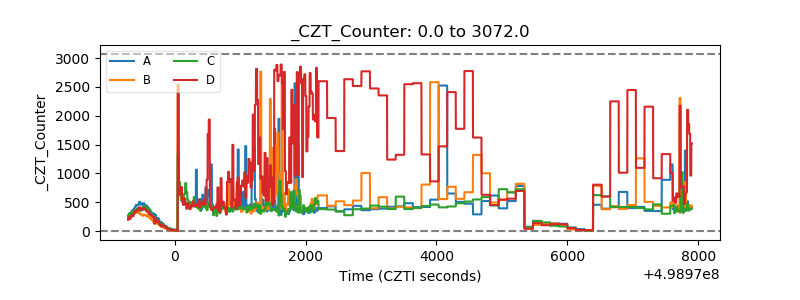

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

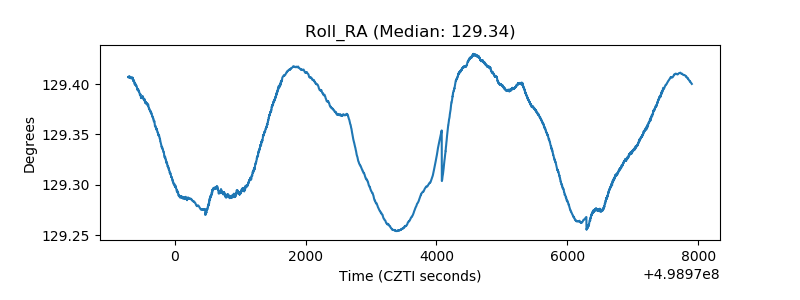

| _Roll_RA |  |
| Veto Counter |  |
