| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_127T09_9000006520_54572cztM0_level2.fits | modeM0/AS1A14_127T09_9000006520_54572cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,459,840 | 97,165,440 |
| Size | 426.7 MB | 92.7 MB |
| Events in quadrant A | 4,128,944 | 636,813 |
| Events in quadrant B | 3,871,626 | 682,174 |
| Events in quadrant C | 3,674,116 | 610,398 |
| Events in quadrant D | 4,380,342 | 556,551 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16540 | 2 |
| B | 0 | 15993 | 2 |
| C | 0 | 15527 | 2 |
| D | 0 | 17629 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6542 | 255 | 3.897891% |
| B | 6542 | 220 | 3.362886% |
| C | 6541 | 173 | 2.644856% |
| D | 6541 | 415 | 6.344596% |

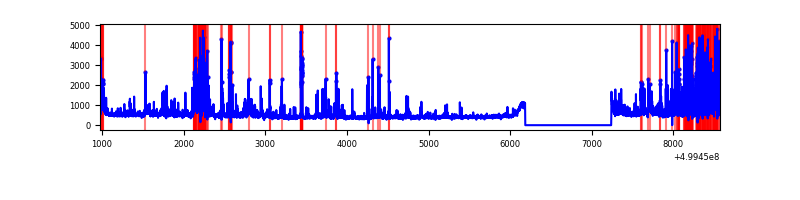

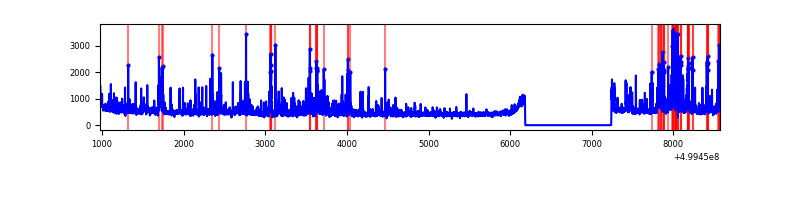

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7597 | 6543 | 133 | 133 | 1.75% | 2.03% |  |
| B | 7597 | 6543 | 74 | 74 | 0.97% | 1.13% |  |
| C | 7596 | 6542 | 81 | 81 | 1.07% | 1.24% |  |
| D | 7596 | 6542 | 252 | 252 | 3.32% | 3.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 658108 | 3626.28 | 737 | 719 | 181.3 |
| A | 14 | 235 | 327940 | 1805.01 | 737 | 719 | 181.3 |
| A | 8 | 6 | 77104 | 421.35 | 737 | 719 | 181.3 |
| B | 2 | 249 | 271514 | 1734.72 | 732 | 707 | 156.1 |
| B | 10 | 14 | 247314 | 1579.7 | 732 | 707 | 156.1 |
| B | 0 | 213 | 97999 | 623.23 | 732 | 707 | 156.1 |
| C | 13 | 3 | 306007 | 1539.53 | 723 | 718 | 198.3 |
| C | 3 | 248 | 119466 | 598.83 | 723 | 718 | 198.3 |
| C | 12 | 249 | 110958 | 555.93 | 723 | 718 | 198.3 |
| D | 15 | 94 | 630094 | 3136.88 | 709 | 678 | 200.7 |
| D | 3 | 12 | 438027 | 2179.66 | 709 | 678 | 200.7 |
| D | 1 | 3 | 111441 | 552.02 | 709 | 678 | 200.7 |

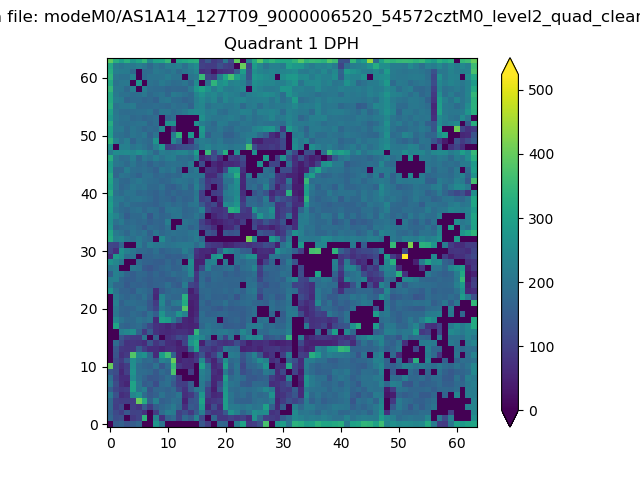

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

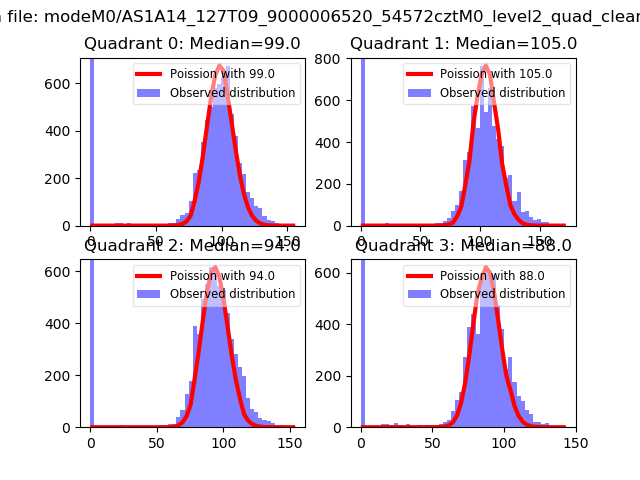

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

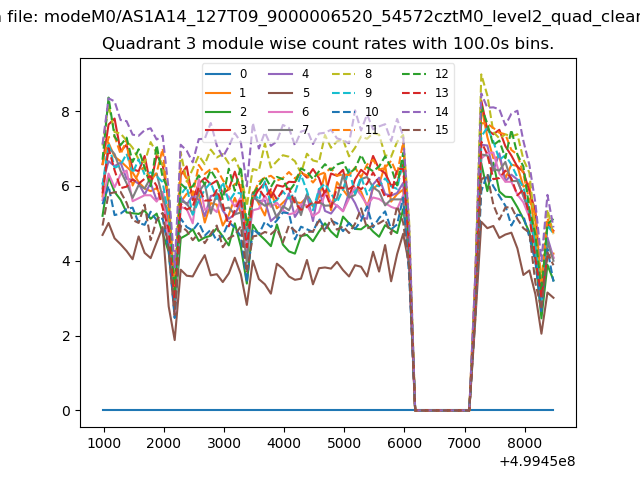

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

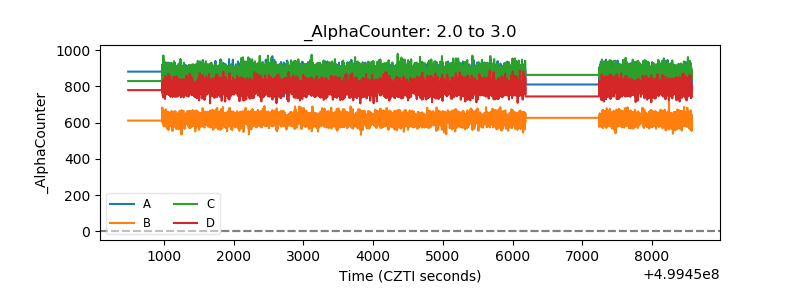

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

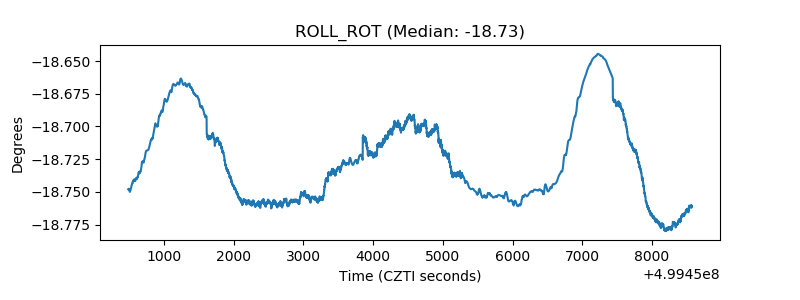

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
