| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54599cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54599cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,538,880 | 97,649,280 |
| Size | 545.1 MB | 93.1 MB |
| Events in quadrant A | 4,149,300 | 660,061 |
| Events in quadrant B | 6,294,380 | 630,649 |
| Events in quadrant C | 4,166,838 | 611,826 |
| Events in quadrant D | 6,012,303 | 574,897 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16529 | 2 |
| B | 0 | 23599 | 2 |
| C | 0 | 17237 | 2 |
| D | 0 | 22640 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6882 | 221 | 3.211276% |
| B | 6881 | 980 | 14.242116% |
| C | 6881 | 317 | 4.606889% |
| D | 6881 | 459 | 6.670542% |

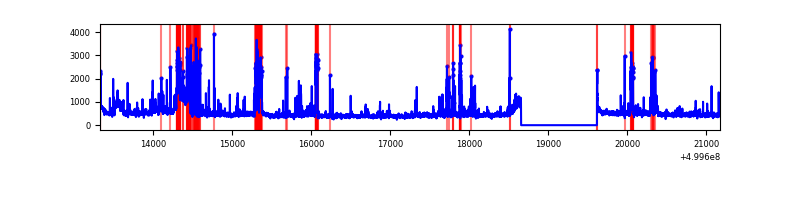

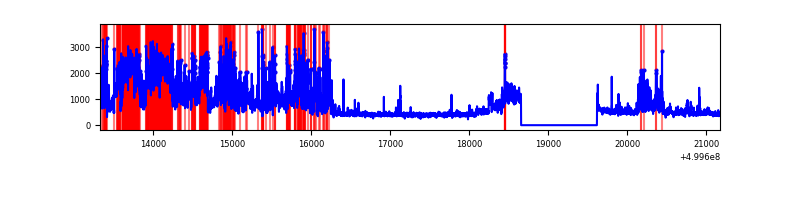

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7842 | 6882 | 132 | 132 | 1.68% | 1.92% |  |
| B | 7841 | 6881 | 633 | 633 | 8.07% | 9.20% |  |
| C | 7841 | 6882 | 215 | 215 | 2.74% | 3.12% |  |
| D | 7841 | 6881 | 350 | 350 | 4.46% | 5.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 411379 | 2169.85 | 763 | 744 | 189.2 |
| A | 13 | 248 | 279566 | 1473.33 | 763 | 744 | 189.2 |
| A | 11 | 3 | 172180 | 905.89 | 763 | 744 | 189.2 |
| B | 5 | 172 | 2759672 | 17691.36 | 722 | 696 | 156.0 |
| B | 5 | 185 | 246929 | 1578.92 | 722 | 696 | 156.0 |
| B | 1 | 207 | 191010 | 1220.35 | 722 | 696 | 156.0 |
| C | 15 | 254 | 602898 | 3024.01 | 733 | 730 | 199.1 |
| C | 4 | 5 | 347927 | 1743.58 | 733 | 730 | 199.1 |
| C | 7 | 220 | 127954 | 638.9 | 733 | 730 | 199.1 |
| D | 12 | 33 | 1759854 | 8425.69 | 732 | 700 | 208.8 |
| D | 2 | 62 | 492998 | 2357.92 | 732 | 700 | 208.8 |
| D | 3 | 12 | 436173 | 2085.75 | 732 | 700 | 208.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

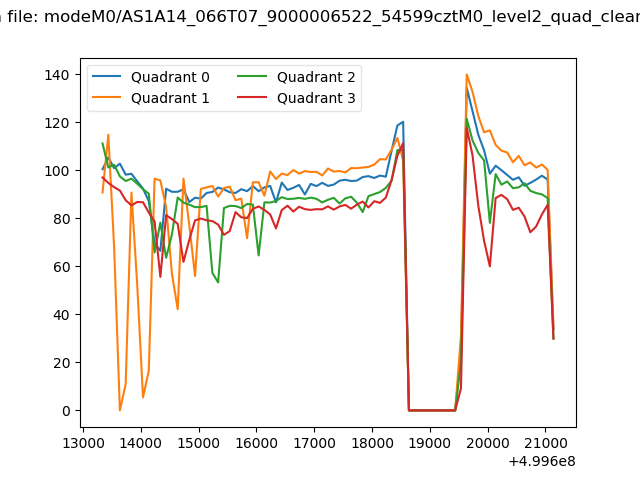

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

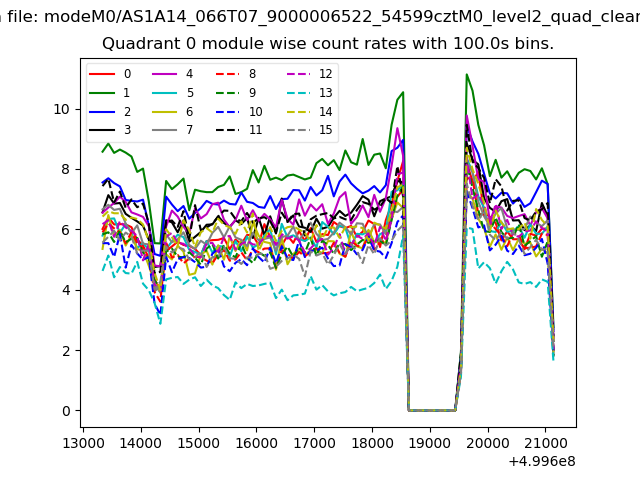

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

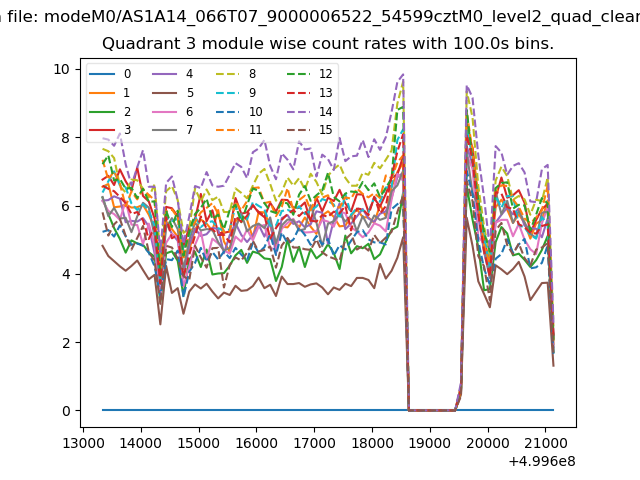

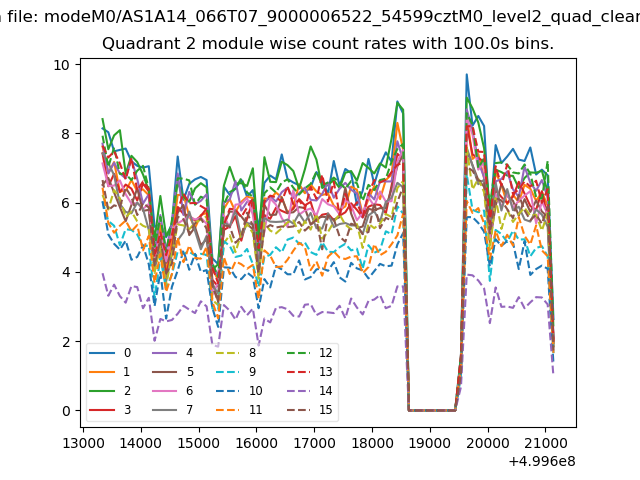

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

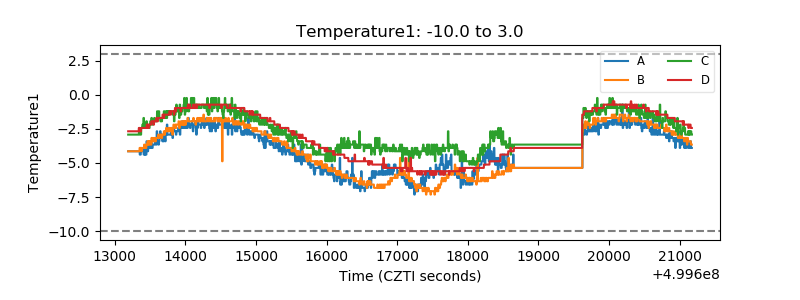

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

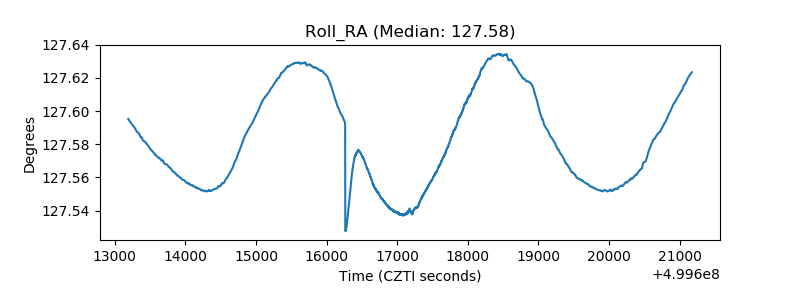

| _Roll_RA |  |
| Veto Counter |  |
