| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54602cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54602cztM0_level2_quad_clean.evt |
| Size (bytes) | 409,017,600 | 90,832,320 |
| Size | 390.1 MB | 86.6 MB |
| Events in quadrant A | 3,535,292 | 598,405 |
| Events in quadrant B | 3,355,245 | 633,402 |
| Events in quadrant C | 3,164,257 | 571,084 |
| Events in quadrant D | 4,618,013 | 527,640 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14205 | 1 |
| B | 0 | 14229 | 1 |
| C | 0 | 13429 | 1 |
| D | 0 | 17955 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6015 | 154 | 2.560266% |
| B | 6016 | 212 | 3.523936% |
| C | 6016 | 100 | 1.662234% |
| D | 6016 | 283 | 4.704122% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7150 | 6015 | 76 | 76 | 1.06% | 1.26% |  |
| B | 7151 | 6016 | 104 | 104 | 1.45% | 1.73% |  |
| C | 7151 | 6016 | 27 | 27 | 0.38% | 0.45% |  |
| D | 7151 | 6016 | 176 | 176 | 2.46% | 2.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 466328 | 2796.93 | 674 | 658 | 166.5 |
| A | 11 | 3 | 151043 | 903.25 | 674 | 658 | 166.5 |
| A | 5 | 243 | 118670 | 708.81 | 674 | 658 | 166.5 |
| B | 1 | 207 | 318144 | 2231.59 | 666 | 645 | 142.3 |
| B | 5 | 172 | 138637 | 969.9 | 666 | 645 | 142.3 |
| B | 8 | 234 | 67750 | 471.66 | 666 | 645 | 142.3 |
| C | 4 | 5 | 185653 | 1006.79 | 665 | 659 | 183.7 |
| C | 13 | 3 | 162536 | 880.98 | 665 | 659 | 183.7 |
| C | 1 | 16 | 47166 | 253.1 | 665 | 659 | 183.7 |
| D | 2 | 172 | 642884 | 3449.96 | 655 | 626 | 186.2 |
| D | 2 | 62 | 448384 | 2405.18 | 655 | 626 | 186.2 |
| D | 6 | 239 | 226904 | 1215.48 | 655 | 626 | 186.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

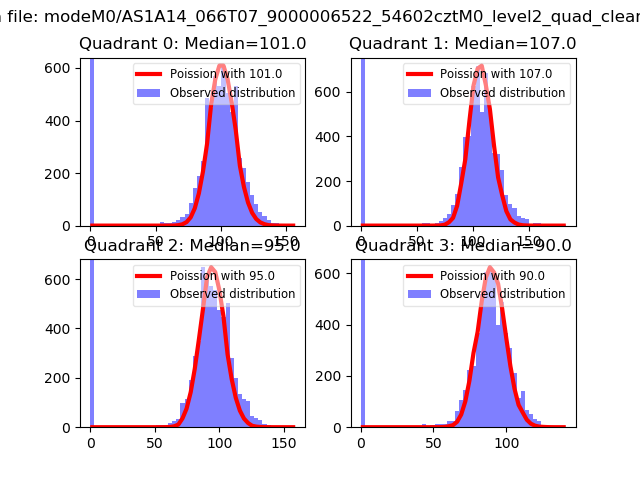

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

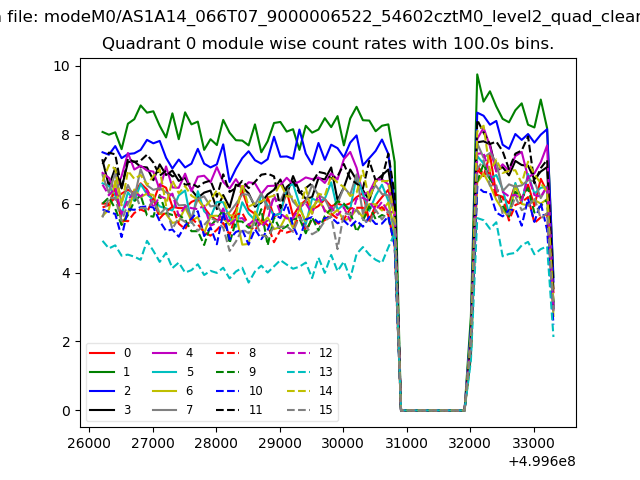

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

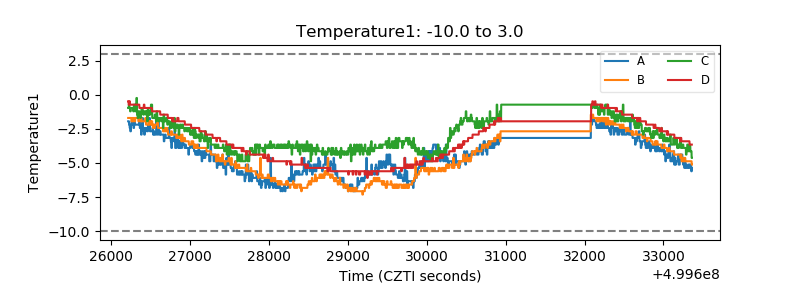

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

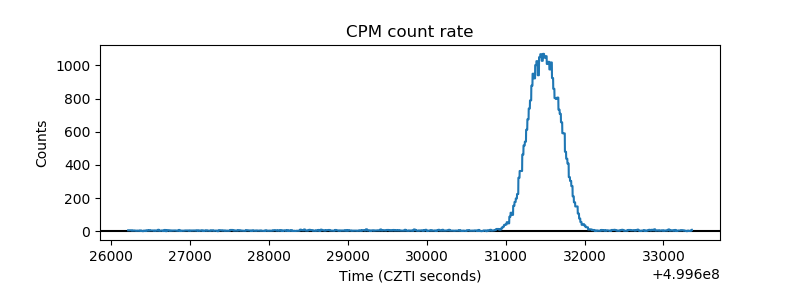

| _CPM_Rate |  |

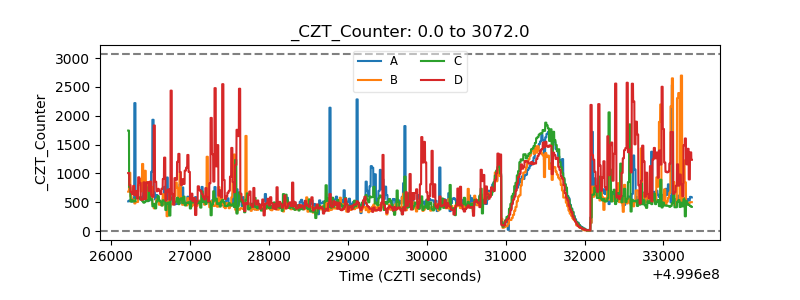

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

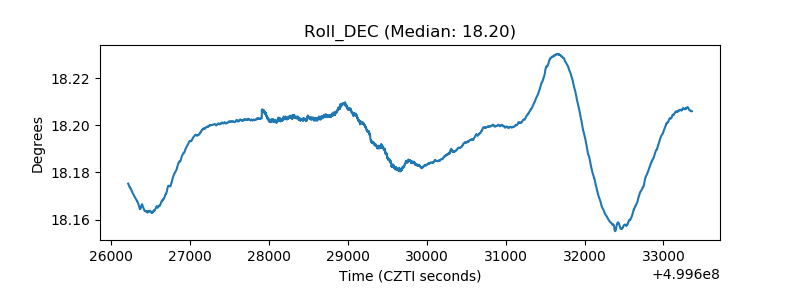

| _Roll_DEC |  |

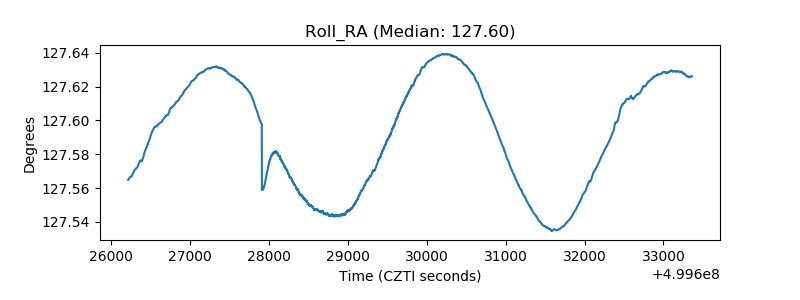

| _Roll_RA |  |
| Veto Counter |  |
