| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54615cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54615cztM0_level2_quad_clean.evt |
| Size (bytes) | 439,836,480 | 101,373,120 |
| Size | 419.5 MB | 96.7 MB |
| Events in quadrant A | 3,819,602 | 664,445 |
| Events in quadrant B | 3,642,989 | 705,118 |
| Events in quadrant C | 4,694,116 | 626,244 |
| Events in quadrant D | 3,592,831 | 596,916 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16109 | 2 |
| B | 0 | 15713 | 2 |
| C | 0 | 18481 | 3 |
| D | 0 | 15442 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6841 | 140 | 2.046484% |
| B | 6841 | 191 | 2.791989% |
| C | 6840 | 162 | 2.368421% |
| D | 6840 | 141 | 2.061404% |

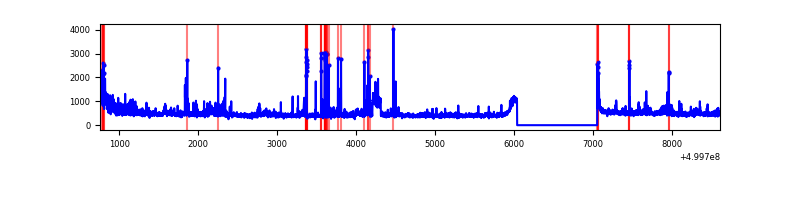

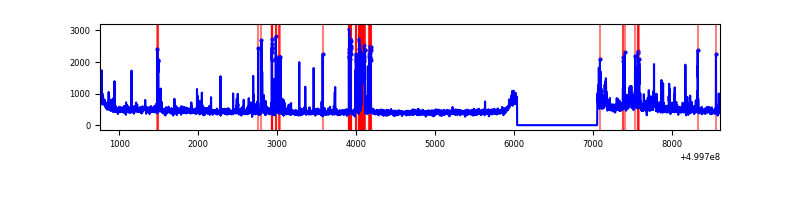

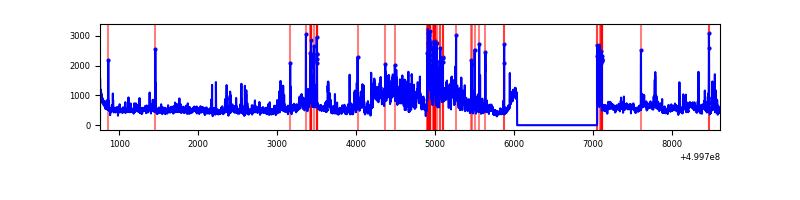

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7856 | 6841 | 34 | 34 | 0.43% | 0.50% |  |
| B | 7856 | 6841 | 89 | 89 | 1.13% | 1.30% |  |
| C | 7855 | 6840 | 95 | 95 | 1.21% | 1.39% |  |
| D | 7855 | 6840 | 49 | 49 | 0.62% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 544321 | 2854.19 | 769 | 751 | 190.4 |
| A | 5 | 240 | 89687 | 466.99 | 769 | 751 | 190.4 |
| A | 13 | 248 | 54848 | 284.05 | 769 | 751 | 190.4 |
| B | 5 | 172 | 423204 | 2592.12 | 755 | 727 | 163.0 |
| B | 1 | 207 | 70298 | 426.86 | 755 | 727 | 163.0 |
| B | 6 | 255 | 50223 | 303.68 | 755 | 727 | 163.0 |
| C | 5 | 10 | 1024196 | 5017.79 | 746 | 739 | 204.0 |
| C | 4 | 5 | 255503 | 1249.05 | 746 | 739 | 204.0 |
| C | 14 | 254 | 152796 | 745.5 | 746 | 739 | 204.0 |
| D | 2 | 172 | 264444 | 1241.51 | 751 | 719 | 212.4 |
| D | 2 | 207 | 57480 | 267.21 | 751 | 719 | 212.4 |
| D | 5 | 173 | 56349 | 261.88 | 751 | 719 | 212.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

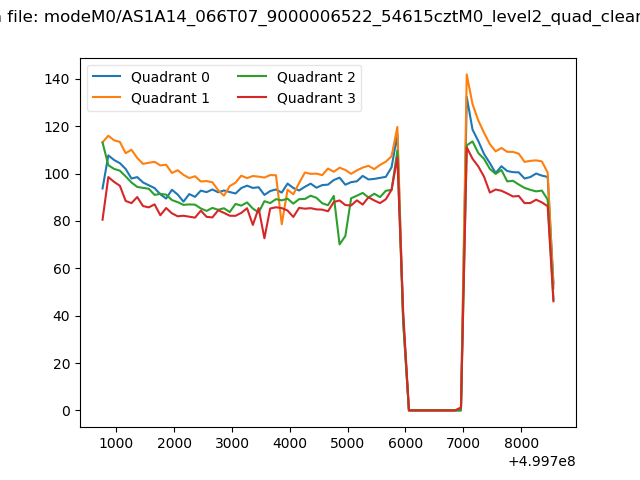

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

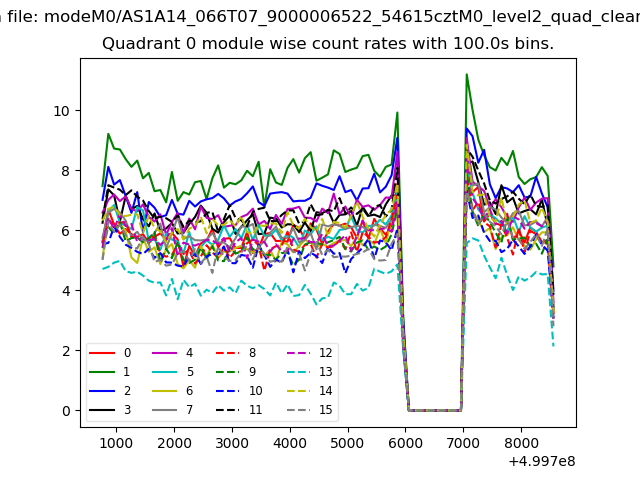

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

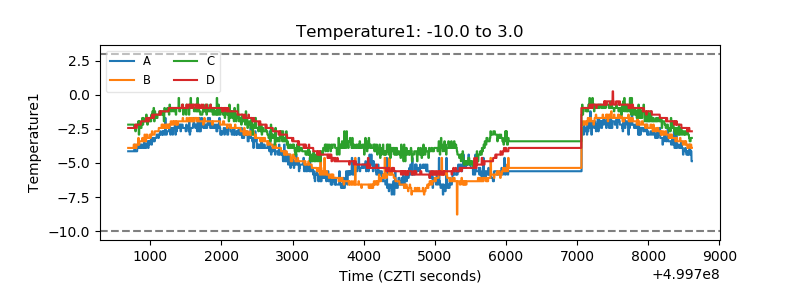

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

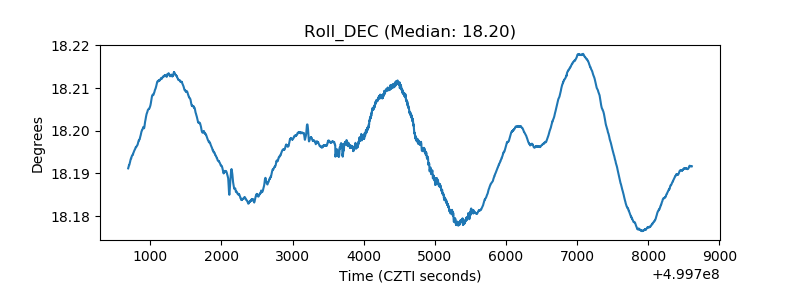

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
