| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54618cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54618cztM0_level2_quad_clean.evt |
| Size (bytes) | 436,141,440 | 96,396,480 |
| Size | 415.9 MB | 91.9 MB |
| Events in quadrant A | 4,392,664 | 621,042 |
| Events in quadrant B | 3,963,536 | 666,447 |
| Events in quadrant C | 3,446,549 | 612,291 |
| Events in quadrant D | 3,848,713 | 576,468 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17346 | 1 |
| B | 0 | 16176 | 1 |
| C | 0 | 14674 | 1 |
| D | 0 | 16024 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6338 | 409 | 6.453140% |
| B | 6339 | 357 | 5.631803% |
| C | 6339 | 131 | 2.066572% |
| D | 6339 | 100 | 1.577536% |

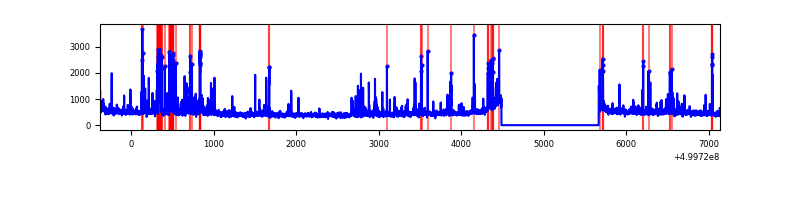

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7518 | 6338 | 331 | 331 | 4.40% | 5.22% |  |
| B | 7519 | 6339 | 250 | 250 | 3.32% | 3.94% |  |
| C | 7519 | 6339 | 88 | 88 | 1.17% | 1.39% |  |
| D | 7519 | 6340 | 57 | 57 | 0.76% | 0.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 1205574 | 6926.95 | 700 | 683 | 173.9 |
| A | 3 | 14 | 256373 | 1469.97 | 700 | 683 | 173.9 |
| A | 13 | 248 | 104201 | 595.13 | 700 | 683 | 173.9 |
| B | 1 | 207 | 752840 | 5016.98 | 700 | 675 | 149.9 |
| B | 10 | 247 | 104088 | 689.77 | 700 | 675 | 149.9 |
| B | 5 | 185 | 93122 | 616.63 | 700 | 675 | 149.9 |
| C | 13 | 3 | 299871 | 1547.75 | 699 | 694 | 193.3 |
| C | 14 | 254 | 147956 | 761.84 | 699 | 694 | 193.3 |
| C | 6 | 223 | 76527 | 392.31 | 699 | 694 | 193.3 |
| D | 2 | 62 | 607585 | 3031.07 | 693 | 663 | 200.2 |
| D | 2 | 172 | 268718 | 1338.71 | 693 | 663 | 200.2 |
| D | 5 | 173 | 51422 | 253.5 | 693 | 663 | 200.2 |

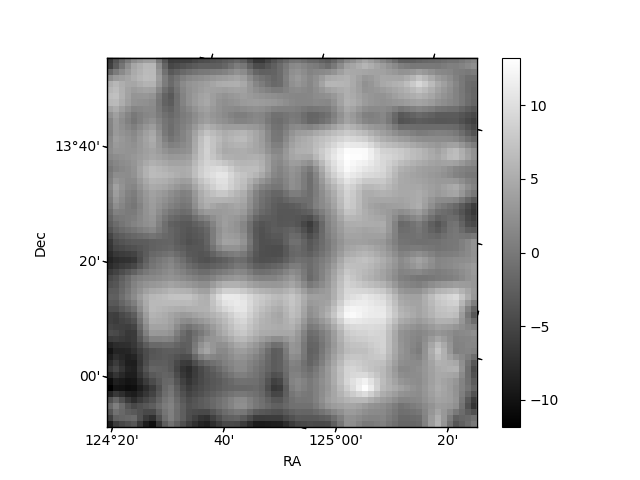

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

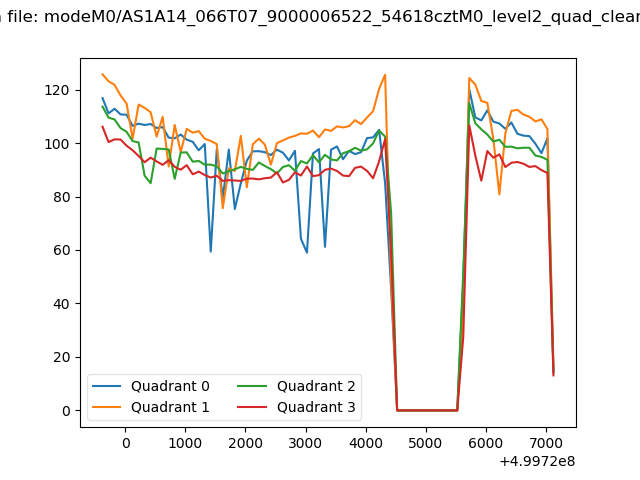

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

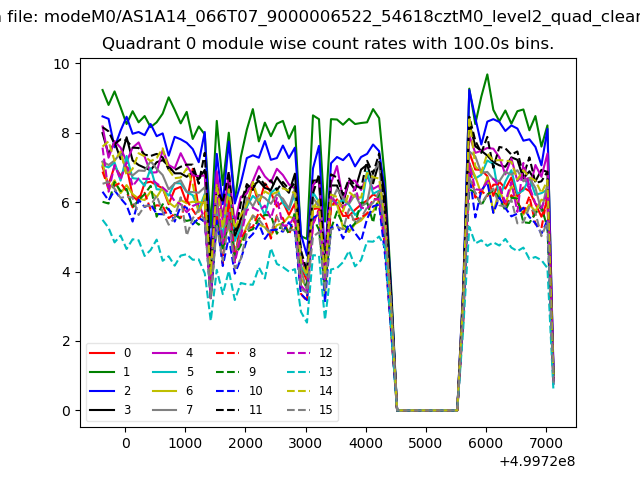

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

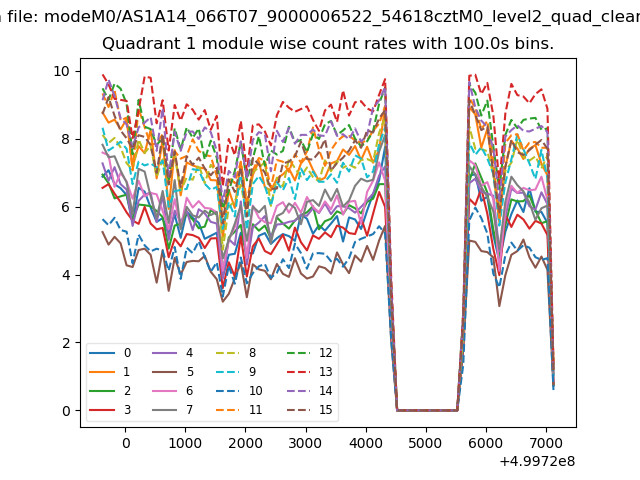

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

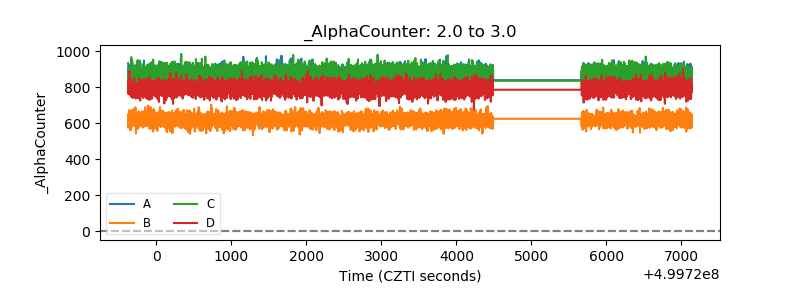

| Alpha Counter |  |
| _CPM_Rate |  |

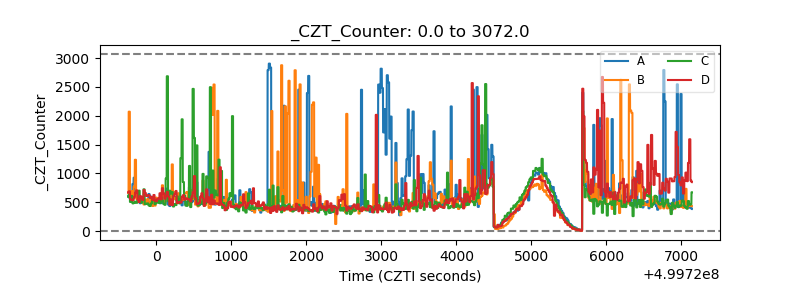

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

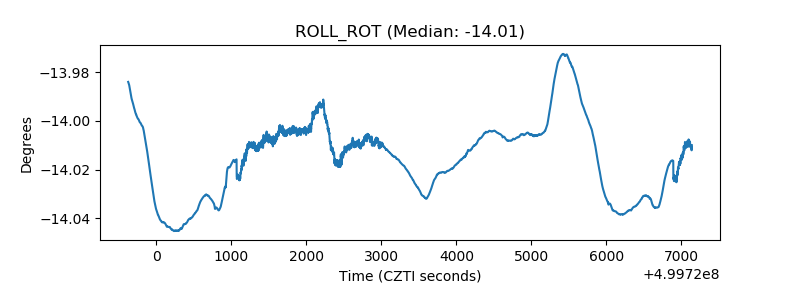

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
