| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54620cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54620cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,041,920 | 100,782,720 |
| Size | 525.5 MB | 96.1 MB |
| Events in quadrant A | 3,671,105 | 665,814 |
| Events in quadrant B | 3,974,427 | 711,208 |
| Events in quadrant C | 4,342,646 | 629,226 |
| Events in quadrant D | 7,872,346 | 562,127 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16038 | 2 |
| B | 0 | 16744 | 2 |
| C | 0 | 17944 | 2 |
| D | 0 | 28357 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6932 | 227 | 3.274668% |
| B | 6932 | 293 | 4.226774% |
| C | 6932 | 270 | 3.894980% |
| D | 6931 | 559 | 8.065214% |

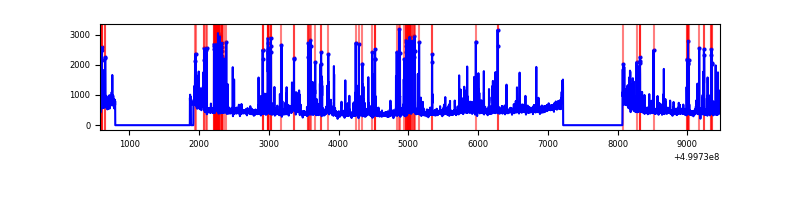

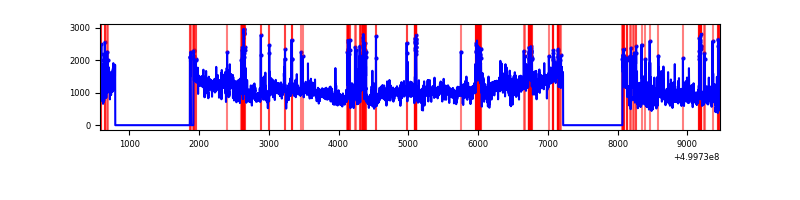

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8887 | 6934 | 138 | 138 | 1.55% | 1.99% |  |
| B | 8887 | 6933 | 132 | 132 | 1.49% | 1.90% |  |
| C | 8887 | 6934 | 164 | 164 | 1.85% | 2.37% |  |
| D | 8886 | 6932 | 243 | 243 | 2.73% | 3.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 230716 | 1217.05 | 768 | 748 | 189.0 |
| A | 0 | 8 | 209844 | 1106.59 | 768 | 748 | 189.0 |
| A | 5 | 243 | 54301 | 283.42 | 768 | 748 | 189.0 |
| B | 1 | 207 | 316835 | 1924.74 | 761 | 734 | 164.2 |
| B | 5 | 172 | 277545 | 1685.5 | 761 | 734 | 164.2 |
| B | 10 | 247 | 176066 | 1067.59 | 761 | 734 | 164.2 |
| C | 9 | 237 | 567283 | 2768.88 | 750 | 745 | 204.6 |
| C | 4 | 5 | 194198 | 945.48 | 750 | 745 | 204.6 |
| C | 14 | 96 | 191418 | 931.89 | 750 | 745 | 204.6 |
| D | 2 | 62 | 3839009 | 18330.93 | 729 | 696 | 209.4 |
| D | 8 | 160 | 526243 | 2509.9 | 729 | 696 | 209.4 |
| D | 2 | 172 | 319821 | 1524.07 | 729 | 696 | 209.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

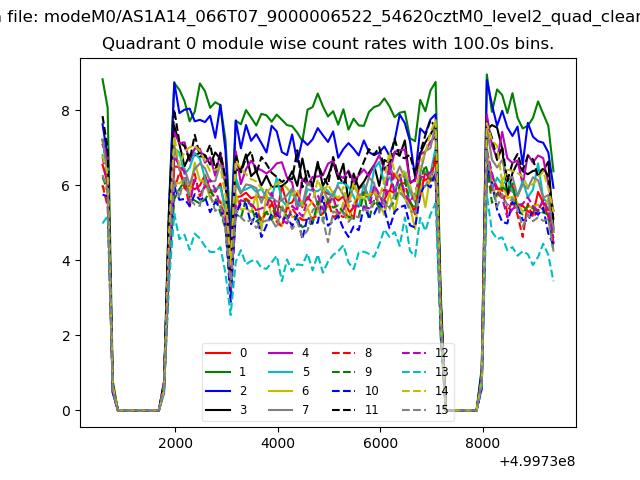

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

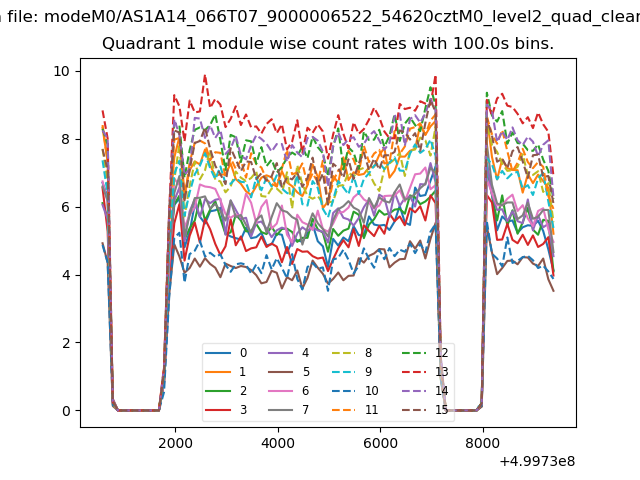

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

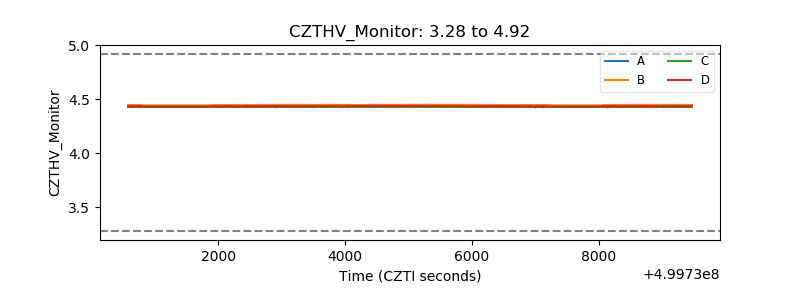

| CZT HV Monitor |  |
| D_VDD |  |

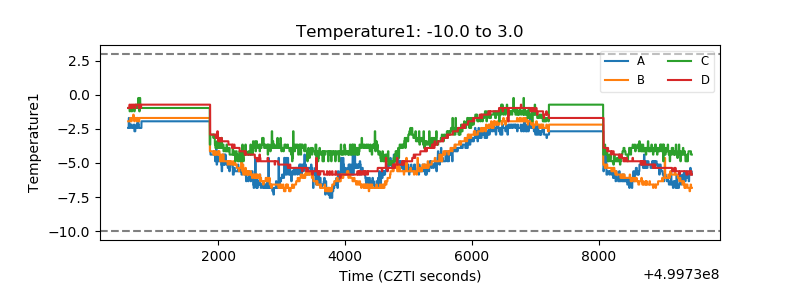

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

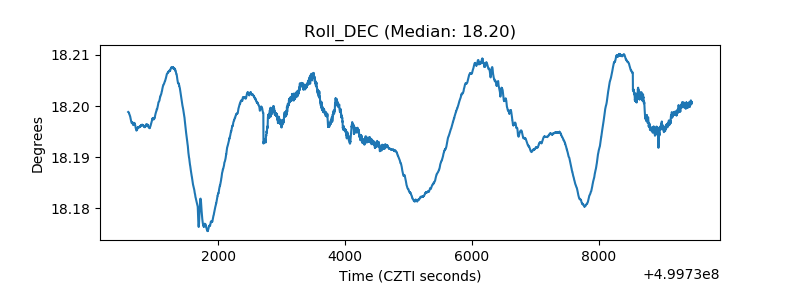

| _Roll_DEC |  |
| _Roll_RA |  |

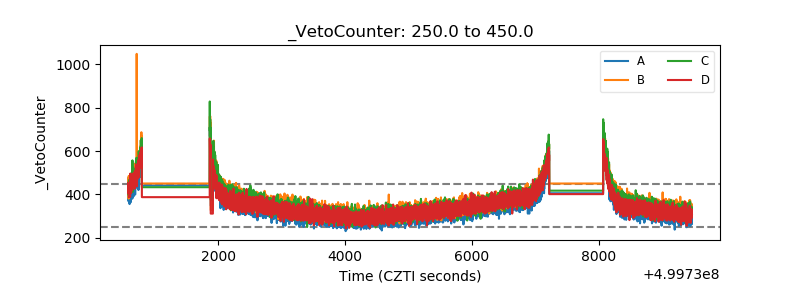

| Veto Counter |  |
