| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54621cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54621cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,903,680 | 110,177,280 |
| Size | 559.7 MB | 105.1 MB |
| Events in quadrant A | 3,888,914 | 730,448 |
| Events in quadrant B | 3,972,795 | 778,860 |
| Events in quadrant C | 5,611,161 | 672,244 |
| Events in quadrant D | 7,659,818 | 621,859 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17306 | 2 |
| B | 0 | 17455 | 2 |
| C | 0 | 22088 | 2 |
| D | 0 | 28320 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7647 | 162 | 2.118478% |
| B | 7646 | 222 | 2.903479% |
| C | 7647 | 444 | 5.806199% |
| D | 7647 | 505 | 6.603897% |

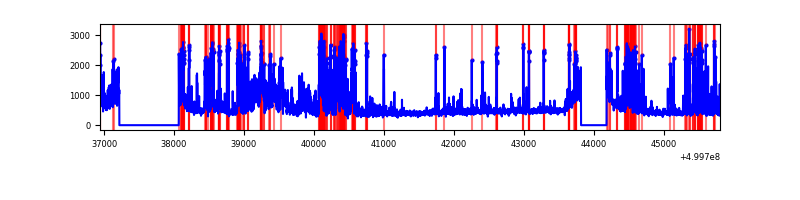

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8862 | 7648 | 83 | 83 | 0.94% | 1.09% |  |
| B | 8861 | 7647 | 41 | 41 | 0.46% | 0.54% |  |
| C | 8862 | 7648 | 341 | 341 | 3.85% | 4.46% |  |
| D | 8862 | 7647 | 151 | 151 | 1.70% | 1.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 223494 | 1059.12 | 856 | 834 | 210.2 |
| A | 0 | 8 | 86922 | 409.49 | 856 | 834 | 210.2 |
| A | 13 | 248 | 66250 | 311.16 | 856 | 834 | 210.2 |
| B | 5 | 172 | 418994 | 2273.73 | 850 | 820 | 183.9 |
| B | 10 | 247 | 92501 | 498.5 | 850 | 820 | 183.9 |
| B | 10 | 14 | 60045 | 322.02 | 850 | 820 | 183.9 |
| C | 9 | 237 | 1134128 | 5011.83 | 823 | 817 | 226.1 |
| C | 13 | 3 | 696266 | 3075.48 | 823 | 817 | 226.1 |
| C | 14 | 96 | 196694 | 866.22 | 823 | 817 | 226.1 |
| D | 2 | 62 | 3329420 | 14284.36 | 812 | 775 | 233.0 |
| D | 8 | 160 | 428460 | 1835.34 | 812 | 775 | 233.0 |
| D | 2 | 172 | 323211 | 1383.68 | 812 | 775 | 233.0 |

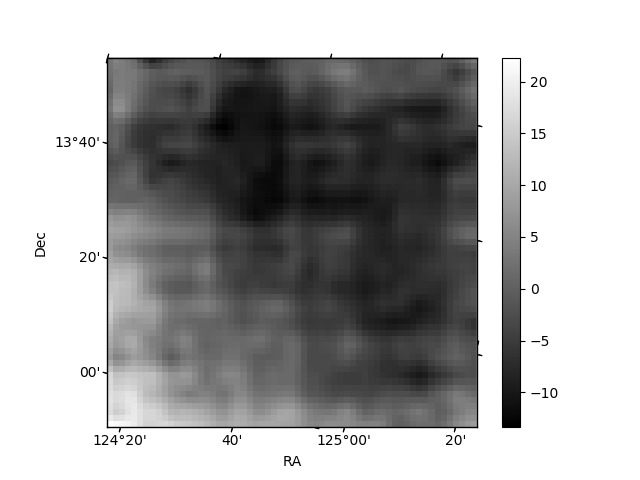

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

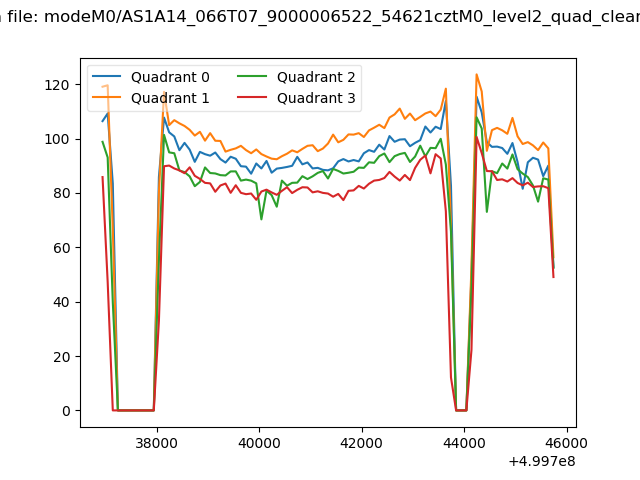

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

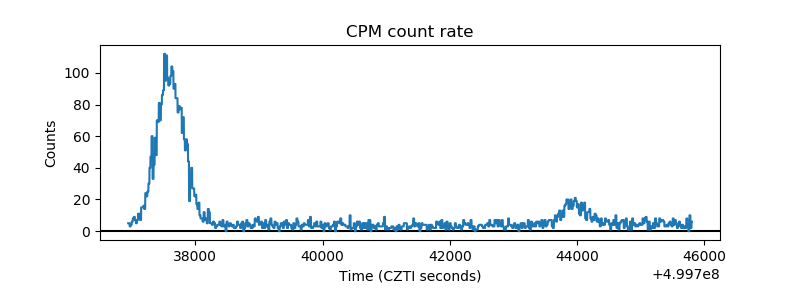

| _CPM_Rate |  |
| CZT Counter |  |

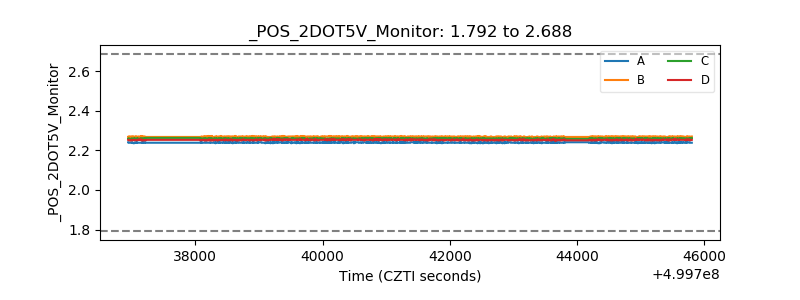

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

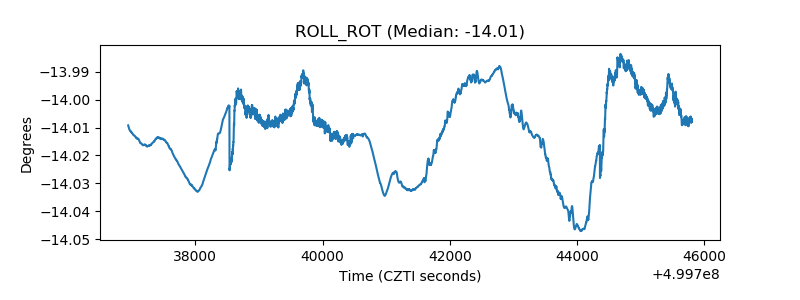

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

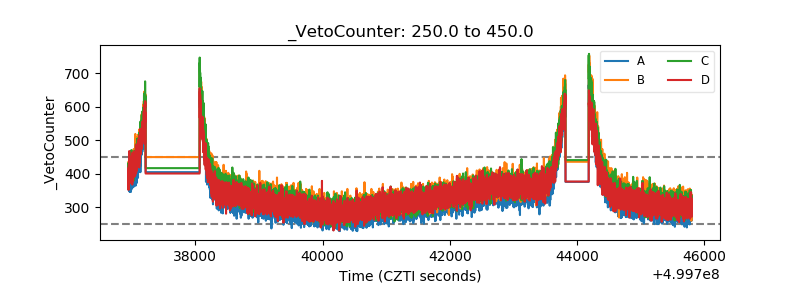

| Veto Counter |  |
