| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54632cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54632cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,514,240 | 90,941,760 |
| Size | 491.6 MB | 86.7 MB |
| Events in quadrant A | 3,512,469 | 652,548 |
| Events in quadrant B | 3,241,810 | 702,133 |
| Events in quadrant C | 7,934,225 | 380,755 |
| Events in quadrant D | 3,899,994 | 575,947 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14793 | 2 |
| B | 0 | 13997 | 2 |
| C | 0 | 27837 | 2 |
| D | 0 | 16022 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6344 | 160 | 2.522068% |
| B | 6343 | 122 | 1.923380% |
| C | 6343 | 2624 | 41.368438% |
| D | 6343 | 246 | 3.878291% |

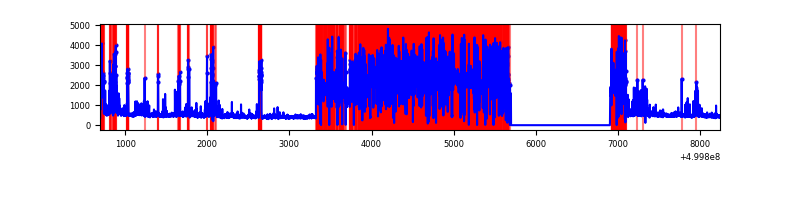

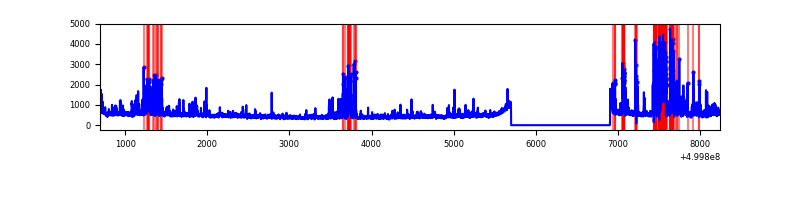

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7549 | 6345 | 84 | 84 | 1.11% | 1.32% |  |
| B | 7548 | 6344 | 35 | 35 | 0.46% | 0.55% |  |
| C | 7548 | 6343 | 1669 | 1669 | 22.11% | 26.31% |  |
| D | 7548 | 6344 | 170 | 170 | 2.25% | 2.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 215162 | 1186.57 | 731 | 713 | 180.7 |
| A | 13 | 248 | 202315 | 1115.49 | 731 | 713 | 180.7 |
| A | 4 | 249 | 127141 | 699.54 | 731 | 713 | 180.7 |
| B | 5 | 172 | 170770 | 1098.62 | 723 | 697 | 154.8 |
| B | 1 | 207 | 96171 | 616.73 | 723 | 697 | 154.8 |
| B | 10 | 247 | 34291 | 217.01 | 723 | 697 | 154.8 |
| C | 4 | 5 | 5515488 | 42138.94 | 475 | 474 | 130.9 |
| C | 13 | 3 | 265347 | 2023.83 | 475 | 474 | 130.9 |
| C | 6 | 223 | 115264 | 877.08 | 475 | 474 | 130.9 |
| D | 2 | 16 | 327572 | 1623.64 | 702 | 671 | 201.3 |
| D | 2 | 172 | 278420 | 1379.51 | 702 | 671 | 201.3 |
| D | 2 | 249 | 139419 | 689.13 | 702 | 671 | 201.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

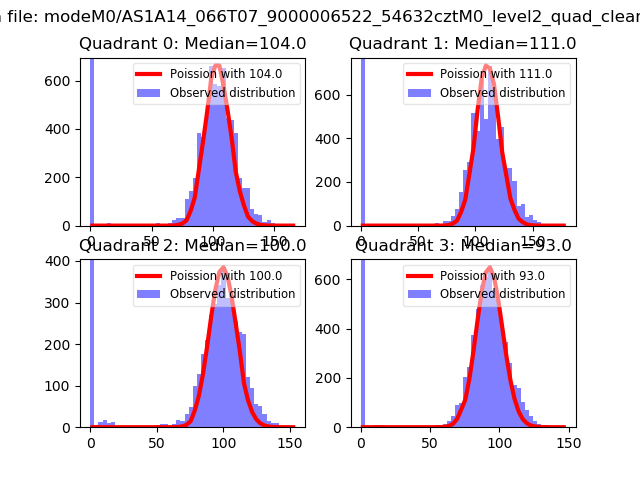

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

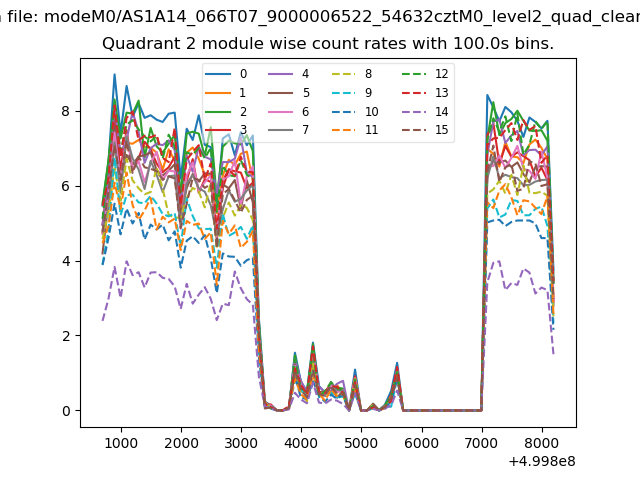

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

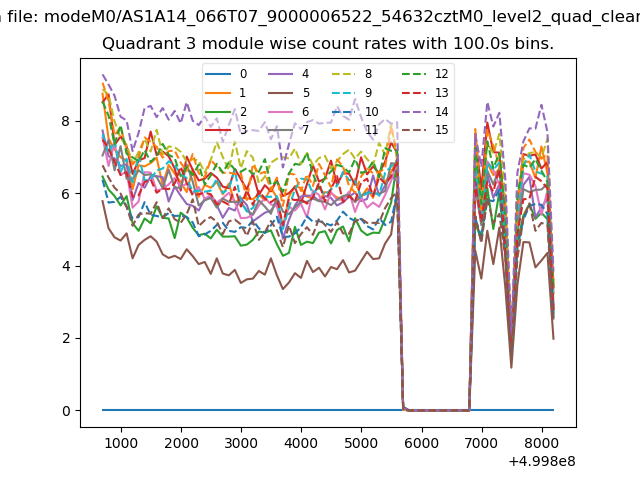

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

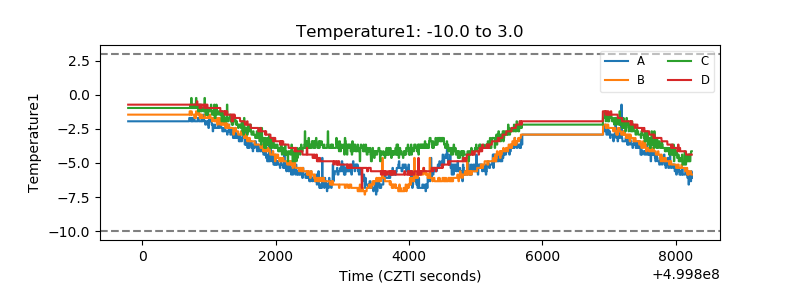

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

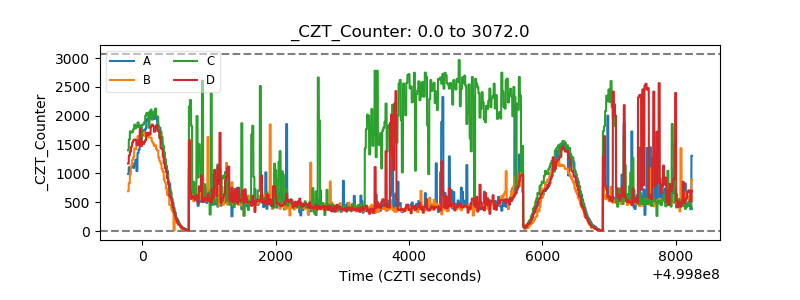

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

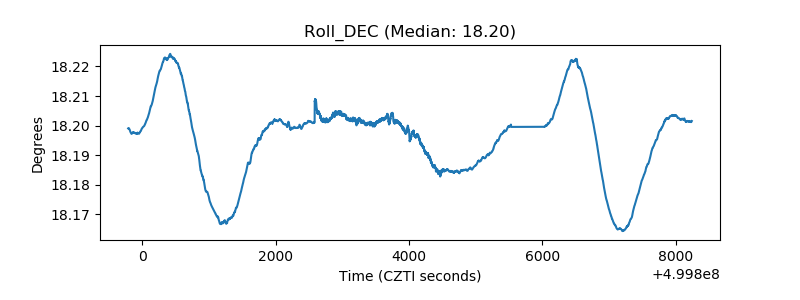

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
