| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54634cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54634cztM0_level2_quad_clean.evt |
| Size (bytes) | 396,550,080 | 97,600,320 |
| Size | 378.2 MB | 93.1 MB |
| Events in quadrant A | 3,447,089 | 641,024 |
| Events in quadrant B | 3,130,807 | 691,557 |
| Events in quadrant C | 3,424,863 | 616,783 |
| Events in quadrant D | 4,166,918 | 550,021 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14954 | 2 |
| B | 0 | 14134 | 2 |
| C | 0 | 14891 | 2 |
| D | 0 | 17212 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6539 | 204 | 3.119743% |
| B | 6539 | 120 | 1.835143% |
| C | 6539 | 65 | 0.994036% |
| D | 6539 | 397 | 6.071265% |

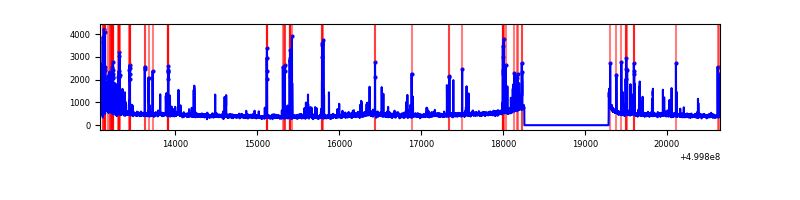

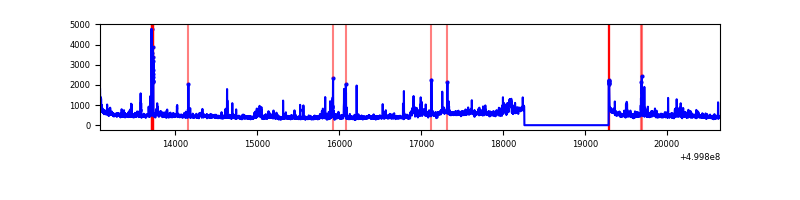

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7569 | 6540 | 95 | 95 | 1.26% | 1.45% |  |
| B | 7569 | 6540 | 32 | 32 | 0.42% | 0.49% |  |
| C | 7569 | 6540 | 33 | 33 | 0.44% | 0.50% |  |
| D | 7569 | 6540 | 346 | 346 | 4.57% | 5.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 243293 | 1353.21 | 722 | 705 | 179.3 |
| A | 11 | 3 | 195924 | 1088.97 | 722 | 705 | 179.3 |
| A | 5 | 240 | 62419 | 344.25 | 722 | 705 | 179.3 |
| B | 1 | 207 | 135910 | 865.43 | 721 | 695 | 156.2 |
| B | 5 | 172 | 73885 | 468.45 | 721 | 695 | 156.2 |
| B | 10 | 247 | 28581 | 178.48 | 721 | 695 | 156.2 |
| C | 9 | 38 | 332818 | 1710.69 | 709 | 703 | 194.1 |
| C | 1 | 16 | 74405 | 379.63 | 709 | 703 | 194.1 |
| C | 6 | 223 | 56356 | 286.66 | 709 | 703 | 194.1 |
| D | 3 | 12 | 987887 | 5084.76 | 681 | 650 | 194.2 |
| D | 8 | 160 | 203899 | 1046.83 | 681 | 650 | 194.2 |
| D | 15 | 94 | 68149 | 347.65 | 681 | 650 | 194.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

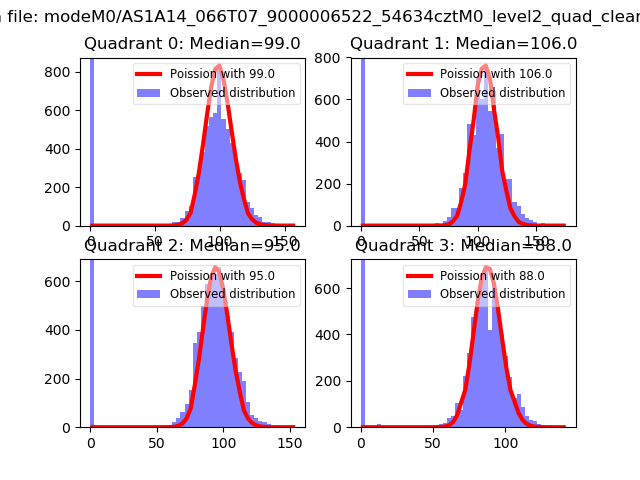

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

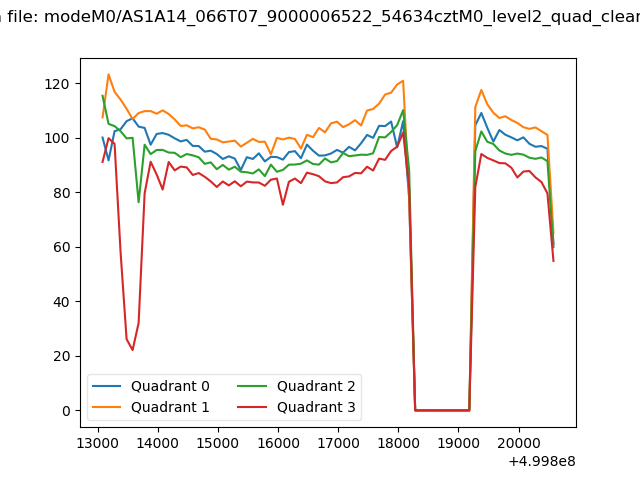

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

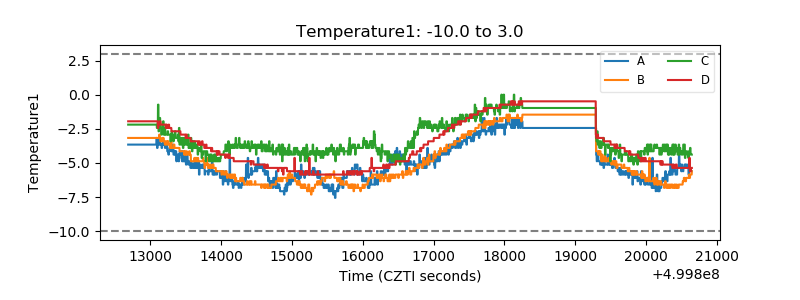

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

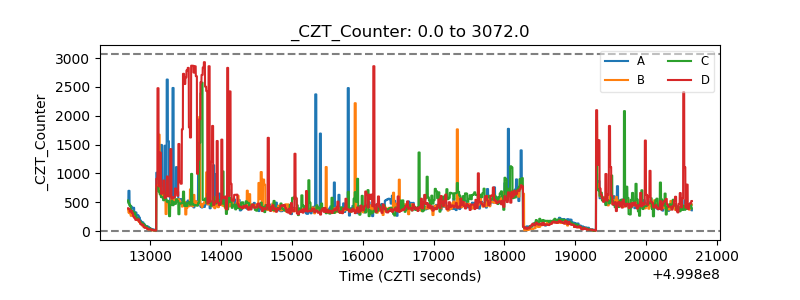

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

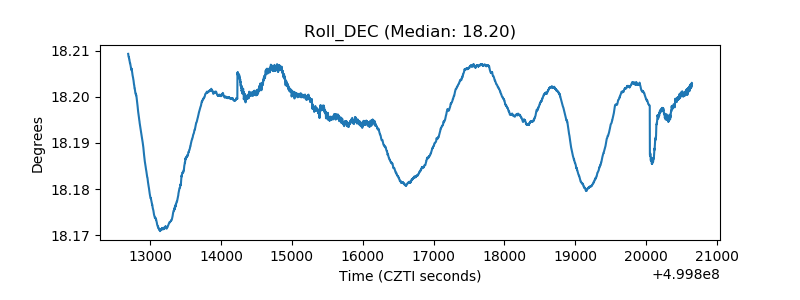

| _Roll_DEC |  |
| _Roll_RA |  |

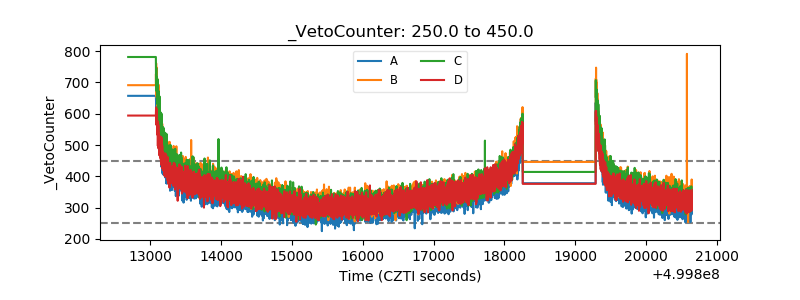

| Veto Counter |  |
