| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54644cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54644cztM0_level2_quad_clean.evt |
| Size (bytes) | 553,207,680 | 98,441,280 |
| Size | 527.6 MB | 93.9 MB |
| Events in quadrant A | 3,502,560 | 668,598 |
| Events in quadrant B | 3,570,174 | 713,723 |
| Events in quadrant C | 8,620,002 | 515,916 |
| Events in quadrant D | 4,245,300 | 597,607 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15330 | 2 |
| B | 0 | 15566 | 2 |
| C | 0 | 30514 | 2 |
| D | 0 | 17393 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6954 | 165 | 2.372735% |
| B | 6954 | 203 | 2.919183% |
| C | 6955 | 1483 | 21.322789% |
| D | 6955 | 189 | 2.717469% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

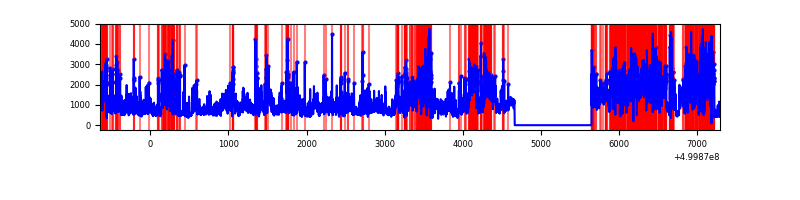

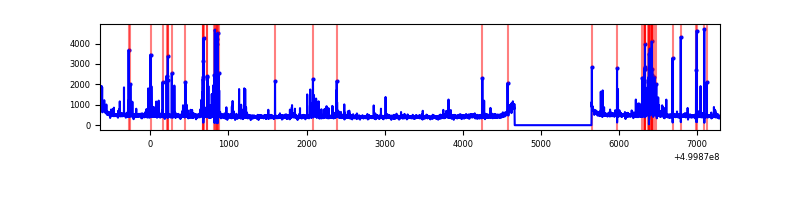

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7939 | 6955 | 54 | 54 | 0.68% | 0.78% |  |
| B | 7939 | 6955 | 79 | 79 | 1.00% | 1.14% |  |
| C | 7940 | 6956 | 1095 | 1095 | 13.79% | 15.74% |  |
| D | 7940 | 6956 | 103 | 103 | 1.30% | 1.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 240 | 157315 | 818.31 | 782 | 761 | 191.3 |
| A | 11 | 3 | 132563 | 688.93 | 782 | 761 | 191.3 |
| A | 4 | 249 | 75635 | 391.37 | 782 | 761 | 191.3 |
| B | 5 | 172 | 319701 | 1924.73 | 771 | 745 | 165.7 |
| B | 1 | 207 | 47628 | 282.91 | 771 | 745 | 165.7 |
| B | 7 | 0 | 44017 | 261.12 | 771 | 745 | 165.7 |
| C | 9 | 38 | 5228610 | 27503.05 | 696 | 690 | 190.1 |
| C | 6 | 223 | 302410 | 1587.29 | 696 | 690 | 190.1 |
| C | 4 | 5 | 120999 | 632.92 | 696 | 690 | 190.1 |
| D | 8 | 160 | 507512 | 2344.56 | 759 | 726 | 216.2 |
| D | 15 | 94 | 277470 | 1280.31 | 759 | 726 | 216.2 |
| D | 6 | 239 | 206810 | 953.41 | 759 | 726 | 216.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

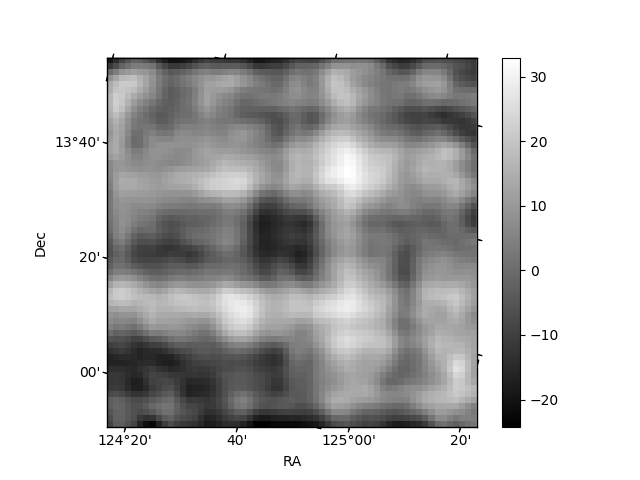

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

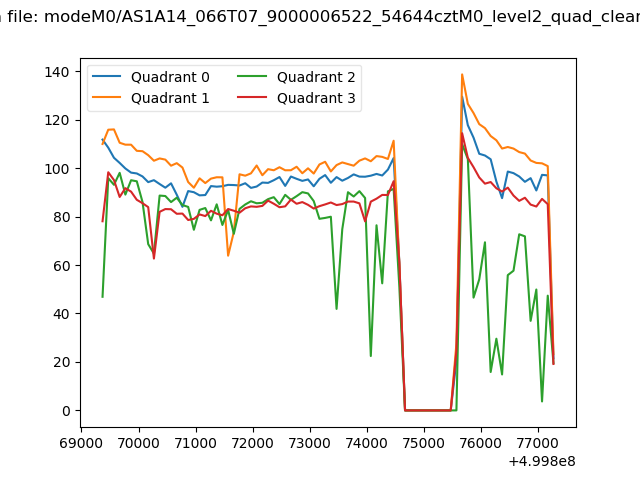

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

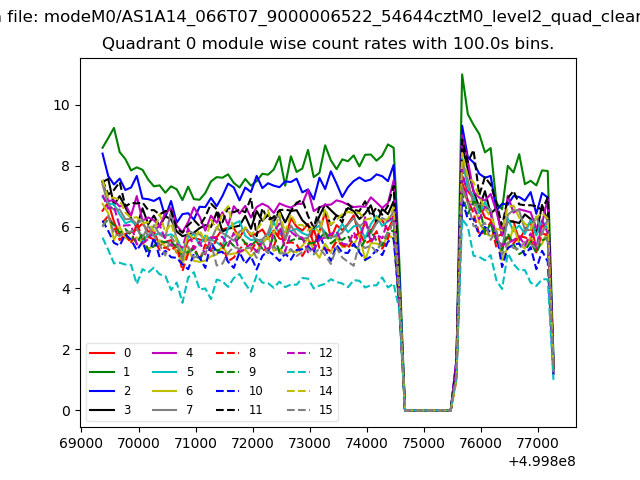

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

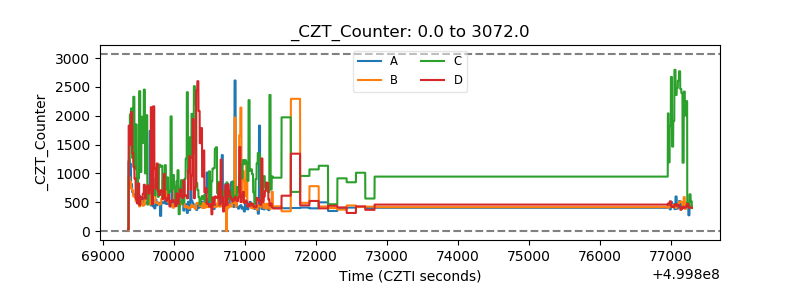

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

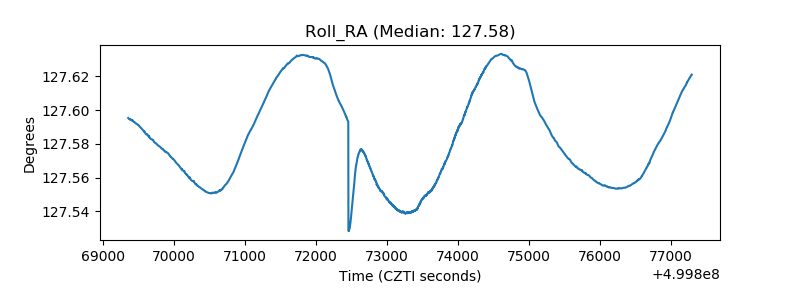

| _Roll_RA |  |

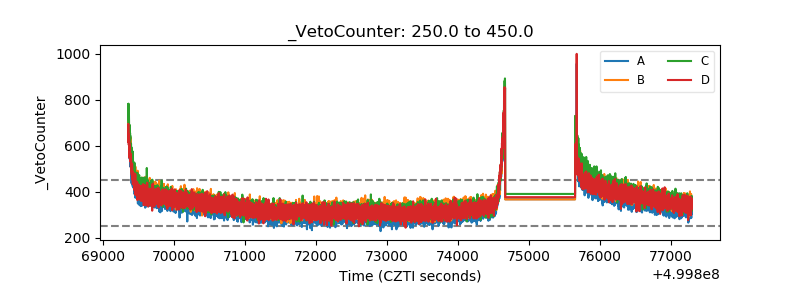

| Veto Counter |  |
