| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54645cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54645cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,042,560 | 94,501,440 |
| Size | 533.1 MB | 90.1 MB |
| Events in quadrant A | 3,401,533 | 664,830 |
| Events in quadrant B | 3,448,504 | 707,822 |
| Events in quadrant C | 9,952,716 | 428,451 |
| Events in quadrant D | 3,378,311 | 600,061 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14691 | 2 |
| B | 0 | 14826 | 11 |
| C | 0 | 34052 | 2 |
| D | 0 | 14689 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6601 | 111 | 1.681563% |
| B | 6598 | 159 | 2.409821% |
| C | 6601 | 2413 | 36.555067% |
| D | 6601 | 68 | 1.030147% |

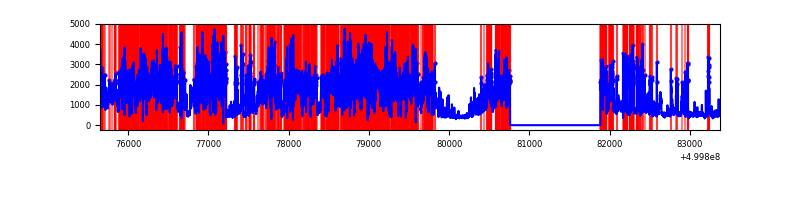

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7726 | 6602 | 50 | 50 | 0.65% | 0.76% |  |
| B | 7726 | 6600 | 75 | 75 | 0.97% | 1.14% |  |
| C | 7726 | 6601 | 1948 | 1948 | 25.21% | 29.51% |  |
| D | 7726 | 6602 | 38 | 38 | 0.49% | 0.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 158815 | 852.79 | 753 | 734 | 185.4 |
| A | 5 | 240 | 117158 | 628.06 | 753 | 734 | 185.4 |
| A | 7 | 190 | 107402 | 575.43 | 753 | 734 | 185.4 |
| B | 10 | 247 | 418872 | 2632.32 | 741 | 714 | 158.9 |
| B | 0 | 245 | 26524 | 162.48 | 741 | 714 | 158.9 |
| B | 1 | 207 | 25865 | 158.33 | 741 | 714 | 158.9 |
| C | 9 | 38 | 7125910 | 41576.75 | 624 | 616 | 171.4 |
| C | 4 | 5 | 121867 | 707.51 | 624 | 616 | 171.4 |
| C | 6 | 223 | 90456 | 524.22 | 624 | 616 | 171.4 |
| D | 6 | 239 | 138999 | 663.62 | 735 | 702 | 208.4 |
| D | 15 | 94 | 122747 | 585.63 | 735 | 702 | 208.4 |
| D | 8 | 160 | 82797 | 393.93 | 735 | 702 | 208.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

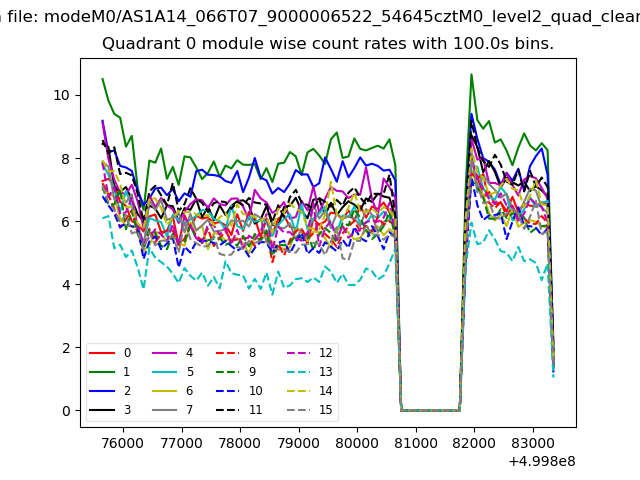

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

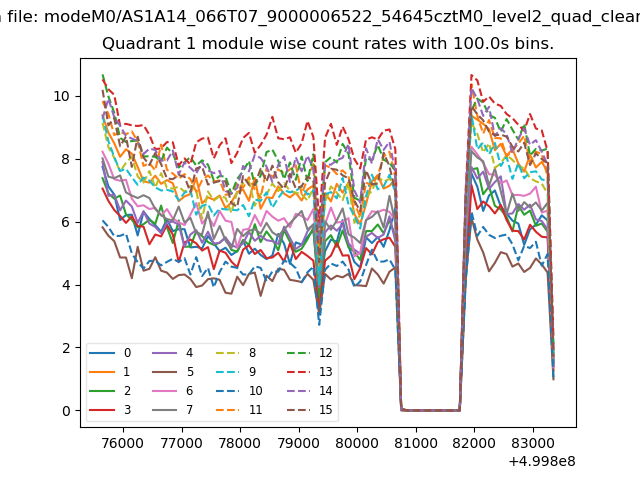

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

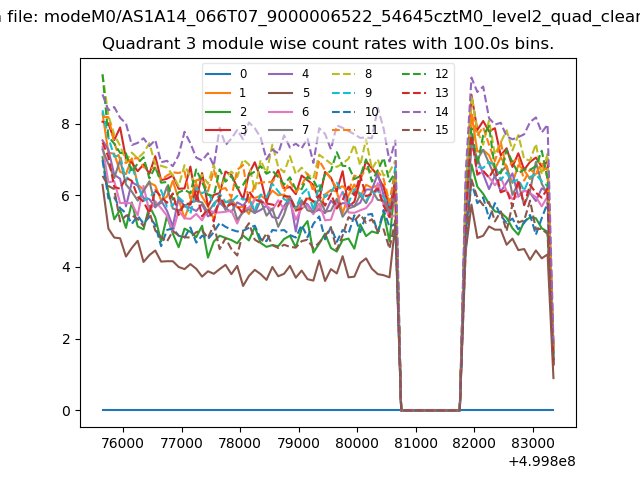

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

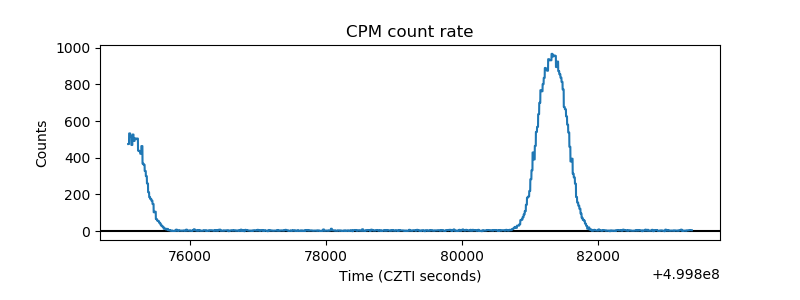

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

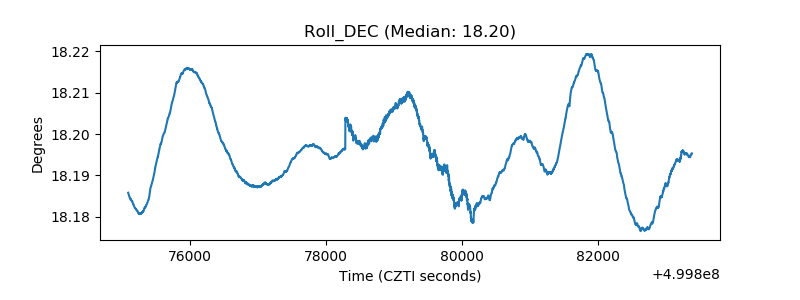

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
