| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54649cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54649cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,272,000 | 97,992,000 |
| Size | 496.2 MB | 93.5 MB |
| Events in quadrant A | 3,801,052 | 659,056 |
| Events in quadrant B | 3,189,725 | 712,178 |
| Events in quadrant C | 3,636,916 | 620,092 |
| Events in quadrant D | 8,103,587 | 502,400 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16034 | 2 |
| B | 0 | 14554 | 2 |
| C | 0 | 15969 | 2 |
| D | 0 | 28891 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6789 | 128 | 1.885403% |
| B | 6789 | 75 | 1.104728% |
| C | 6789 | 160 | 2.356754% |
| D | 6789 | 1321 | 19.457947% |

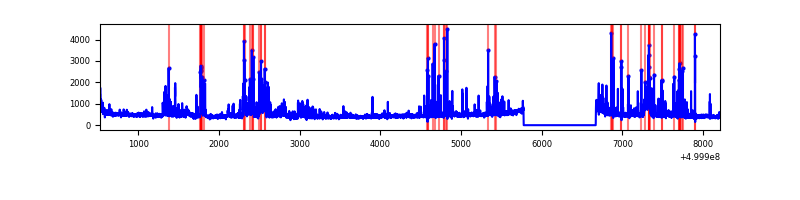

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7684 | 6790 | 64 | 64 | 0.83% | 0.94% |  |
| B | 7684 | 6790 | 18 | 18 | 0.23% | 0.27% |  |
| C | 7684 | 6790 | 79 | 79 | 1.03% | 1.16% |  |
| D | 7684 | 6790 | 1035 | 1035 | 13.47% | 15.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 190 | 598181 | 3262.5 | 744 | 727 | 183.1 |
| A | 11 | 3 | 187506 | 1019.94 | 744 | 727 | 183.1 |
| A | 0 | 8 | 40884 | 219.28 | 744 | 727 | 183.1 |
| B | 10 | 247 | 113069 | 697.16 | 744 | 716 | 161.2 |
| B | 5 | 172 | 48031 | 293.59 | 744 | 716 | 161.2 |
| B | 4 | 170 | 32608 | 197.89 | 744 | 716 | 161.2 |
| C | 6 | 223 | 270416 | 1364.35 | 719 | 712 | 197.7 |
| C | 13 | 3 | 205412 | 1035.51 | 719 | 712 | 197.7 |
| C | 4 | 5 | 193823 | 976.89 | 719 | 712 | 197.7 |
| D | 2 | 62 | 3858519 | 19536.5 | 687 | 656 | 197.5 |
| D | 14 | 52 | 429542 | 2171.91 | 687 | 656 | 197.5 |
| D | 15 | 94 | 324392 | 1639.42 | 687 | 656 | 197.5 |

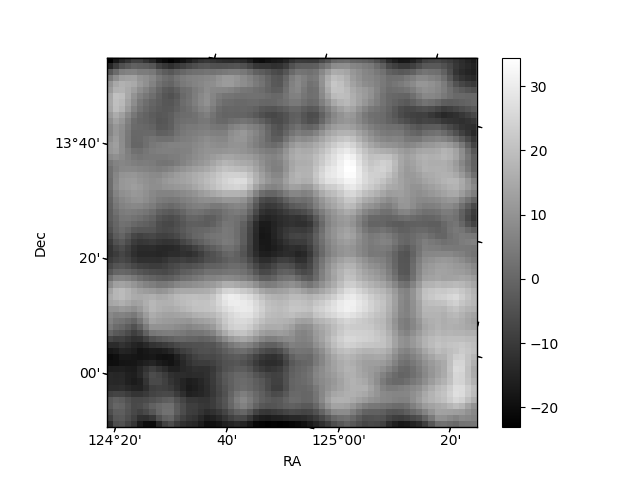

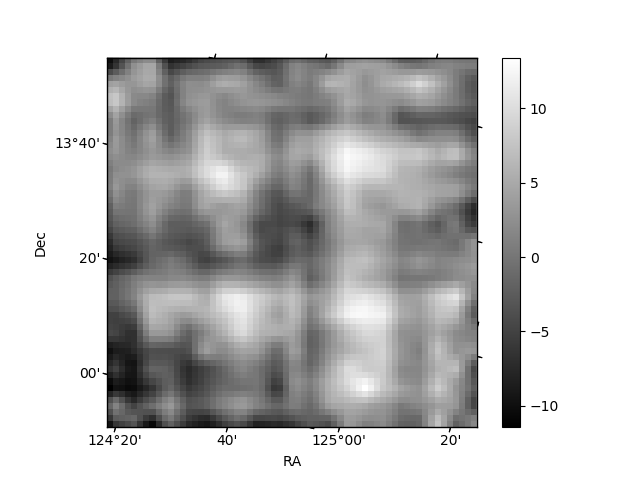

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

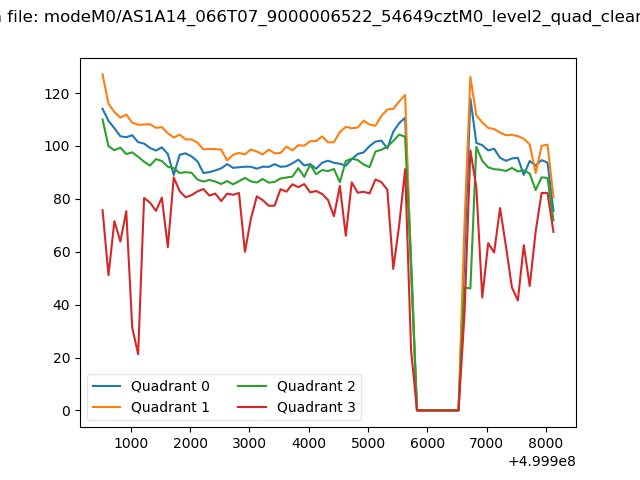

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

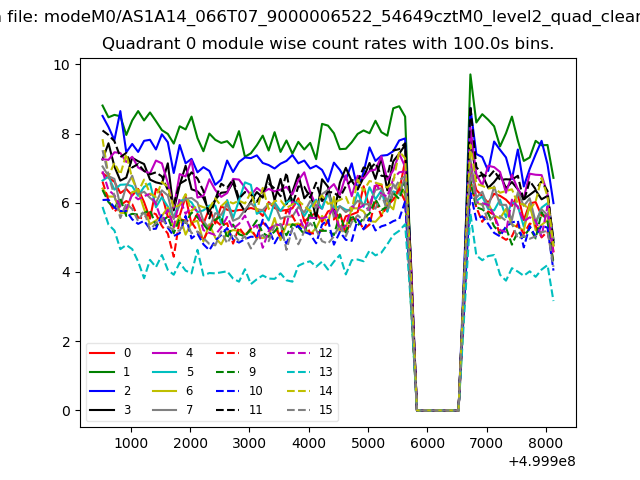

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

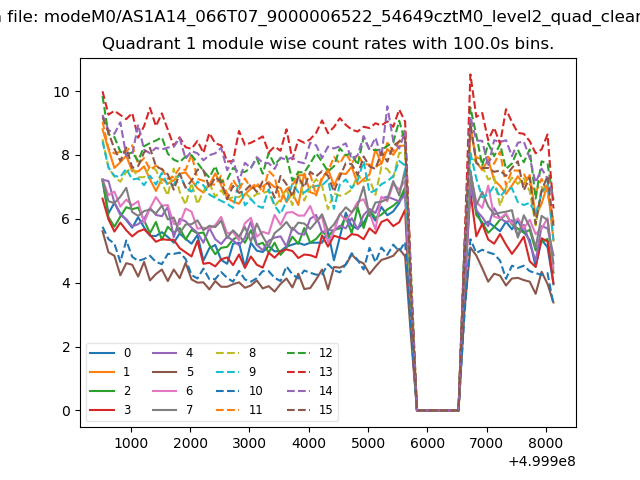

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

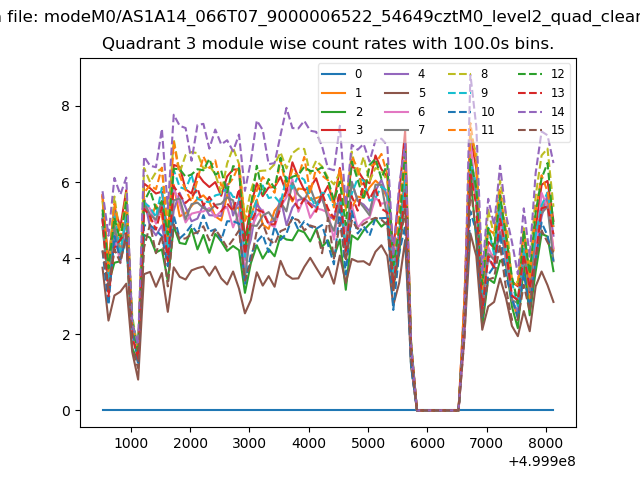

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

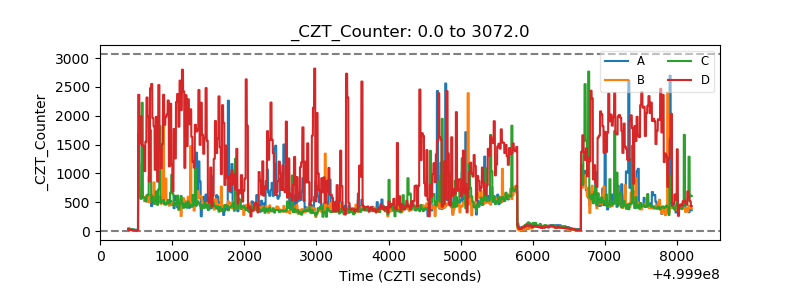

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
