| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54656cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54656cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,371,162,240 | 219,084,480 |
| Size | 1.3 GB | 208.9 MB |
| Events in quadrant A | 8,519,967 | 1,496,209 |
| Events in quadrant B | 9,570,119 | 1,587,467 |
| Events in quadrant C | 9,955,234 | 1,423,838 |
| Events in quadrant D | 21,423,395 | 978,189 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37600 | 3 |
| B | 0 | 40097 | 3 |
| C | 0 | 41363 | 3 |
| D | 0 | 75107 | 19 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 340 | 0 |
| B | 0 | 340 | 0 |
| C | 0 | 340 | 0 |
| D | 0 | 340 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16627 | 662 | 3.981476% |
| B | 16628 | 852 | 5.123887% |
| C | 16628 | 649 | 3.903055% |
| D | 16626 | 5125 | 30.825214% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17967 | 16631 | 295 | 295 | 1.64% | 1.77% |  |
| B | 17968 | 16631 | 301 | 301 | 1.68% | 1.81% |  |
| C | 17968 | 16632 | 363 | 363 | 2.02% | 2.18% |  |
| D | 17968 | 16628 | 3776 | 3776 | 21.02% | 22.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 1046074 | 2355.85 | 1812 | 1765 | 443.3 |
| A | 13 | 248 | 99846 | 221.26 | 1812 | 1765 | 443.3 |
| A | 3 | 110 | 99456 | 220.38 | 1812 | 1765 | 443.3 |
| B | 2 | 249 | 945692 | 2479.07 | 1771 | 1702 | 380.8 |
| B | 5 | 172 | 852548 | 2234.46 | 1771 | 1702 | 380.8 |
| B | 10 | 247 | 364004 | 951.46 | 1771 | 1702 | 380.8 |
| C | 4 | 5 | 1044685 | 2172.63 | 1757 | 1735 | 480.0 |
| C | 9 | 38 | 1018117 | 2117.28 | 1757 | 1735 | 480.0 |
| C | 13 | 3 | 464305 | 963.6 | 1757 | 1735 | 480.0 |
| D | 2 | 62 | 7574183 | 17474.98 | 1534 | 1463 | 433.3 |
| D | 11 | 129 | 6642268 | 15324.47 | 1534 | 1463 | 433.3 |
| D | 6 | 239 | 494084 | 1136.78 | 1534 | 1463 | 433.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

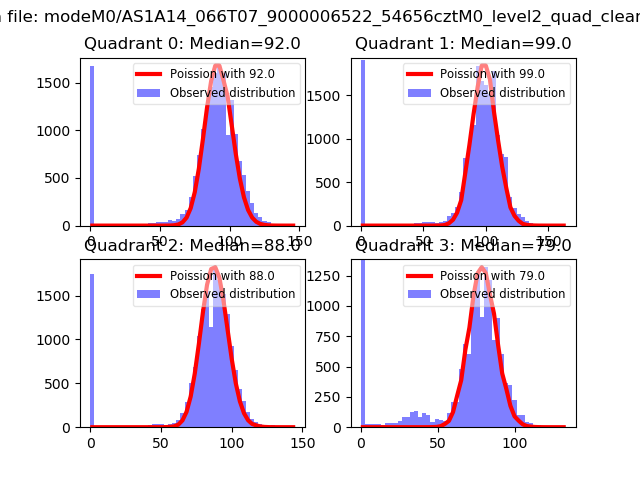

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

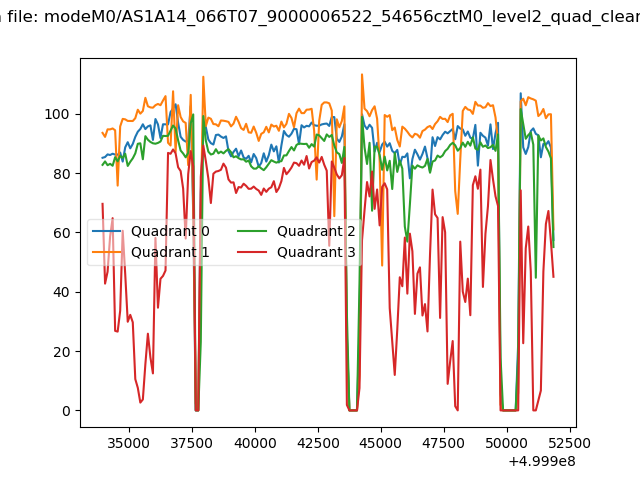

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

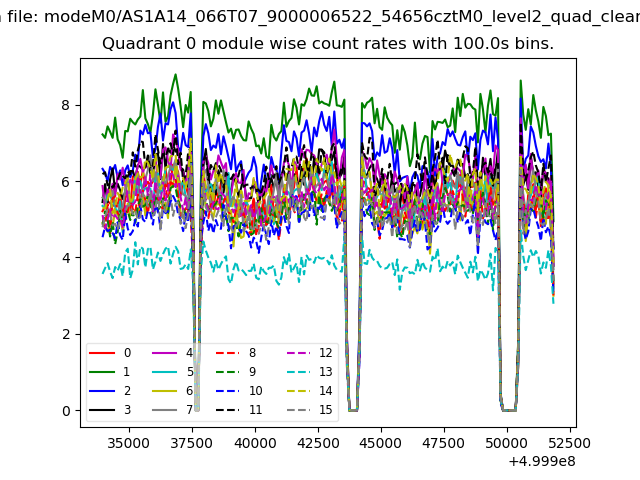

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
