| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54673cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54673cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,458,240 | 95,083,200 |
| Size | 562.2 MB | 90.7 MB |
| Events in quadrant A | 3,809,124 | 647,300 |
| Events in quadrant B | 3,593,560 | 700,963 |
| Events in quadrant C | 4,280,336 | 621,273 |
| Events in quadrant D | 9,600,317 | 428,098 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16130 | 1 |
| B | 0 | 15498 | 1 |
| C | 0 | 17497 | 1 |
| D | 0 | 33291 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6908 | 253 | 3.662420% |
| B | 6908 | 172 | 2.489867% |
| C | 6908 | 197 | 2.851766% |
| D | 6908 | 2249 | 32.556456% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

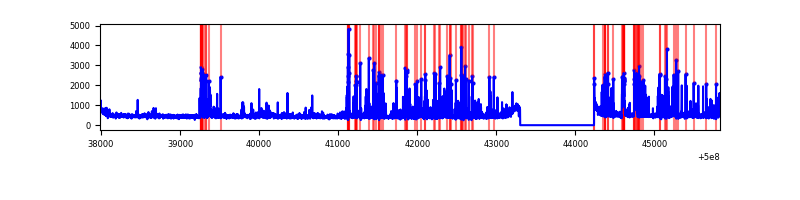

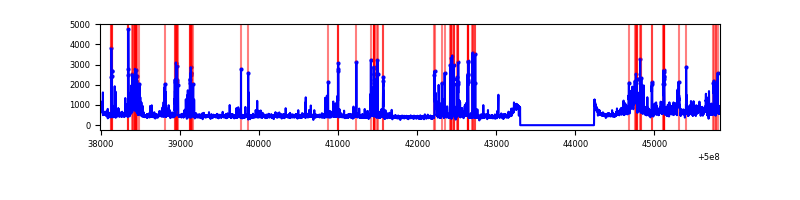

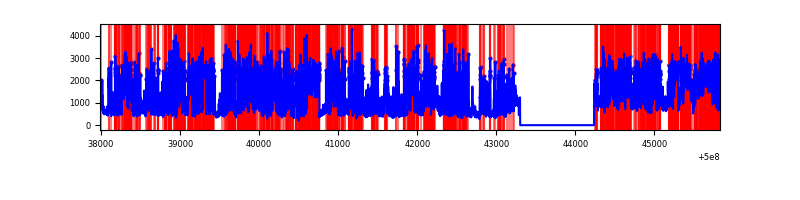

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7843 | 6908 | 119 | 119 | 1.52% | 1.72% |  |
| B | 7843 | 6908 | 58 | 58 | 0.74% | 0.84% |  |
| C | 7843 | 6908 | 113 | 113 | 1.44% | 1.64% |  |
| D | 7842 | 6907 | 1803 | 1803 | 22.99% | 26.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 443172 | 2379.19 | 762 | 745 | 186.0 |
| A | 5 | 240 | 100864 | 538.4 | 762 | 745 | 186.0 |
| A | 0 | 8 | 91190 | 486.37 | 762 | 745 | 186.0 |
| B | 0 | 213 | 215047 | 1322.49 | 752 | 725 | 162.1 |
| B | 2 | 249 | 207616 | 1276.64 | 752 | 725 | 162.1 |
| B | 10 | 247 | 65390 | 399.02 | 752 | 725 | 162.1 |
| C | 9 | 38 | 639304 | 3128.14 | 744 | 738 | 204.1 |
| C | 1 | 241 | 162489 | 792.37 | 744 | 738 | 204.1 |
| C | 13 | 3 | 151281 | 737.46 | 744 | 738 | 204.1 |
| D | 11 | 129 | 5901245 | 33397.17 | 632 | 604 | 176.7 |
| D | 2 | 62 | 884239 | 5001.31 | 632 | 604 | 176.7 |
| D | 15 | 94 | 52292 | 292.55 | 632 | 604 | 176.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

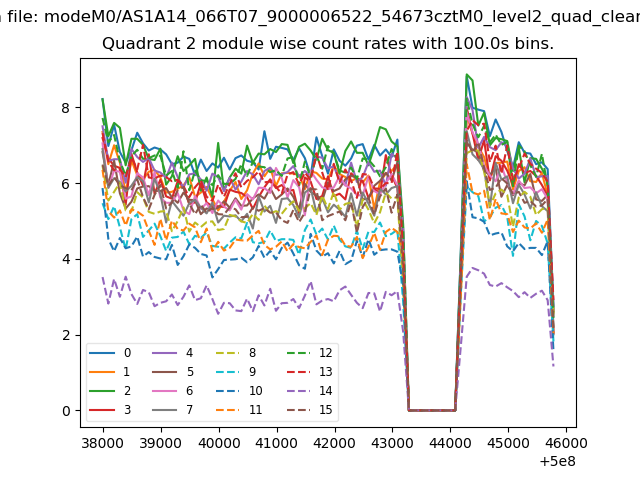

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

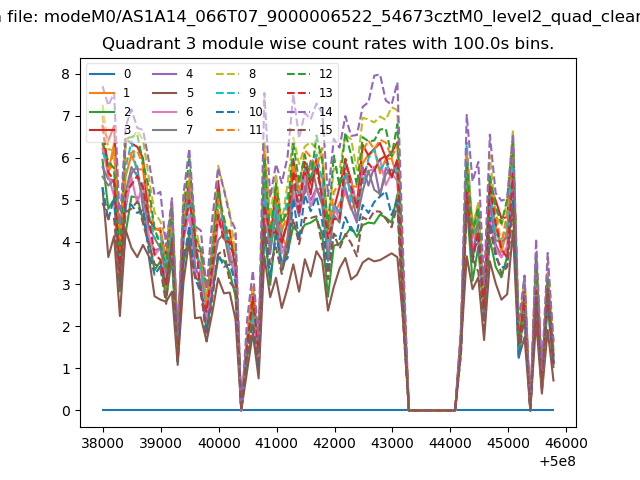

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

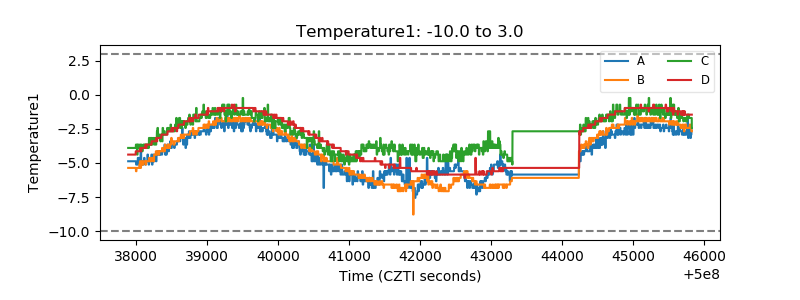

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

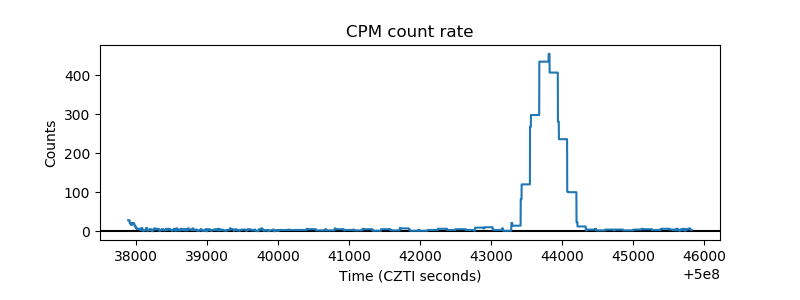

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

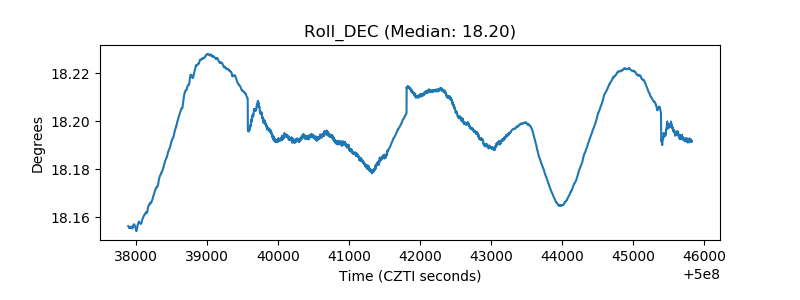

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
