| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54675cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54675cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,654,400 | 92,937,600 |
| Size | 523.2 MB | 88.6 MB |
| Events in quadrant A | 4,116,786 | 626,869 |
| Events in quadrant B | 3,240,800 | 703,722 |
| Events in quadrant C | 4,054,589 | 616,481 |
| Events in quadrant D | 8,398,095 | 419,191 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16705 | 2 |
| B | 0 | 14166 | 2 |
| C | 0 | 16383 | 2 |
| D | 0 | 29326 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6423 | 428 | 6.663553% |
| B | 6423 | 93 | 1.447922% |
| C | 6423 | 232 | 3.612019% |
| D | 6422 | 2113 | 32.902523% |

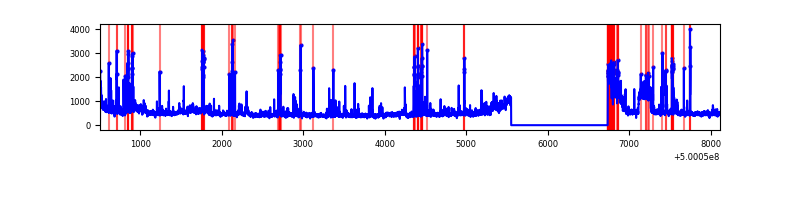

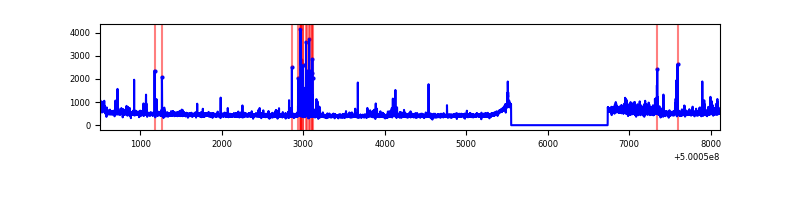

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7608 | 6423 | 343 | 343 | 4.51% | 5.34% |  |
| B | 7608 | 6423 | 20 | 20 | 0.26% | 0.31% |  |
| C | 7608 | 6423 | 151 | 151 | 1.98% | 2.35% |  |
| D | 7607 | 6422 | 1746 | 1746 | 22.95% | 27.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 797765 | 4494.06 | 719 | 701 | 177.4 |
| A | 7 | 14 | 232245 | 1305.51 | 719 | 701 | 177.4 |
| A | 5 | 240 | 117263 | 657.21 | 719 | 701 | 177.4 |
| B | 0 | 213 | 160748 | 1027.32 | 729 | 703 | 155.8 |
| B | 2 | 249 | 94912 | 604.72 | 729 | 703 | 155.8 |
| B | 10 | 247 | 66014 | 419.23 | 729 | 703 | 155.8 |
| C | 4 | 5 | 564619 | 2900.49 | 714 | 711 | 194.4 |
| C | 9 | 38 | 172098 | 881.54 | 714 | 711 | 194.4 |
| C | 13 | 3 | 94872 | 484.32 | 714 | 711 | 194.4 |
| D | 11 | 129 | 5044606 | 29597.15 | 597 | 571 | 170.4 |
| D | 2 | 62 | 569302 | 3337.17 | 597 | 571 | 170.4 |
| D | 2 | 172 | 128766 | 752.22 | 597 | 571 | 170.4 |

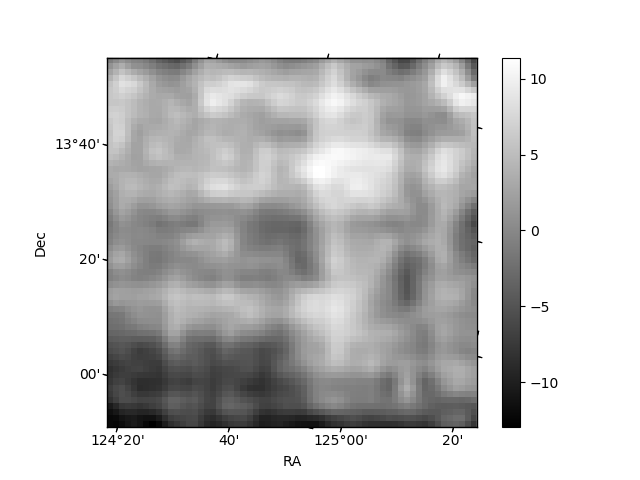

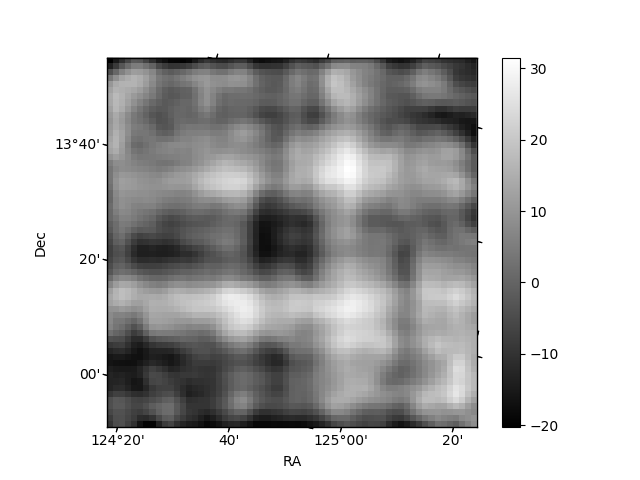

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

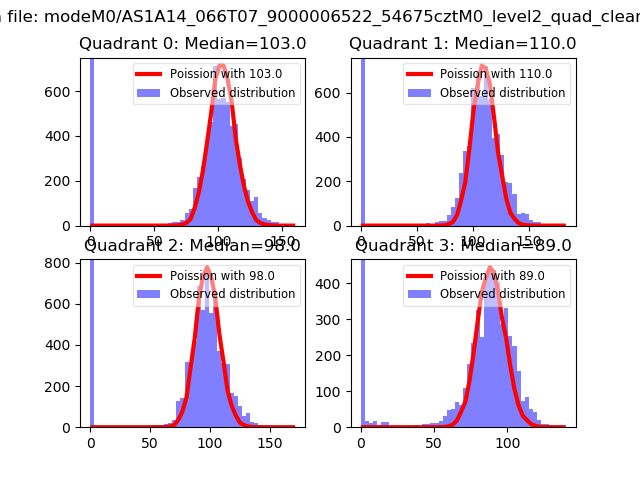

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

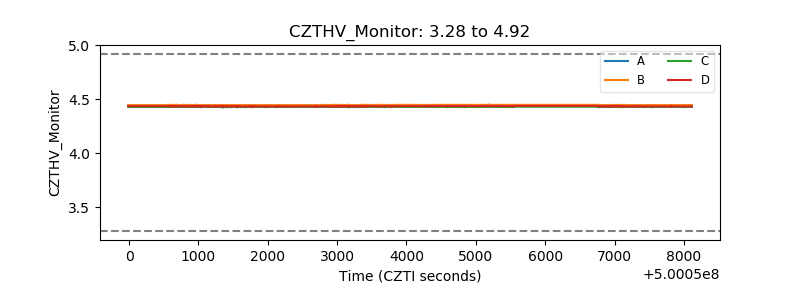

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

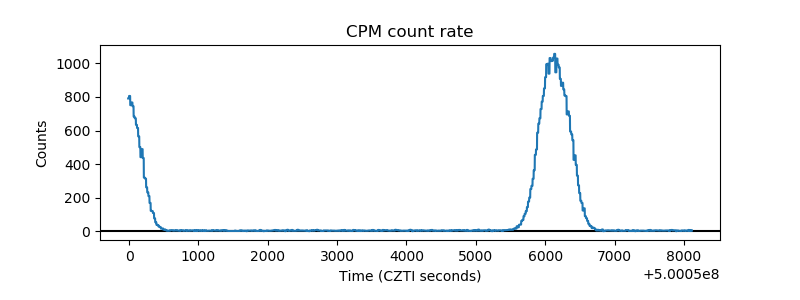

| _CPM_Rate |  |

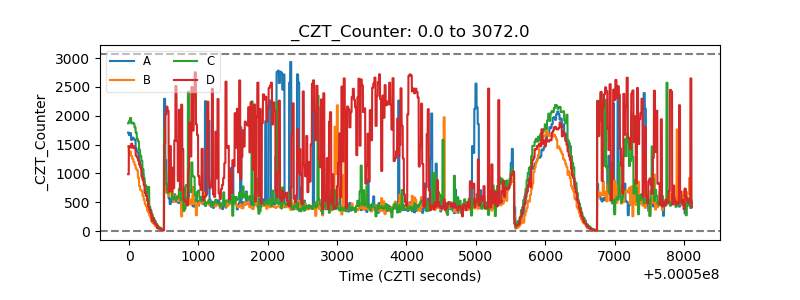

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
