| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_066T07_9000006522_54688cztM0_level2.fits | modeM0/AS1A14_066T07_9000006522_54688cztM0_level2_quad_clean.evt |
| Size (bytes) | 624,072,960 | 92,554,560 |
| Size | 595.2 MB | 88.3 MB |
| Events in quadrant A | 3,773,502 | 651,321 |
| Events in quadrant B | 3,574,760 | 698,709 |
| Events in quadrant C | 3,761,549 | 622,682 |
| Events in quadrant D | 11,463,524 | 355,928 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15971 | 2 |
| B | 0 | 15337 | 2 |
| C | 0 | 16140 | 2 |
| D | 0 | 38740 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6794 | 216 | 3.179276% |
| B | 6794 | 169 | 2.487489% |
| C | 6794 | 131 | 1.928172% |
| D | 6794 | 3072 | 45.216367% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7818 | 6793 | 142 | 142 | 1.82% | 2.09% |  |
| B | 7818 | 6793 | 70 | 70 | 0.90% | 1.03% |  |
| C | 7818 | 6793 | 71 | 71 | 0.91% | 1.05% |  |
| D | 7818 | 6793 | 2958 | 2958 | 37.84% | 43.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 628149 | 3370.66 | 755 | 736 | 186.1 |
| A | 4 | 3 | 40352 | 212.83 | 755 | 736 | 186.1 |
| A | 5 | 240 | 35785 | 188.29 | 755 | 736 | 186.1 |
| B | 2 | 249 | 403784 | 2529.74 | 741 | 714 | 159.3 |
| B | 0 | 213 | 71984 | 447.3 | 741 | 714 | 159.3 |
| B | 7 | 0 | 46409 | 286.79 | 741 | 714 | 159.3 |
| C | 4 | 5 | 404887 | 1997.54 | 734 | 730 | 202.3 |
| C | 6 | 223 | 282600 | 1393.14 | 734 | 730 | 202.3 |
| C | 14 | 254 | 61781 | 301.74 | 734 | 730 | 202.3 |
| D | 11 | 129 | 5568310 | 32830.43 | 590 | 563 | 169.6 |
| D | 11 | 176 | 2247956 | 13251.84 | 590 | 563 | 169.6 |
| D | 2 | 62 | 436882 | 2572.77 | 590 | 563 | 169.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

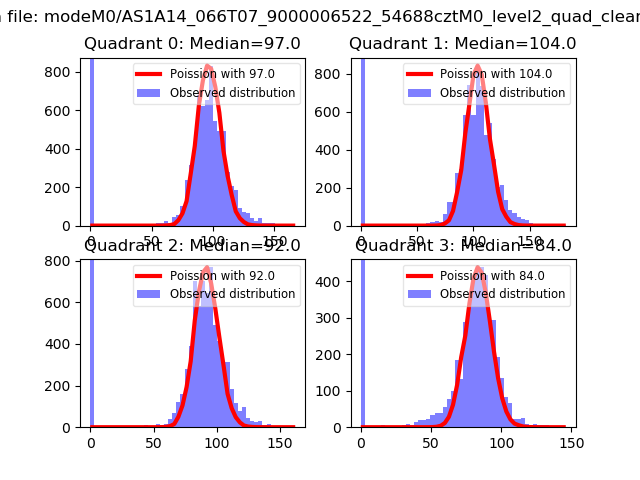

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

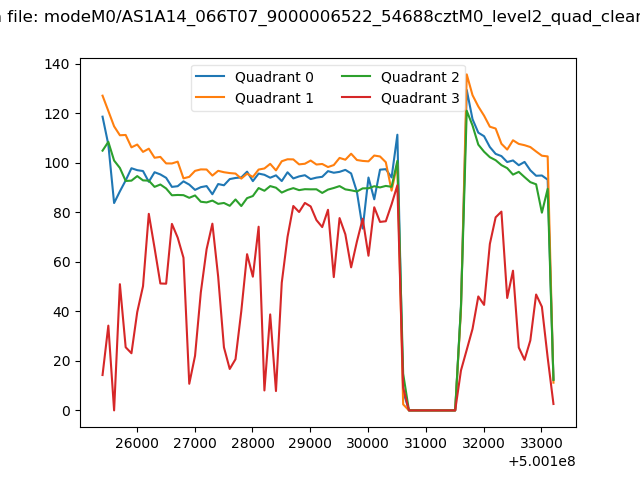

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

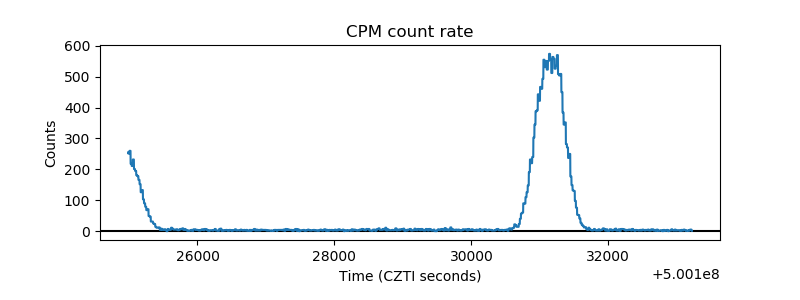

| _CPM_Rate |  |

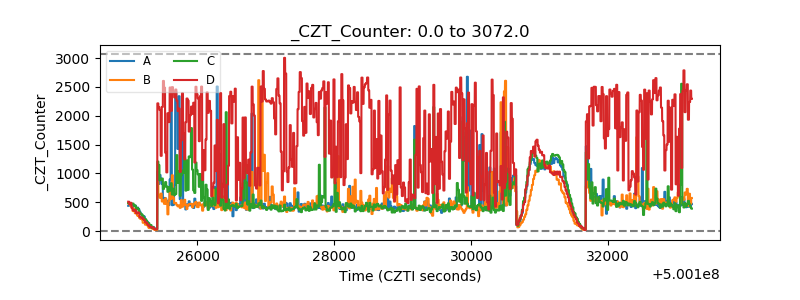

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

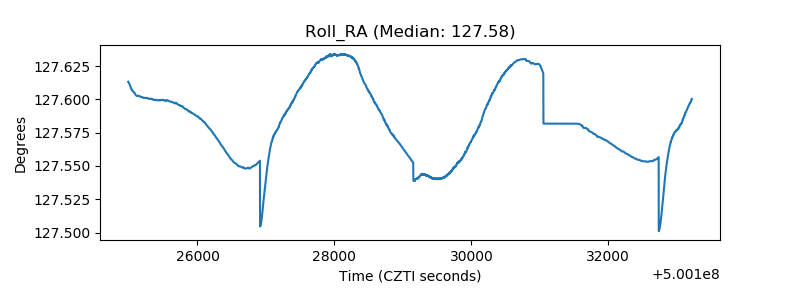

| _Roll_RA |  |

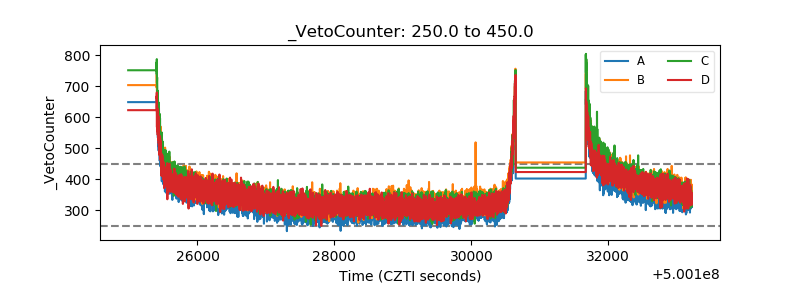

| Veto Counter |  |
